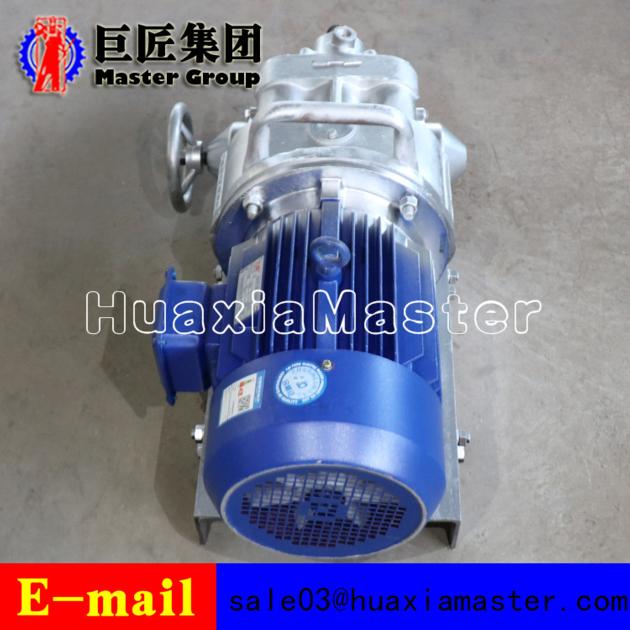

KHYD110 5.5KW Electric Motor Rock Drilling Rig
Price: | US$ 4000 |
---|---|
Minimum Order: | 1 set |
Payment Terms: | tt, lc |
Port of Export: | qingdao |
Product Details
Model No.: | khyd-110 | Brand Name: | Master Machinery |
---|
Certification: | iso-9001 |
---|---|
Specification: |
Model Unit KHYD110 Rated output power of motor kw 5.5 Rated voltage of motor v 380/660 Rated frequency of motor hz 50 Rated current of motor a 11.6 Motor speed r/min 1440 Motor phase number three phase communication Rated working mode continuity Drilling speed mm/min 280 Speed of return m/min Borehole diameter mm 42-80(rock) Hardness range protodikonov`s scale of hardness f<10 Maximum drilling depth m 20(rock) Weight of drilling rig (excluding runways, drill pipes, drills) kg 110 Dimension (length * width * height) mm 950*460*430 |
Packaging & Delivery
Packaging: | wooden box |
---|---|
Delivery/Lead Time: | 3 days |
Production Capacity: | 100 sets per month |
Product Description
Key words: portable rock drilling rig,hard rock drilling rig,core drilling rig for hard rock,mine rock drilling rig ,electric drilling rig 1.The brief introductions of KHYD110 rock drilling rig

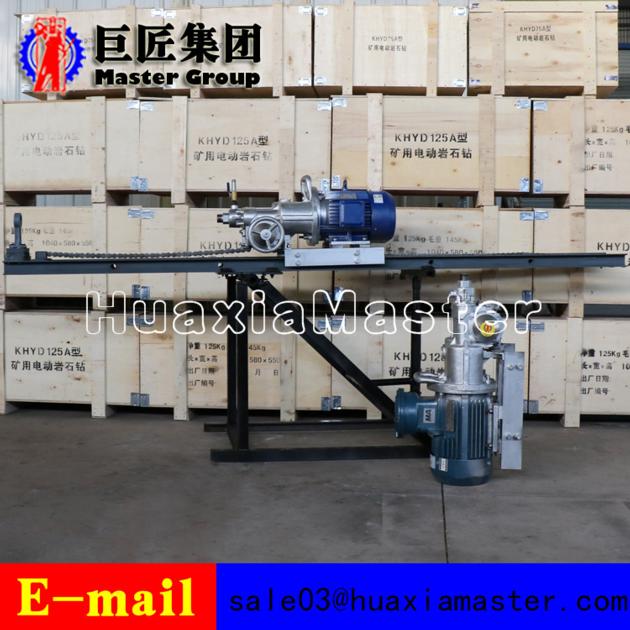

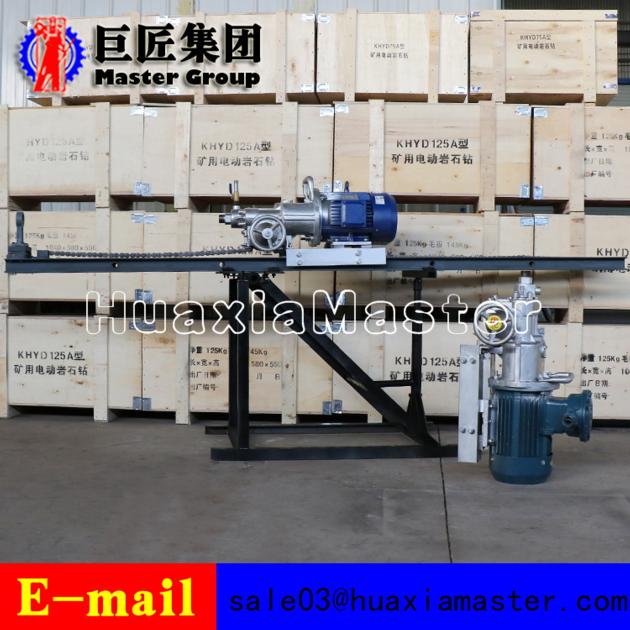

The machine can be fitted with drill stand, and can be drilled horizontally or upward in any direction.

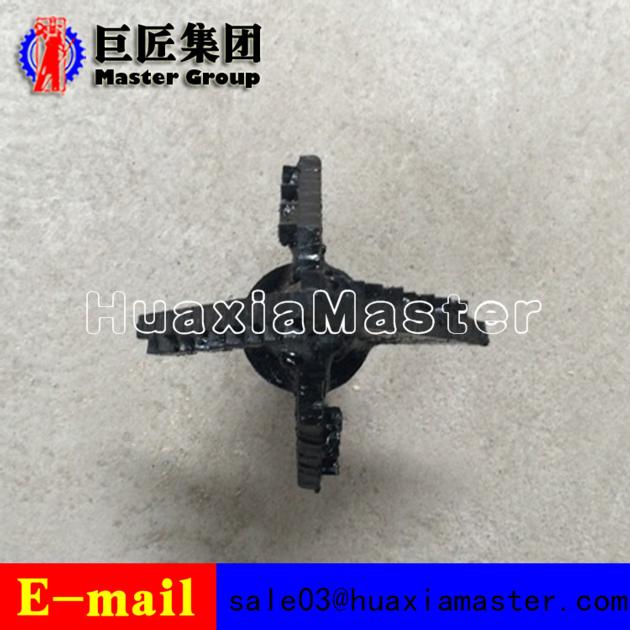

In order to prolong the service life of the drill bit and improve the working conditions of the operator, wet drilled water can be used to discharge the powder and screw blade drills can also be used for dry draining.
In the operation of drilling rig, we only need to operate the handwheel, and the drilling rig can advance itself and return quickly.
