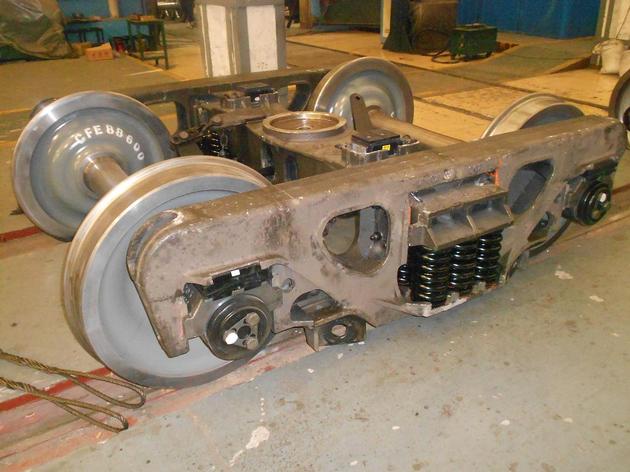

K4 railway bogie
| Price: | US$ 10000 / Set |
|---|---|
| Minimum Order: | 50 |
| Payment Terms: | L/C ,T/T |
| Port of Export: | Tianjin |
Product Details
| Model No.: | Brand Name: | CRRC taiyuan |
|---|
| Certification: | IRIS ,ISO9001 |
|---|---|
| Specification: |
Principal technical parameters:
Deadweight/t 4.15 Axle load/t 21 Design speed /km/h 120 leverage ratio 6.48 load on center plate /t 37.6 rigid wheelbase /mm 1750 side bearing center distance /mm 1520 free height of center plate /mm 705 static spring deflection for empty/loaded cars /mm 18.5/63 minimum radius of curvature negotiable /m 100 |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 2 months |
| Production Capacity: | 8000/year |
Product Description
The k4 railway bogies are produced under the cooperation between Zhuzhou Wagon Works and ABC-NACO who took swing-type bogies as prototype. The new bogies have such features as three-pieced cast structure, bolster spring for secondary level suspension and swinging mechanism for primary suspension, and two leveled longitudinal and horizontal rigidity, improving a great deal horizontal flexibility of the vehicle, minimizing wearing-down between wheels and tracks, and elevating operation quality.
|
