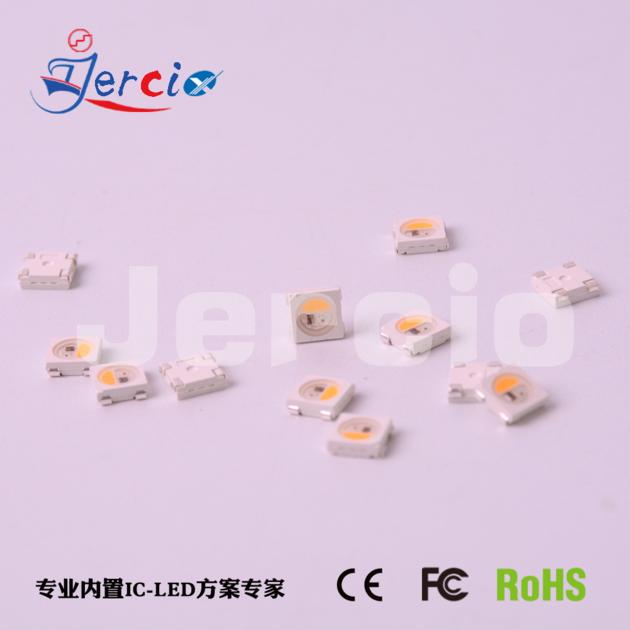

Jercio sk6812-RGBW four color in one smd led

Price:	US$ 55.58 / Bag
Minimum Order:	1000
Payment Terms:	T/T
Port of Export:	Shenzhen

Product Details

Model No.:	sk6812-rgbw smd led	Brand Name:	Jercio

Certification:	ce,rohs,fcc
Specification:	SK6812-RGBW is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN.

Certification:

ce,rohs,fcc

Specification:

SK6812-RGBW is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels.
The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.
The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels.
The pixel is reset after the end of DIN.

Packaging & Delivery

Packaging:	1000pcs/bag.
Delivery/Lead Time:	3-5 days
Production Capacity:

Product Description

2. Main Application Field:

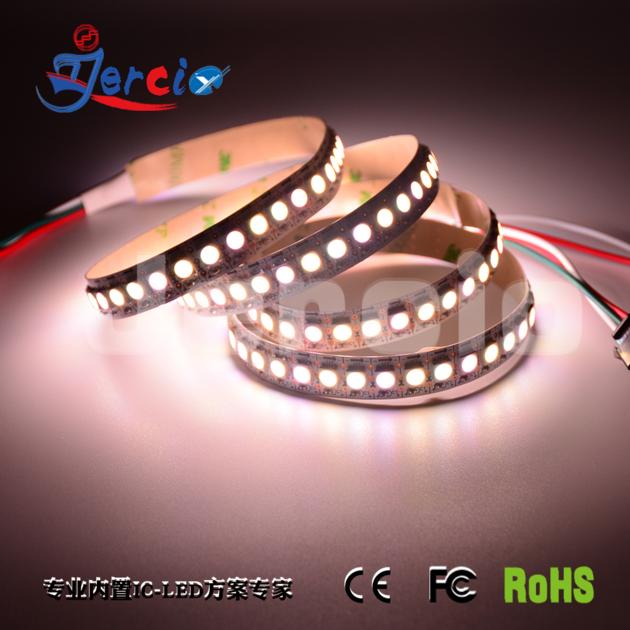

●Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube, LED appearance / scene lighting

● LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment etc..

3. Description:

●Top SMD internal integrated high quality external control line serial cascade constant current IC;

●control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;

●built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;

●The built-in power on reset and reset circuit, the power does not work;
●gray level adjusting circuit (256 level gray scale adjustable);

●red drive special treatment, color balance;

●line data transmission;

●plastic forward strengthening technology, the transmission distance between two points over 10M;

●Using a typical data transmission frequency of 800 K bps, when the refresh rate of 30 frames per sec
