Jercio WS2813 break-point continue smd led

Price:	US$ 55.58 / Bag
Minimum Order:	1000
Payment Terms:	T/T
Port of Export:	Shenzhen

Product Details

Model No.:	ws2813	Brand Name:	Jercio Technology

Certification:	ce,rohs,fcc
Specification:	General description WS2813 is an intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. Its internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 5V voltage programmable constant current control part, which achieves highly consistent color effect. Dual-signal wires version, signal break-point continuous transmission. Any pixel’s failure won't affect signal transfer and total emitting effect. The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel, the signal to reduce 24bit. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.

Certification:

ce,rohs,fcc

Specification:

General description

WS2813 is an intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. Its internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 5V voltage programmable constant current control part, which achieves highly consistent color effect.

Dual-signal wires version, signal break-point continuous transmission. Any pixel’s failure won't affect signal transfer and total emitting effect.

The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel, the signal to reduce 24bit. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.

Packaging & Delivery

Packaging:	1000pcs/bag.
Delivery/Lead Time:	3-5 days
Production Capacity:

Product Description

The BIN receives the data signal, and then compare the data with the DIN side after phagocytosis of 24bit data, if DIN do NOT receive the signal, then switching to BIN for receiving the input signal, which ensure that any the IC's damage does not affect the signal cascade transmission and make the BIN in state of receiving signal until restart after power-off.

Refresh Frequency updates to 2KHz, Low Frame Frequency and no Flicker appear in HD Video Camera.
RESET time>280μs, it won’t cause wrong reset while interruption, it supports the lower frequency and inexpensive MCU.
Integrated circuit chips enable the circuit control simpler, neater and more reliable while NO extra components needed.

shenzhen Jercio technology Co., Ltd. is a leading LED package and LED application products as one of the integrated opto-electronic high-tech enterprises. With efficient and accurate production, R & D and testing equipment, advanced production management technology. Our company began R&D built-in IC drive program beads after years of research and production from 2011, now our company has a mautre production technology, and has begun to mass production in 2012. The company covers an area of about 1500 square meters, which has a tem of 4 R&D personnel,10 production personnel , 8 marketing staff.Enterprise equipped with a complete range of all kinds of fully automated equipment and equipment. Full automatic solid crystal machine 2 sets,1 imported machine and so on instruments.

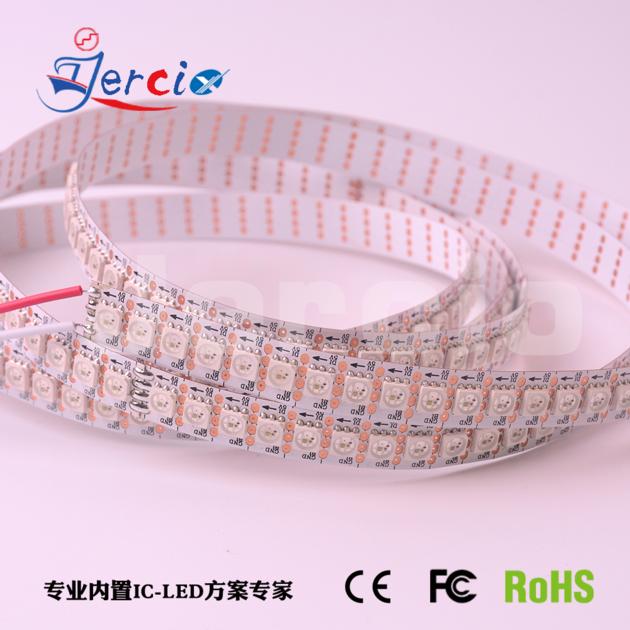

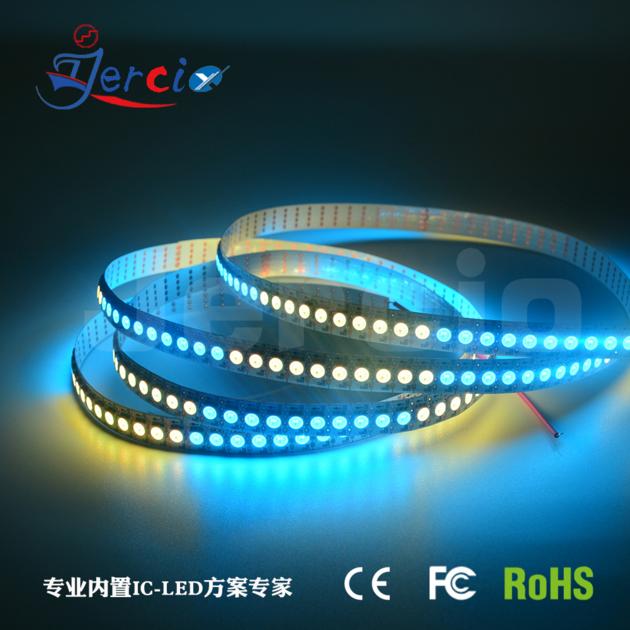

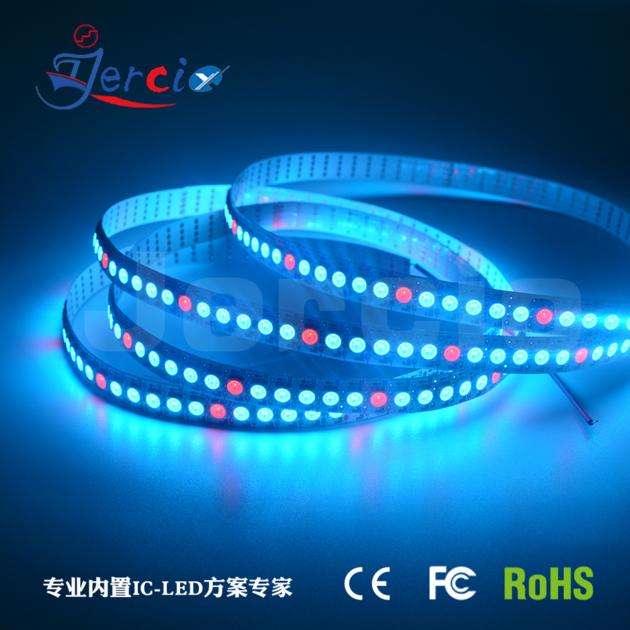

And our main product have three type: Individually addressable smd led( like SK6812, WS2812B, SK6805-2427, SK9822, WS2813etc), Magic digital led strip( general specification have 30leds/m, 60leds/m, 96leds/m ,144leds/m, ), and LED controller( like RF-14key, IR-21keys, bluetooth APP controller this MCU controller, also have T-1000S , T-4000,T-8000S, this program controller), In additional, we can help customer to customize some led light project( like light shoe, like light glass, like light shirt, DIY LED board etc). Because of our product, individually addressable smd led, which is intelligent and can use PWM controller, so here have a lot of led project can use it. Just have a said, no something you can't do, just something can't imagine.

If you have interesitng for it, please contact me:*
Skype: Jercio LED
Whatsapp:+86-13530747106
Official website:*/en
