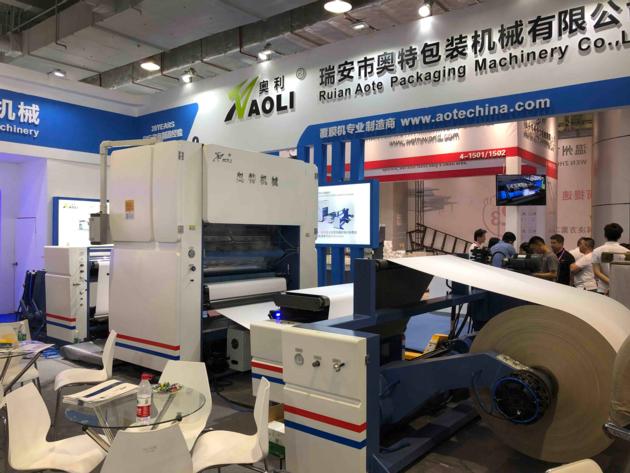

JTFM-1100/1300 automatic vertical roll to roll laminating machine

JTFM-1100/1300 fully automatic vertical Roll to Roll lamination machine is designed for waterbased glue and thermal Roll to Roll lamination multi-functions. It is our latest product, features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, touch screen easy to operate. It can realize the whole line automation of unwinding, lamination and winding.
Configuration & Functions:
1. Automatic High Speed Unwinder: Adopt shaftless clamping, hydraulic lifting structure, tension controlled by air brake automatically/manually. Max. Unwinding diameter up to 1300mm.

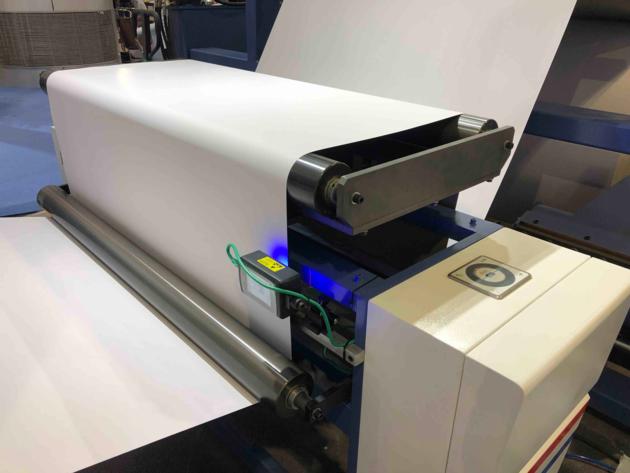

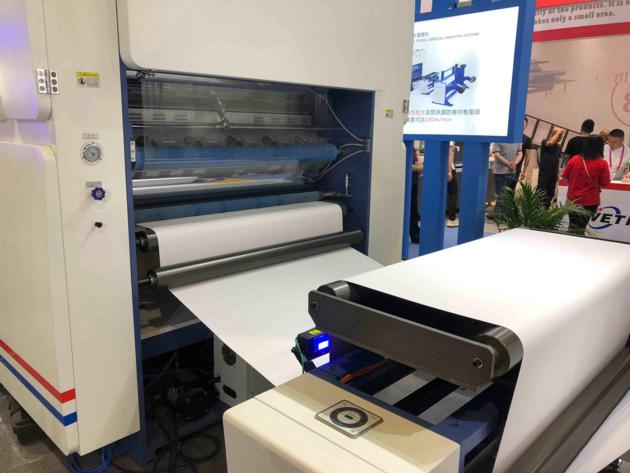

2. High Accuracy Edge/Line Correction System: Equipped with Ultrasonic Edge Correction Sensor and upmarket Edge/line Position Controller, Photoelectric Tracking/ Stroke ¯75mm, which can keep the edge of roller aligned when unwinding and winding.
3. Automatic Shutdown Protection System: Equipped with photoelectrically controlled automatic shutdown protection devices, in case of paper shortage, paper broken and paper jammed.

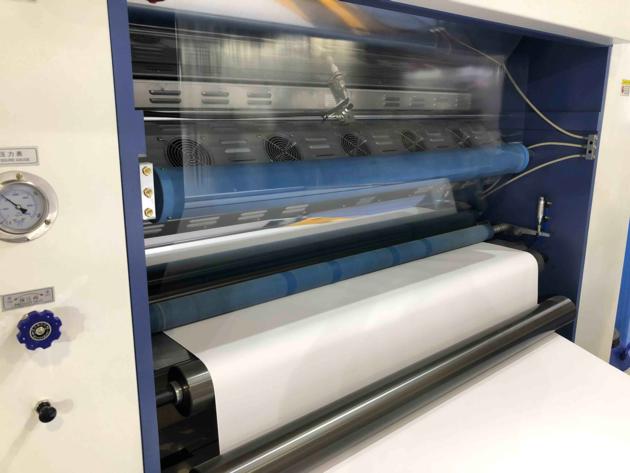

4. Drying And Heating System:The 800mm diameter large heating roller equipped with Electromagnetic Heating Device, at the same time supported with Built-in Oil Conduction Heating System and Hot Air Cycle System, can realize high speed booting and heating in 5~10 minutes, 2 times than traditional heating device meanwhile save much power consumption.
5. Automatic Hydraulic System: The hydraulic system automatically provides stable and large pressure to ensure high quality of lamination.
6. Man-machine Interface System:Equipped with 10 inch color touch screen, easy and convenient to operate. The operator can view the machine's working status at any time from the touch screen.

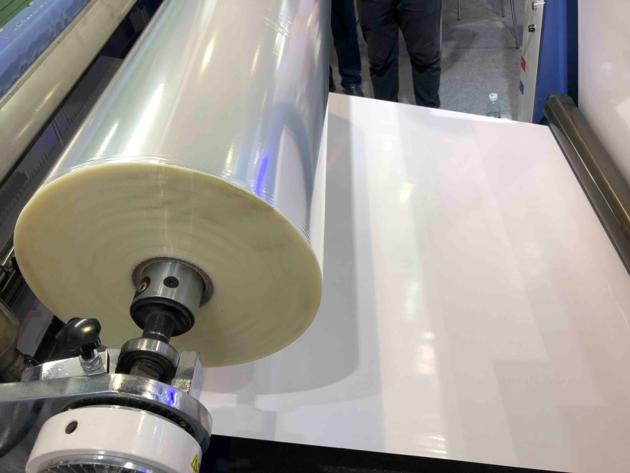

7. Air Shaft and Tension Control System:Adopt air shaft, easy to load film, and paper roll, accurate position by the graduation of the air shaft. At the same time the intelligent tention system easy to control the tention of film and paper, increase laminating performance.
8. Rewinding System: AC vector frequency conversion control, matched with unwinding system, the paper roll lift is driven by double hydro-cylinder with torque adjustment system. Mirror pressing roller ensures that the paper roll is rewound tightly. Max. Unwinding diameter up to 1300mm.
