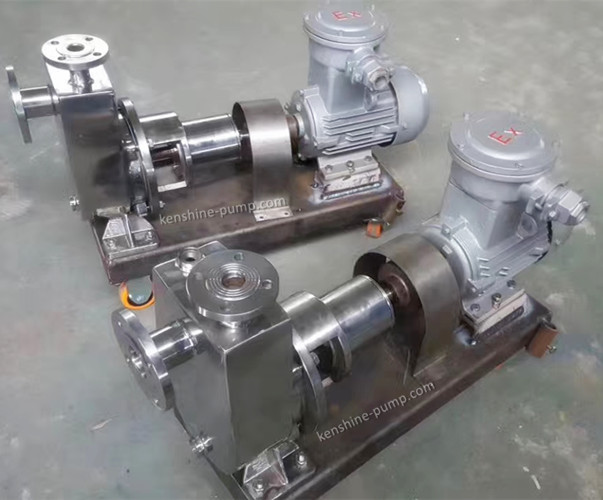

JMZ,FMZ Stainless steel self priming pump

JMZ mobile self priming pump adopts new mechanical seal assembly, safe and explosion-proof, no leakage for a long time. JMZ mobile self priming pump is suitable for conveying all kinds of wine, beverage, dairy, pharmaceutical, gasoline, solvent oil, syrup etc at the temperature from -35 to 120 degree Celsius. This pump has the characteristics of compact structure, easy operation, small volume, light weight, stable performance, no bottom valve, no filling water when starting etc. This pump can be used to transport concentrated slurry, acid, alkali, salt and other liquids after replacing 3-4 parts.

The pump performance range: flow of 3m3/h-200m3/h, head of 15m-60m, diameter of 25mm-2000mm

Technical sheet:

Model Inlet(mm) outlet(mm) Flow rate(m3/h) Head(m) Suction height(m) Speed(rpm)
25JMZ-22 25 25 3 22 5 2900
25JMZ-30 25 25 3 30 6 2900
40JMZ-22 40 25 6 22 5 2900
40JMZ-30 40 25 6 30 6 2900
40JMZ-40 40 25 6 40 6 2900
50JMZ-22 50 40 12 22 5 2900
50JMZ-30T 50 50 20 30 6 2900
50JMZ-40 50 40 12 40 6 2900
65JMZ-22 65 50 24 22 5 2900
65JMZ-30T 65 65 30 30 6 2900
80JMZ-22 80 65 48 22 5 2900
80JMZ-30 80 65 48 30 6 2900
100JMZ-22 100 80 80 22 5 2900
100JMZ-30 100 80 100 30 5 2900
150JMZ-22 150 125 160 22 5 2900
150JMZ-30 150 125 160 30 5 2900
200JMZ-22 200 150 200 22 5 1450
200JMZ-30 200 150 200 30 5 1450
