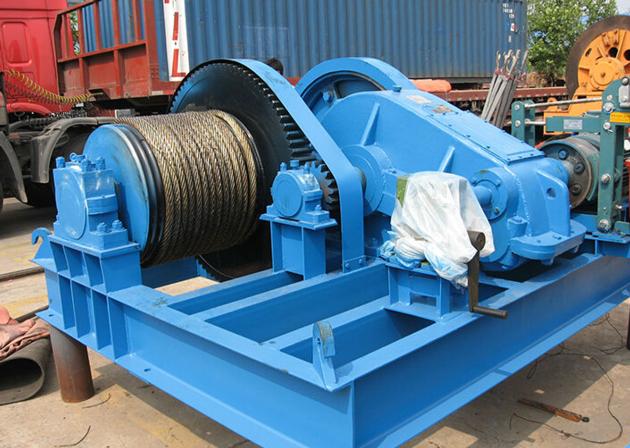

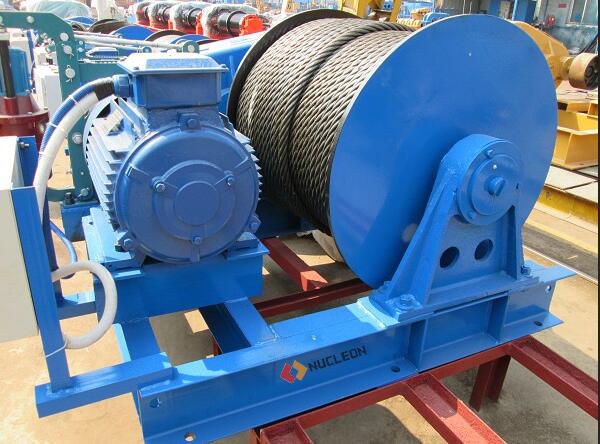

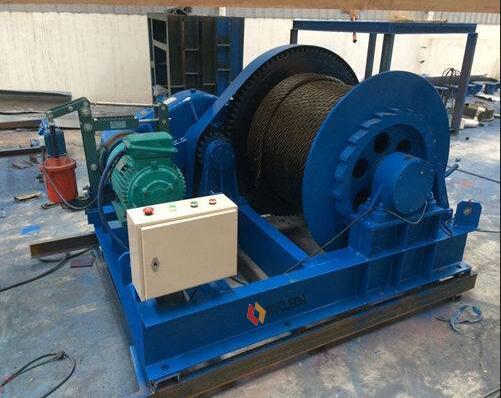

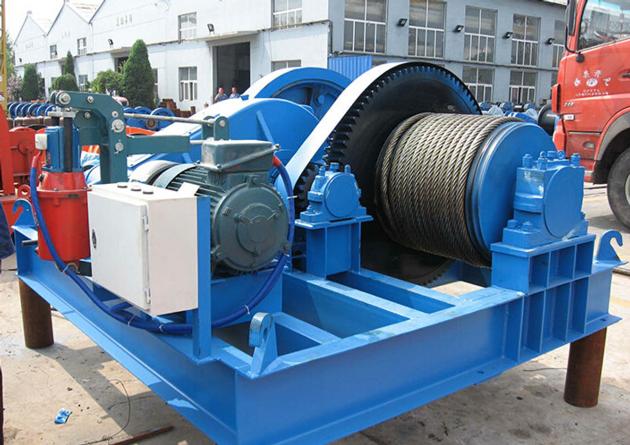

JK Model lifting construction material electric hoist winch

Introduction:

Electric winch is powered by motor. The power is input into the third level enclosed gear reduction box by flexible coupling to lift weight or pull by wire rope and to drive the drum from Low speed shaft end steel key. We use common motor when we need to lift or pull small weight. Conversely, lifting motor is adapted. The common motor can start directly. But the lifting motor starts slowly and stably by cam switch and resistanceadjusting.The brake system adopts electromagneticbraking or hydraulic braking.

Features:

1.High versatility

2.Compactstructure

3.Smallvolume, lightweight, convenience in using and transferring

4.Driving stably

5.Very light noise

6.With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.

7.Adjustable lifting or pulling speed for different usage environment.

8.This kind of electric wire rope winch can be applied to the lifting or pulling operating in construction water conservancy, forestry, mining and quay places etc…

Classification of Electric hoist winch

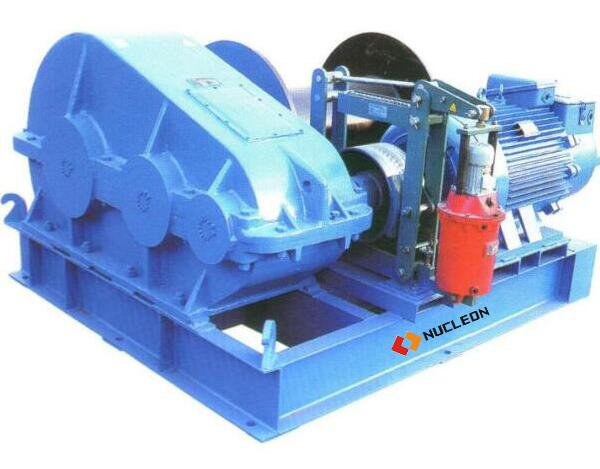

JM series: The winch below 10t is mainly used for hoisting, pulling and loading as well as drawing heavy weights. It is also used for all kinds of large and middle concrete constructure of steel, installation, and disassembly of mechanical equipment. It is suitable for construction and installation companies, mineral zone and plant. The winch equal or above 10t is mostly used for large and oversize concrete constructure of steel installation and disassembly of mechanical equipment. Orderly arrangement of the wire rope and safe lifting makes it suitable for kinds of bridge engineering, large factories, mine engineering equipment installation.

JK series: The winch is mainly used for material lifting, heavy weights traction. It is also used for crane as the main hoist. It is the special winch of derrick and gantry frame and lifting trolley. It is suitable for construction and small equipment installation of construction, mine and factory.

JMM series: The series winch is mainly used for long-distance traction of all kinds of large and super concrete and steel structure and steel cable as well as lift of large construction. Orderly arrangement of the wire rope and safe lifting makes it suitable for kinds of bridge engineering, large factories, mine engineering equipment installation.

JK-D series: This winch, with small teeth difference, has compact and small structure, smooth running, convenient and easy maintenance, low noise and a long service life. It is widely used for construction, lift and installation of port, bridge and metallurgy.

JKL series: This series of winch is mostly used for vertically lifting heavy weights in construction site, factories and mines, and ports, especially in bridge dock construction base engineering free-fall punching piling operation.
