JD-2600A Auto Lensmeter

GD02001

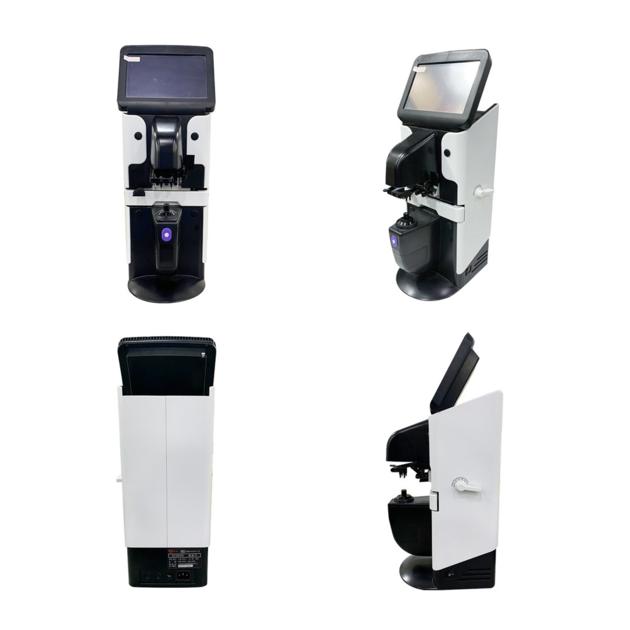

Auto Lensmeter
Model No.: JD-2600A

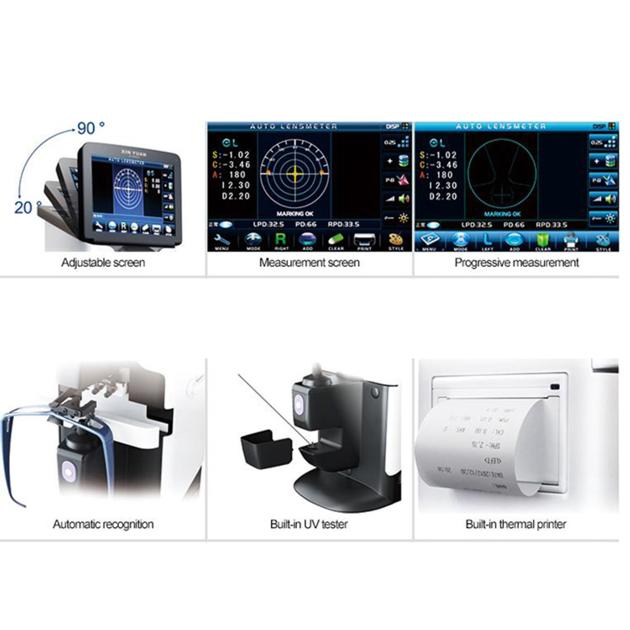

Features:

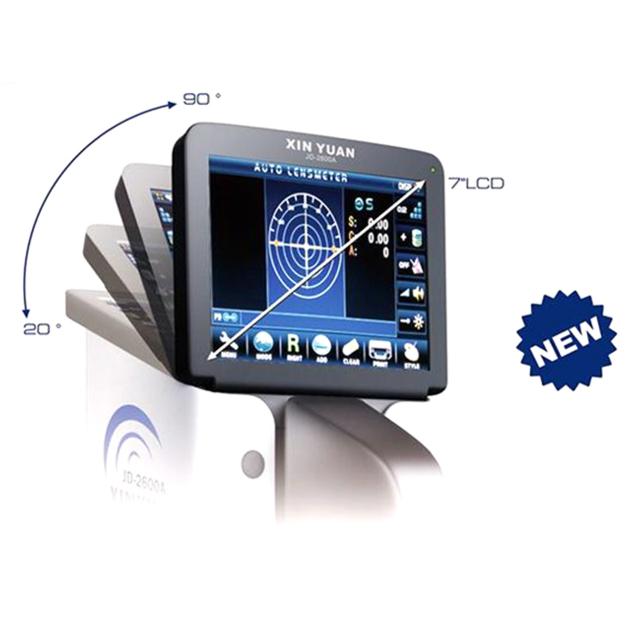

1. Adjustable LCD Display Screen: Tilt color screen provides you with clear view from any position such as sitting and standing;
2. Sensitive touch LCD display Screen: You just touch the screen to finish measurement, the operation could be easier an d more convenient.
3. Hartmann Sensor technology: The new generation auto lensmeter is based on Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.
4. Measurement Screen: Easy to use with recognizable icons. The JD-2600A provides a user-friendly Graphical interface for an immediate Understanding.
5. Progressive measurement: A graph helps the operator to improve Accuary and speed in the measurement Of near and far vision
6. Built-in Thermal Printer: Quick data print with built-in printer. Easy to reload printing paper.

Specifications:
Range of measurement
Sphere : 0~ ¯25m-1, 0.01/0.12/0.25 m-1 step
Cylinder : 0~ -9.99 m-1 0.01/0.12/0.25 m-1 step
Axis : 0®-180 ® (1 ® step)
Add : 0-9.99 m-1 0.01/0.12/0.25 m-1 step
Prism degree : 0-15 Δ 0.01/0.12/0.25 m-1step.
Measurement mode
Cylinder mode : +, +/-, –
Prism : X-Y, P-B
Contact Lens : soft/hard
Measuring mode : Single/progressive/automatic recognition
Specifications
PD : 40-90mm, 0.5mm step
Diameter of lens : 20-108mm
Speed of measurement : 0.1s
Display : JD-2600A: 7'' TFT LCD;
Printer : Thermal Printer
Power Supply : 100-240V, 50-60HZ
Dimensions : 222* 161* 372mm(W×D×H)
Weight : 5..5KG
