JARCH 13mm Thickness Disc Slip Ring Connector electrical slip ring
| Price: | US$ 100 / Piece |
|---|---|
| Minimum Order: | 2 |
| Payment Terms: | EXW |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | JSR-PS013-3P40-1S | Brand Name: | JARCH |
|---|
| Certification: | CE,FCC,ROHS |
|---|---|
| Specification: |
Specifications of 13mm Thickness Disc Slip Ring Connector Operating Speed 250 rpm Number of Circuits 6 Voltage 240 VAC/DC Current Rating 10A per circuit Temperature Range -20®Cto +80®C Contact Material Gold to Gold Lead Size 22# silver plated copper Lead Length Standard 250 mm(9.843inch) Dielectric Strength ≥500 VAC @50Hz, between each circuit Insulation Resistance 100 MΩ @ 500 VDC Electrical Noise 5mΩMin |
Packaging & Delivery
| Packaging: | Gift box or custom packing 13mm Thickness Disc Slip Ring Connector electrical slip ring |
|---|---|
| Delivery/Lead Time: | 15 |
| Production Capacity: | 1000 |
Product Description

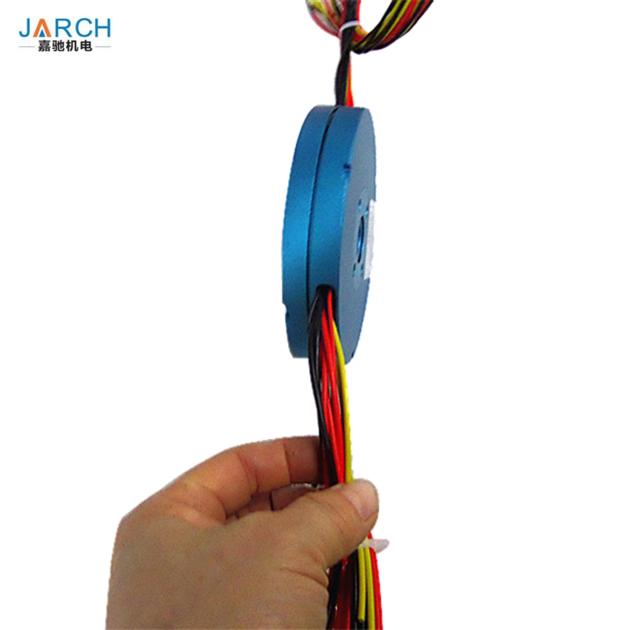

13mm Thickness Disc Slip Ring Connector Disc type conductive slip ring
One end of the piece is connected to the stator, the other end of the bullet is connected with the rotor, and the stator and the rotor are provided with an installation hole to install the disc slide ring on the use device, and the rotor is welded with a wire. The disc type conductive slip ring is specially designed for a highly restricted rotating system in the vertical direction. Its copper rings and brushes are connected around a central hole, which greatly saves the height of the space. Customers can choose suitable slip rings for mechanical equipment installation according to the overall structure and different design of the slip ring.
