J hook suspension clamp for self supported twisted conductors

Quick detail

Place of Origin Zhejiang, China Brand Name CROP
Model Number J hook suspension clamp Product name J hook suspension clamp for self supported twisted conductors
Sample Free Material Rubber,galvanized steel
Company website * Quality Prime
Installation Quick Certifications ISO9001
OEM Acceptable Export All over the world
Business Type Manufacturer
More detail,please visit our company website: *

Contact information:

Ada Wang


Suspension clamp with neoprene insert for ADSS cable
Description of J hook suspension clamp

J hook suspension clamp / Suspension clamp are designed to provide a suspension for 5 to 20mm aerial ADSS cables at intermediate poles on cable routes with angle < 20® on access networks (spans up to 100m).

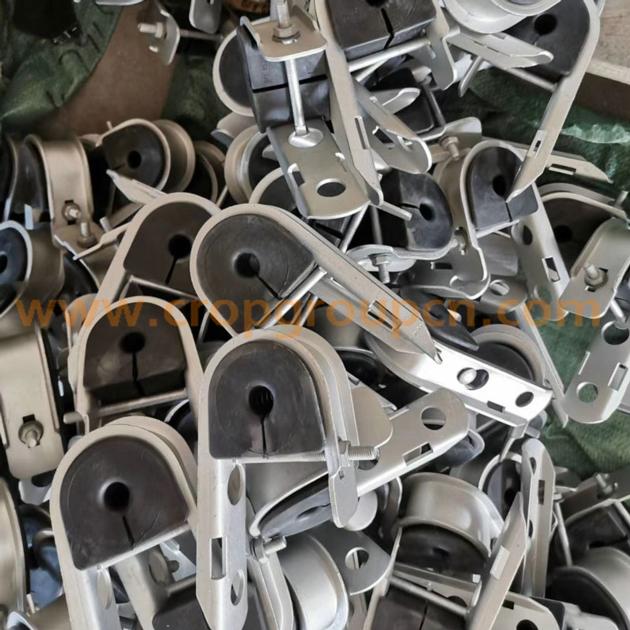

The suspension clamp J hook consist with J hook,screw and sleeve.

Material of suspension clamp
J hook made of galvanized steel

The sleeve made of neoprene

The screw made of protected steel

Feature of suspension clamp with J hook
1.Two sizes to cover the full range of ADSS cables from 5 to 20mm.

2.The shape of the J hook suspension clamp allows a running out of the cable directly in the hook.

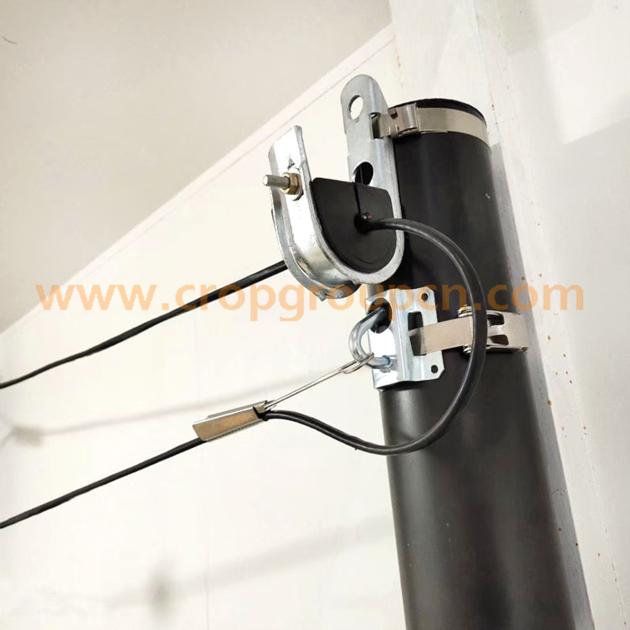

3.The suspension clamps can be directly secured to the poles using bolts or bandings.

4.Hook clamps also can be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations.

Product Code Cable size
(mm) Strength (kN) Matreials
HC5-8 5-8 4 Galvanized stell,
UV resistant plastic
HC8-12 8-12 4
HC10-15 10-15 4
HC15-20 15-20 4
