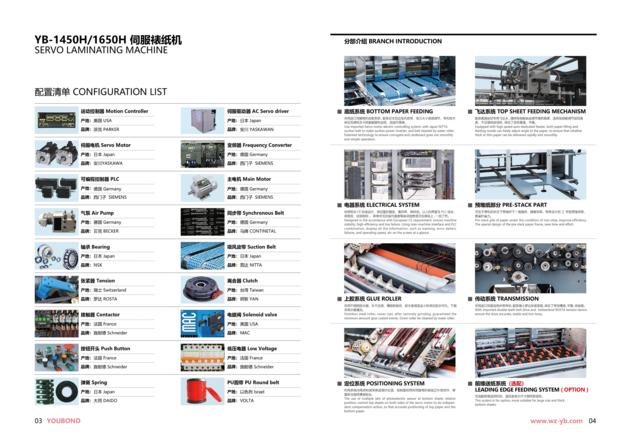

Intelligent High Speed Laminating Machine YB-1650H
| Price: | US$ 73,500.00 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | 30%deposit 70%before delivery |
| Port of Export: | NINGBO |
Product Details
| Model No.: | YB-1650H | Brand Name: | YOUBOND |
|---|
| Certification: | CE |
|---|---|
| Specification: |
model YB-1650H
Max sheet size 1650×1650mm Min sheet size 400×400mm Top paper thickness 120-500g Precision for front and back ê1mm Air Consumption 0.2m3/min Overall 15.7×2.6×2.4M Machine power 25KW Bottom paper A、B、C、E、F、G Corrugated paper Four Layers Corrugated paper: AB/BB/BC/EE Cardboard paper is above the 300GSM |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 50 days after deposit |
| Production Capacity: |
Product Description
This machine adopted with motion control system and servo correction system perfect combination, using multiple sets of photoelectric sensor at the end of the paper the relative position, control top paper on both sides of the servo motor independent drive compensation action, top paper and bottom paper precise positioning. Servo laminating machine has the advantages of simple operation, only need to input the size of paper can be completed automatically adjust the machine.
|
