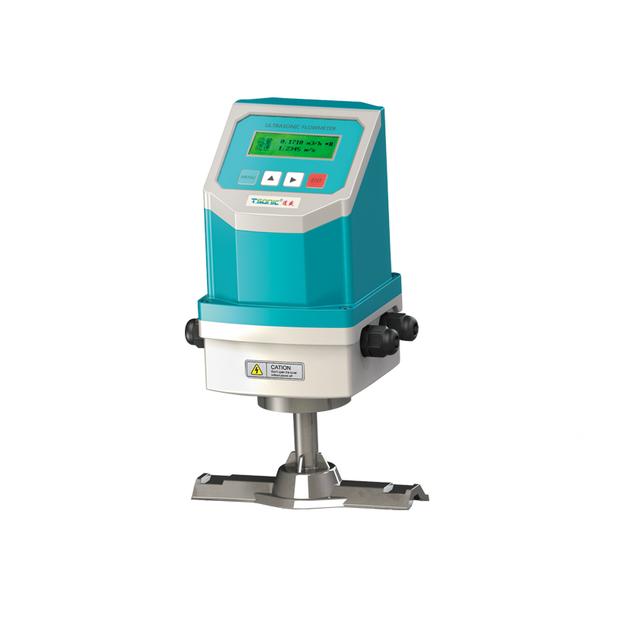

Integrated Type Digital Ultrasonic Water Flow Meter
| Price: | US$ 200.00 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | 100 T/T in advance, L/C |
| Port of Export: | Dalian |
Product Details
| Model No.: | TUF-2000F2 | Brand Name: | TSONIC |
|---|
| Certification: | ISO9001; CE |
|---|---|
| Specification: |
Principle & Parameters
Principle Transit-time Accuracy Flow meter: ¯0.5%; Heat meter: ¯2.0%. Output 4~20mA analog OCT pulse Relay Input 3 way 4~20mA analog input, acquisition signal of press and liquid level. Achieve heat measurement by connecting PT100 temperature sensors Interface RS485; MODBUS Pipe Material Steel, stainless steel, cast iron, copper, PVC, aluminum, etc. Caliber DN15mm~DN6000mm Straight Pipeline Upstream: 10D; Downstream: 5D; From the pump: 30D (D means outer diameter) Medium Single liquid that can conduct sound wave, such as water(-30℃~160℃). Velocity -12m/s~12m/s Special Cable Shielded twisted-pair cable, length≤50m. Temperature Main unit: -20℃~70℃; Transducers: -30℃~160℃ Protection Class IP68 Power Supply DC24V； AC85~264V; 50Hz Consumption 1.5W Add: The South Industrial Park,Tangligou, Hongqi Street , Ganjingzi District, Dalian , China. Email: sales01(at)tuf-2000.com Skype: taosonics01(at)outlook.com Tel: +86-411-84179922 HP: 180 0426 1213 Fax:+86-411-84179900 */english */english/ |
Packaging & Delivery
| Packaging: | carton |
|---|---|
| Delivery/Lead Time: | Within 3 days upon receipt of payment |
| Production Capacity: | 30000 sets/year |
Product Description
Easy installation, no maintenance is needed.
Both intrusive and non-intrusive measurement can be achieved
High accuracy within ¯1%
High protection class: Main unit:IP67; Transducers:IP68
Multiple signal output: 4-20mA analog/OCT pulse/Relay/RS485
Achieve heat measurement by connecting 3-wired heat transducers PT100
|
