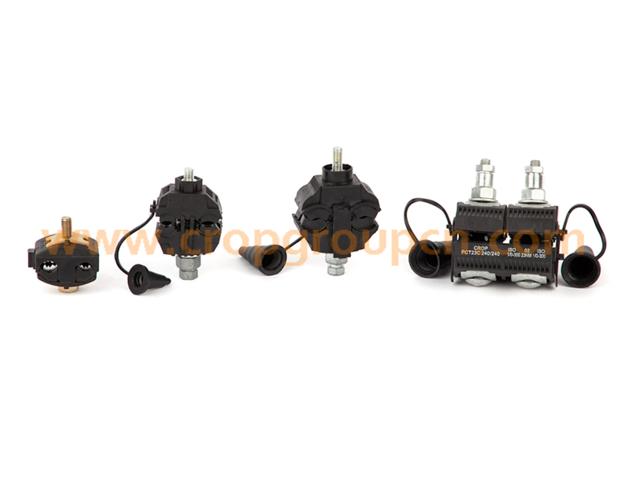

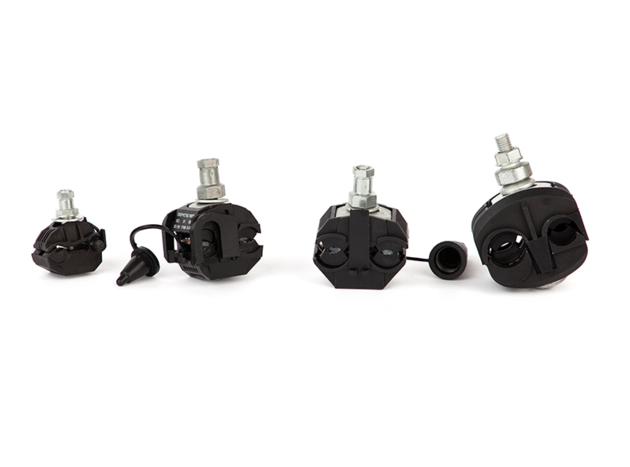

Insulation piercing connector IPC connector manufacturer

Price:	US$ 0.3 / Piece
Minimum Order:	100 piece
Payment Terms:	T/T,L/C
Port of Export:	Any port in China,Ningbo or Shanghai

Product Details

Model No.:	PCT13C	Brand Name:	CROP

Certification:	ISO 9001
Specification:	The waterproof insulation piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores.When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed (fuse nut). Stripping of insulation is avoided. Service condition: 400/600V, 50/60Hz, -10℃ to 55℃ Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020. Material: Body: Thermoplastic polyamide 66 with fiberglass Connecting bridge: Copper tinned , Brass tinned, Al Sealing parts: Flexible PVC End cap: Flexible PVC Grease: Silica gel Bolt: Hot dip galvanized steel, 8.8 grade Washer , Nut: Hot dip galvanized steel Fuse nut: Zinc alloy Features: • Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath • Potential free tightening bolts allow safe installations on life lines • Bimetallic,suitable for aluminium and copper conductors • Long neck 13 mm shear head nut ensuring reliable installations • Components not isolated , end cap attached to body • Insulation material made of weather and UV resistant glass fibre reinforced polymer

Certification:

ISO 9001

Specification:

The waterproof insulation piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores.When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed (fuse nut). Stripping of insulation is avoided.
Service condition: 400/600V, 50/60Hz, -10℃ to 55℃
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Material:

Body: Thermoplastic polyamide 66 with fiberglass
Connecting bridge: Copper tinned , Brass tinned, Al
Sealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip galvanized steel, 8.8 grade
Washer , Nut: Hot dip galvanized steel
Fuse nut: Zinc alloy

Features:

• Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic,suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not isolated , end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer

Packaging & Delivery

Packaging:	Carton and Pallet
Delivery/Lead Time:	7 days
Production Capacity:	1000000 piece/Month

Product Description

Quick detail

Place of Origin Zhejiang, China Brand Name CROP
Model Number Insulation piercing connector Product name insulation piercing connector IPC connector
Sample Free Material Plastic
Company website * Quality Prime
Installation Quick Certifications ISO9001
OEM Acceptable Export All over the world
Business Type Manufacturer

View File
More detail,please visit our company website: *

Contact information:

Ada Wang

Insulation Piercing Connector for Street Lighting

MODELS MAIN LINE
(MM2) SERVICE LINE
(MM2) BOLT NO. TORQUE REMARKS
PCT13C 95/10 6-95 1.5-10 1 10NM ISO to ISO
PCT13CB 95/10 (B)6-95 1.5-10 1 10NM ISO to Bare
PCT13C 120/10 6-120 1.5-10 1 10NM ISO to ISO
PCT13CB 120/10 (B)6-120 1.5-10 1 10NM ISO to Bare
Piercing Connector for Low Voltage Aerial Bundled Cables
MODELS MAIN LINE
(MM2) SERVICE LINE
(MM2) BOLT NO. TORQUE
(NM) REMARKS
PCT13C 70/35 16-70 4-35 1 15NM ISO to ISO
PCT13CB 70/35 16-70 (B)4-35 1 15NM ISO to Bare
PCT13C 95/50 16-95 4-50 1 17NM ISO to ISO
PCT13CB 95/50 16-95 (B)4-50 1 17NM ISO to Bare
PCT13C 120/25 25-120 6-25 1 17NM ISO to ISO
PCT13C 150/50 50-150 4-50 1 17NM ISO to ISO
PCT13C 185/35 50-185 6-35 1 17NM ISO to ISO
MODELS MAIN LINE
(MM2) SERVICE LINE
(MM2) BOLT NO. TORQUE
(NM) REMARKS
PCT13C 95/95 16-95 16-95 1 17-23NM ISO to ISO
PCT13CB 95/95 16-95 (B)16-95 1 23NM ISO to Bare
PCT13C 150/150 16-150 16-150 1 23NM ISO to ISO
PCT13CB 150/150 16-150 (B)16-150 1 23NM ISO to Bare
MODELS JBC-0 JBC-1 JBC-2 PCT23C 240-240
Main Line(mm2) 25-70 35-70 35-150 50-240
Service Line (mm2) 6-35 6-35 35-150 50-240
Bolt No. 1 1 1 2
Torque (Nm) 10NM 13NM 17NM 23NM
Remarks ISO to ISO ISO to ISO ISO to ISO ISO to ISO
MODELS EQUAL TO CODE MAIN LINE
(MM2) SERVICE LINE
(MM2) BOLT NO.
CRT041FJ TTD041FJ 6-35 1.5-10 1
CRT051FJ TTD051FJ 16-95 1.5-10 1
CRT101FJ TTD101FJ 6-50 2.5-35 2
CRT151FJ TTD151FJ 25-95 2.5-35 3
CRT201FJ TTD201FJ 35-95 25-95 4
CRT251FJ TTD251FJ 50-150 25-95 5
CRT271FJ TTD271FJ 35-120 35-120 6
CRT281FJ TTD281FJ 50-185 2.5-35 7
CRT401FJ TTD401FJ 50-185 50-150 2
CRT431FJ TTD431FJ 70-240 16-95 2
CRT441FJ TTD441FJ 95-240 50-150 2
CRT451FJ TTD451FJ 95-240 95-240 2
CRT551FJ TTD551FJ 120-400 95-240 2
