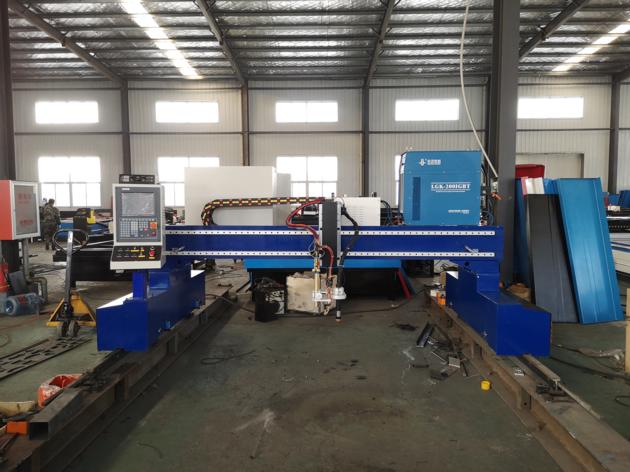

Industrial Gantry type CNC plasma cutting machine with flame/gas torch

Industrial Gantry type CNC plasma cutting machine with flame/gas torch is designed for sheet metal and tube fabrication. This industrial plasma cutter has gantry structure with double-driving system, All equipped with reducer transmission mode, more powerful.
Its working size can be customized upon requirements. It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2D graphics.. Plasma cutting for 0-30mm iron/steel, flame/gas cutting for 10-200mm iron/steel.

Features of Industrial Gantry type CNC plasma cutting machine:
1. Two cutting ways optional: plasma cutting and (gas) flame cutting.
2. It can be applied to thick metal materials or non-ferrous metal cutting of enterprises. 0-200mm cutting.
3. Flexible, easy to operate, can moves can be cut, Using USB Flash Drive reading procedure and timely upgrade any time, and do not occupy fixed sites.
4. This machine uses 200A HUAYUAN water-cooled power supply, and its cooling effect is much better than air cooling.
5. STARFIRE control system, the file incision and export automatic correction , real-time tracking detection of plasma power in the process of cutting current. The control system uses the U-disk exchange processing document, easy to operate. English interface and other 5 languages:Russian, Spanish, French, Japanese, Czech, Slovak

Parameters of Industrial Gantry type CNC plasma cutting machine:
Model RB3000, RB4000
Effective Cutting Width (X axis) 2200mm, 3200mm
Effective Cutting Width (Y axis) 6000mm
Cross Beam Length 4000mm
Longitudinal Rail Length 7500mm
Cutting Speed 0-10000mm per minute
Plasma power 63A, 120A, 200A
Plasma Cutting Thickness 0-30mm
Gas/Flame Cutting Thickness 10-200mm
Drive Mode Bilateral drive
Cutting Mode Gas (flame) /plasma cut metal
Cutting Gas Acetylene/Propane
Plasma Air Only pressed Air
Plasma Air Pressure Max. 0.8Mpa
Cutting precision ¯0.5mm National standard JB/T10045.3-99
Working Temperature -10®C-60®C. Relative Humidity, 0-95%.

FAQ:
1. Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your plasma cutting machines running in order to keep your business running.
2. Q: I am not sure if this plasma cutting machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting thickness, then I will recommend you the most suitable machine for you.
3. Q: Are you factory or trading company?
A: We are factory, which manufactures CNC cutting machines , with 10 years experience in CNC machine’s industry.
4. Q:What other things also need after we bought your machines?
A:With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
5. Q:How can I do if the machine goes wrong?
A:If confronted with such problems, online service is offered, you could contact our sales. Also, we offer engineer delivery service .Please contact us ASAP and don’t try fix the machine by yourself or someone else. We will response within 12 hours as quick as we can to solve it for you.
