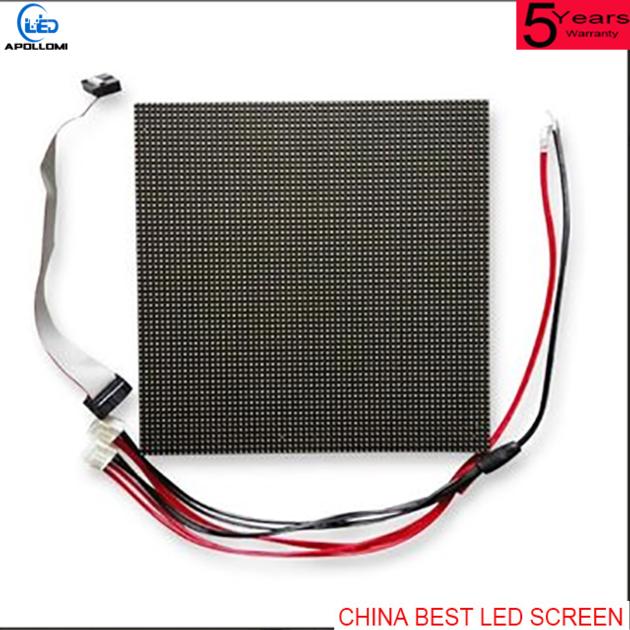

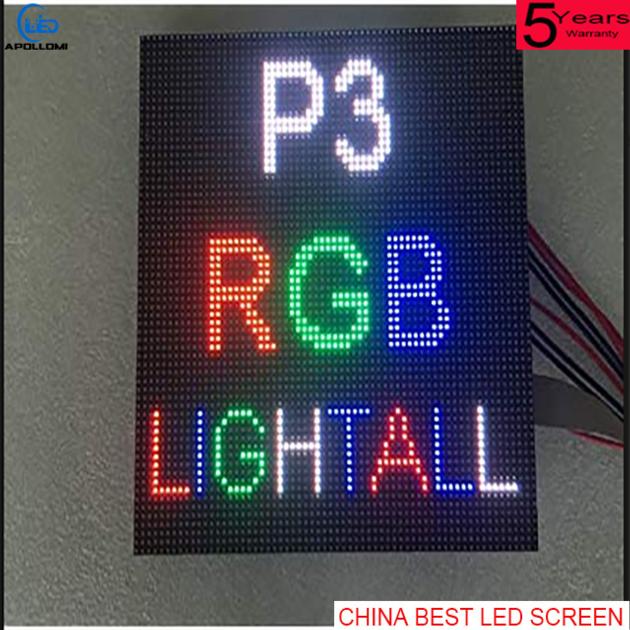

Indoor full color HD P3 Led video display
| Price: | US$ 950 / Square Meter |
|---|---|
| Minimum Order: | 3sqm |
| Payment Terms: | 40 TT down payment and full payment before shipmen |
| Port of Export: | Shenzhen,Shanghai |
Product Details
| Model No.: | module size:192*192mm | Brand Name: | led display |
|---|
| Certification: | CCC |
|---|---|
| Specification: | Indoor full color HD P3 Led video display |
Packaging & Delivery
| Packaging: | standard |
|---|---|
| Delivery/Lead Time: | 7-15 days |
| Production Capacity: | 100 SQM/day |
Product Description
Model: PH3mm
Pixel Pitch: 3mm
Pixel configuration: 3in1 (1R1G1B)
Module Size: 192*96mm/192*192mm/384*192mm
Module Resolution: 64dots(W) *32dots(H)/64dots(W) *64dots(H)
Module Thickness: 10 MM
Module Weight: 0.18 KG \ 0.35KG
Package LED mode: SMD2121
Max Power: 18W
Pixel Density: 111111 dots / SQM
Driving Method: Constant Current Driving
Scan Method: 1/16 or 1/32 scan
Interface Way: HUB75
Brightness: ≥ 1300CD /SQM
Cabinet Size: 576mm * 576mm (Customize)
Cabinet Composing: 9pcs
Power Supply Mode: 5V/40A(3pcs/cabinet)
Cabinet Resolution: 192dots * 192dots
Viewing Distance: 3-30M (according to the big screen size)
Optimal Viewing Angle: Horizontal angle: 160 degree;
Vertical angle: 120 degree
Environment Temperature: Storage: -40 degree ~ +85 degree
Work: -20 degree ~ +60 degree
Relative Humidity: 10% ~ 95%
Operating Voltage: AC:100V~120V AC:220~240V
Average Power: ≤ 120W/ SQM
Max Power Consumption: ≤ 360W/SQM
Computer: Pentium4 or above P4 or above
Operate System: Win98/2000/XP/Win 7/Win10
Control Mode: Synchronization with PC
Driving Device: IC Constant Current Driving
Refresh Rate: ≥ 2800Hz
Gray/Color: RGB each 256 grade, can display 16.7color
MTPF: ≥ 9000hours
Power Switch: Automatic Switch
Display Mode: 1920*1080\1024*768\1280*960
|
