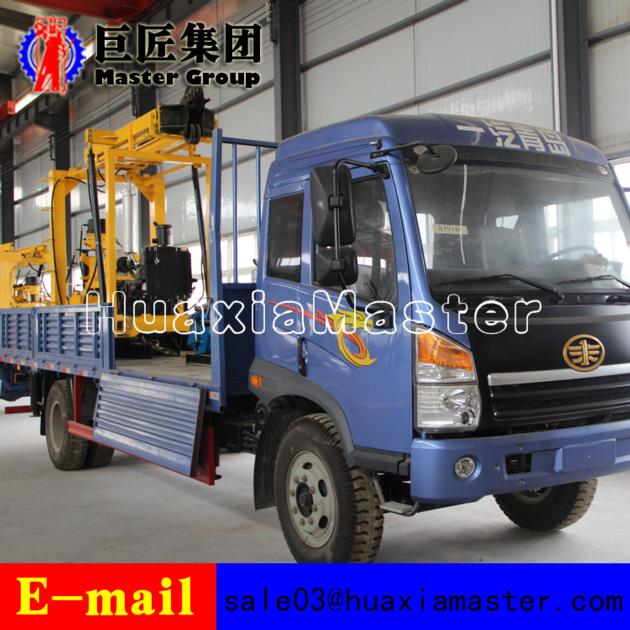

In Stock XYC-3 vehicle-mounted water well drilling rig For Sale
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xyc-3 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
XYC-3 water well drilling rig
Drilling depth 30-600 Drilling hole diameter 300-75 End hole diameter 75 Drilling angle 90-75 Vertical shaft forward rotary speed 30-1050 Vertical shaft reverse rotary speed 29-137 Vertical shaft stroke 600 Windlass lifting power (single rope) 3000 Windlass capability in terms of rope length 65 Lifting speed 0.3-1.9 Wire-rope diameter 12.5 Drilling tower height 7000 Effective drilling tower height 6500 Active drilling pipe 59*53、70*63、79*89 Drilling rod diameter 42/50/60 Drilling rig weight 3500 Engine model:Yunnei YN27 BW-250 mud pump rated flow (L/min) 250 rated power(mpa) 7 driving power(kw) 15 host weight(kg) 500 external dimension(mm) 1110*994*665 Chassis model qingdao liberation new cylon medium truck with 180hp 4X2 rail plate (CA1167PK2L2E4A80) driven-mode 4*2 engine model BF4M2012-16E4 emission standard GB3847-2005 GB17691-2005 rated power (kw) 121 rotary speed (r/min) 2200 External dimension (mm) 8998*2496*2900 |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: vehicle type drilling rig, portable drilling rig,
1.The features of XYC-3 water well drilling rig
XYC-3 vehicle driller for multi function hydraulic vertical shaft rotary drilling rig.

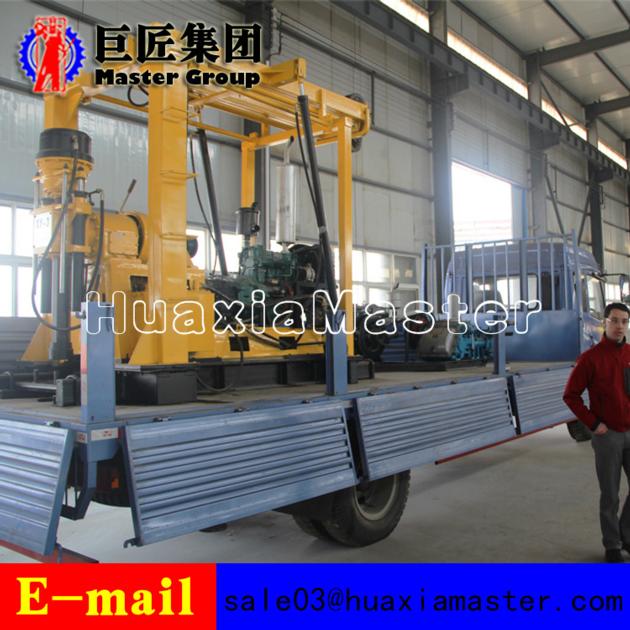

The car chassis adopts Qingdao liberation new Sai long Zhong card truck chassis, drilling rig transmission system and hoist, mud pump and other important accessories installed on the chassis. The layout is reasonable and compact, and the operation is simple.
The BW-250 slurry pump is equipped with high pressure and large flow, which ensures drilling depth and bore diameter.
The drilling machine self matching mobile device can realize the movement of the drill machine's own front and back, and it is convenient for the wellhead operation.
The rig tower hydraulic lifting type automatic Telescopic rigs, safe and convenient operation.
2.The applications of XYC-3 vehicle-mounted water well drilling rig
Made in China water well,field irrigation well, engineering water well,precipitation well and so on; geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting.
