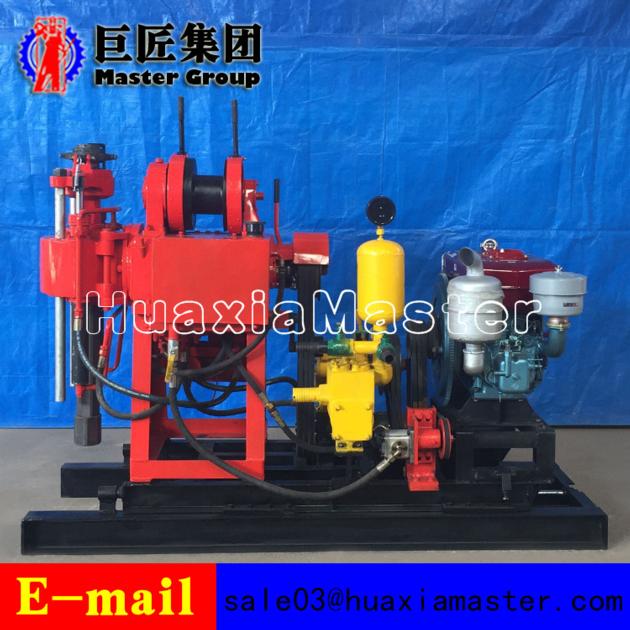

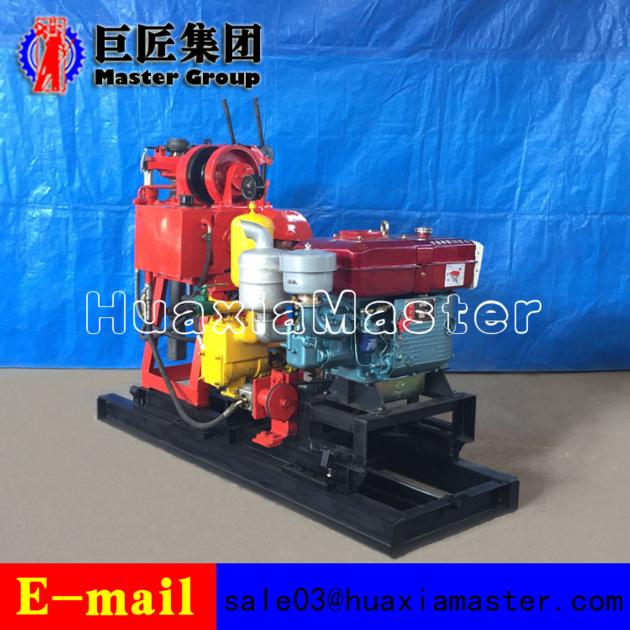

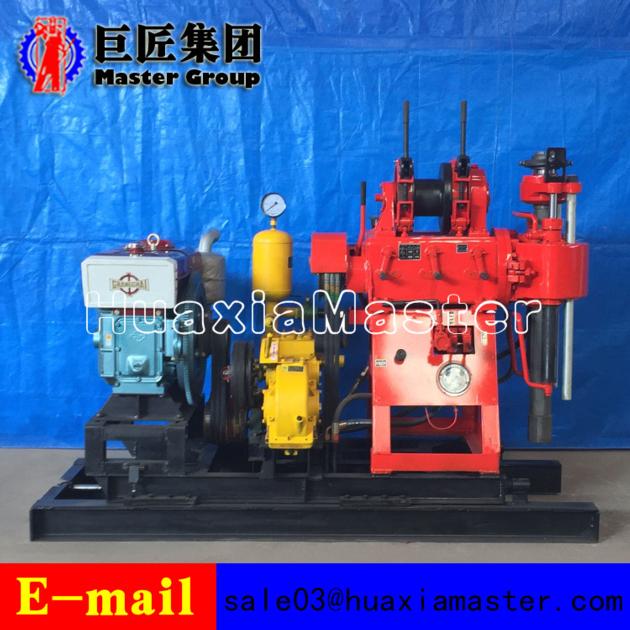

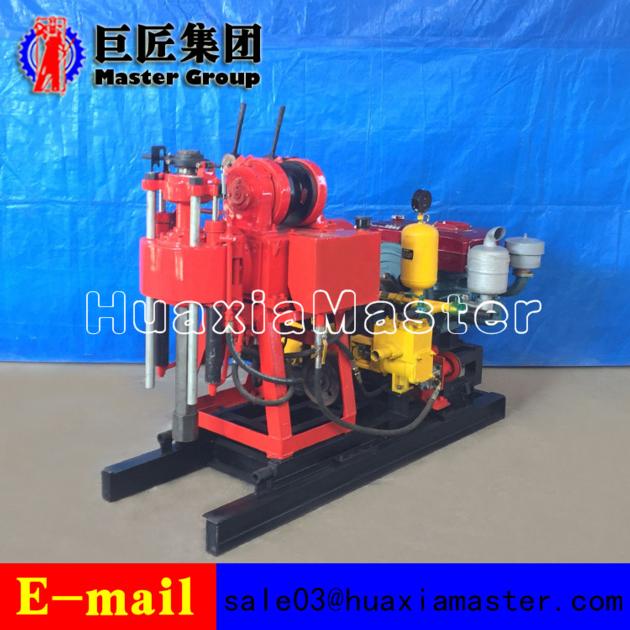

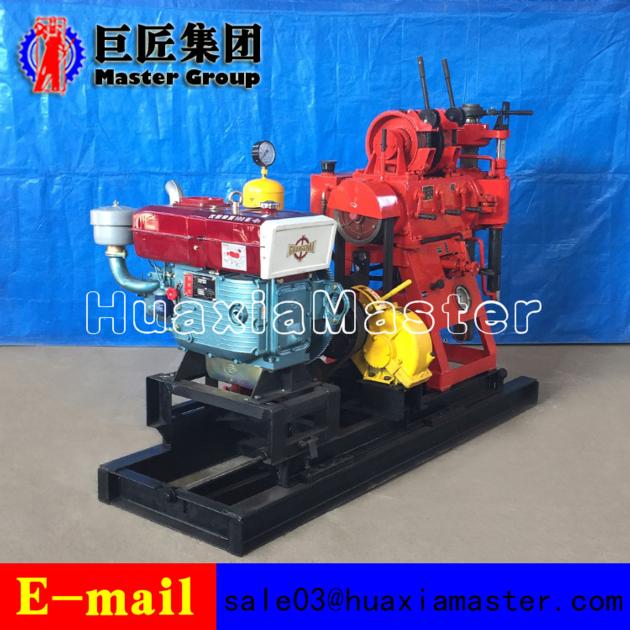

In Stock XY-200 hydraulic water well drilling rig For Sale
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xy-200 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
Maximum opening hole diameter 400mm Drilling depth 200m End hole diameter 75mm Drilling angel 90-75® Dimension 2.75X0.95X1.60m Drilling pipe diameter 50mm Weight without power 760kg Spindle Spindle rotation speed 71/142/310/20r/min Spindle stroke 450mm Winch Maximum lifting weight (single rope) 2008kb Lifting speed 17/35/75/160rm/s Wire-rope diameter: 13mm Roll capacity 35mm Mud pump Type: horizontal single cylinder double action flow：180L/min Maximum pressure 1.5mpa Working pressure 0.7mpa Inlet pipe diameter 50mm Outlet pipe diameter 45mm Power Diesel 20hp Rated speed 2200r/min Electric motor 15kw Rated speed 1460r/min |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: hydraulic water drilling machine price, water borehole drilling machine 1.The applications of XY-200 drilling machine
Water well,field irrigation well, engineering water well, precipitation well and so on; geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.
