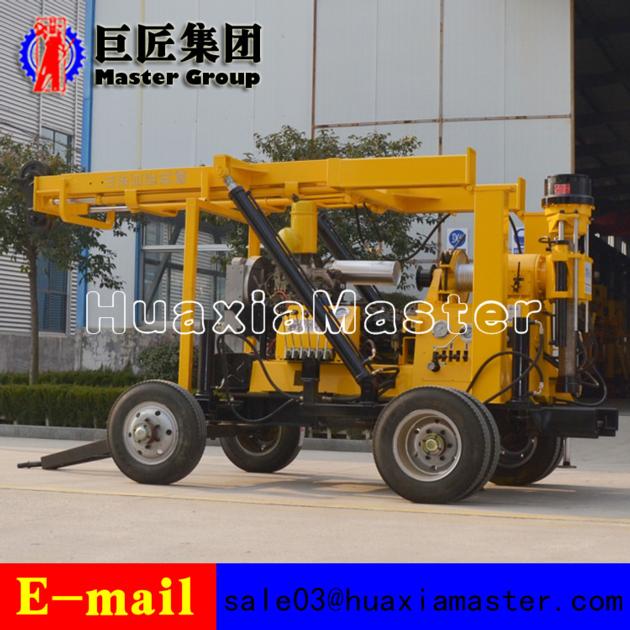

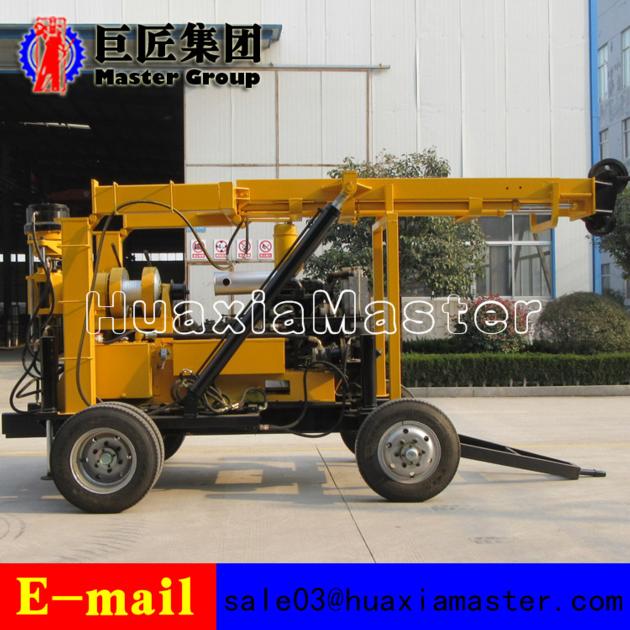

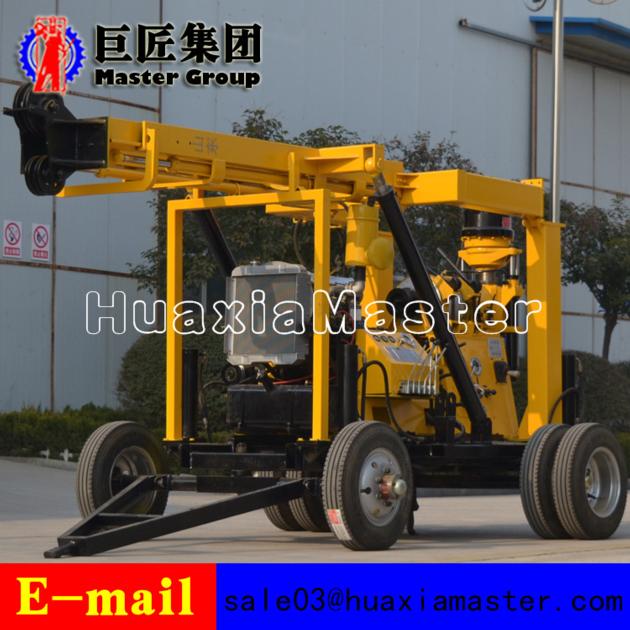

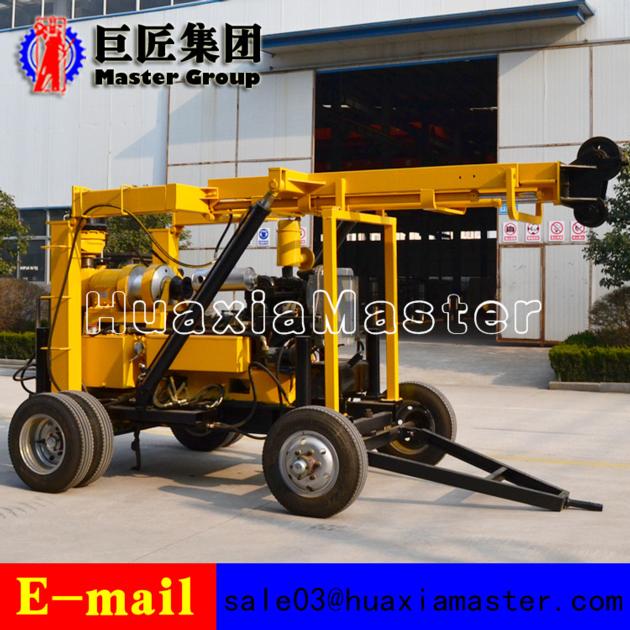

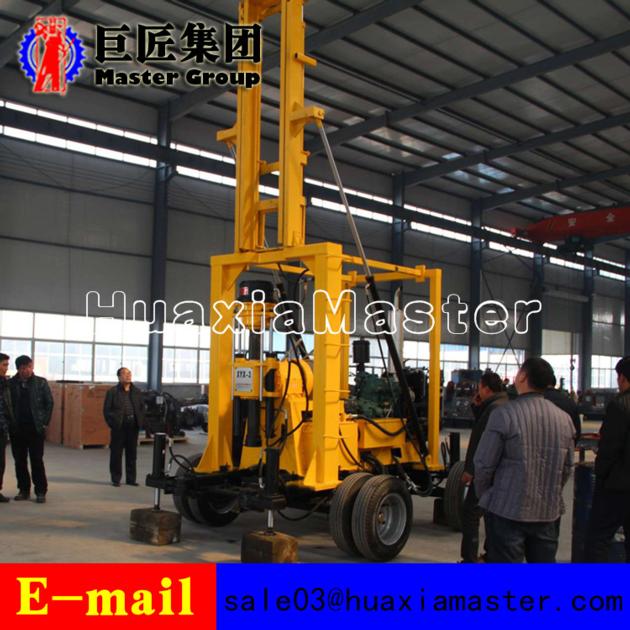

In Stock Hydraulic XYX-3 Water Well Drilling Rig For Sale
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xyx-3 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
Drilling hole depth 100/250/300/600 m
Opening hole diameter 300/200/150/75mm Maximum opening hole diameter 300mm End hole diameter 75mm Drilling pipe 60mm Drilling angel 90®-65® Vertical shaft Shaft Forward speed 30-1050r/min Reverse speed 29-137r/min Stroke 560mm Inner hole diameter 96mm Lifting force 60kn Winch Lifting speed (single rope) 0-45m/min Wire rope diameter 14mm Roll capacity 30m Lifting force (single force) 40kn Mud pump Mud pump BW-250 Horizontal three cylinder Flow rate 250l/min Working pressure 7mpa Inlet hose diameter 75mm Outlet hose diameter 50mm Gear pump Dual gear pump CBF-F63/25 Front flow pressure 63l/min 20Mpa Back end flow pressure 25l/min 20Mpa Rig power Diesel engine FAW Xichai 4 cylinder Electric motor Y180L-4 22KW Wheeled chassis Capacity 3.5T Length 2.6m Width 2m Height 0.6m |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: portable drilling rig, well drilling rig, walking type drilling machine
1.The features of XYX-3 water well drilling machine
The rig is equipped with wheeled walking mechanism and hydraulic cylinder support, which is convenient for the whole machine to be relocated and easy to adjust the level of the drilling rig.
Using the ball card holding mechanism to replace chuck,can implement non-stop down rod,convenient operation,safe and reliable.
With oil pressure feeding mechanism to improve drilling efficiency.
The pressure gauge is provided with the pressure gauge of the bottom of the hole, easy to grasp the situation in the hole.
The lifting and falling tower is hydraulic operation, which is convenient and reliable.
The diesel engine uses electric start to reduce the labor intensity of the workers.
