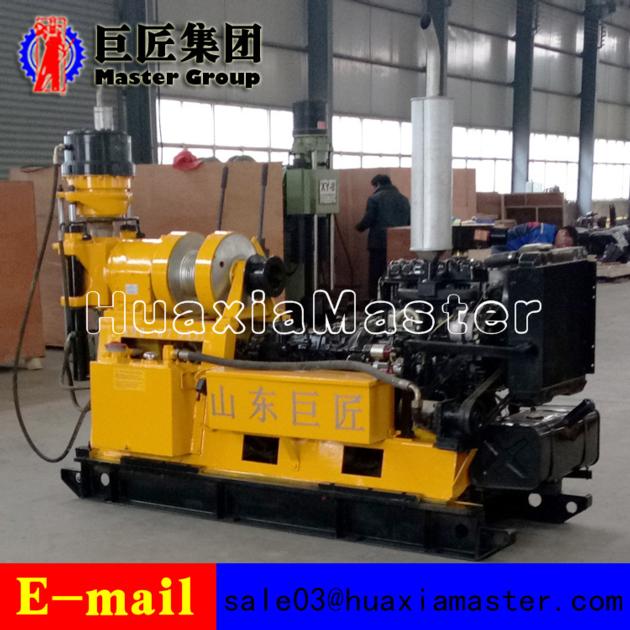

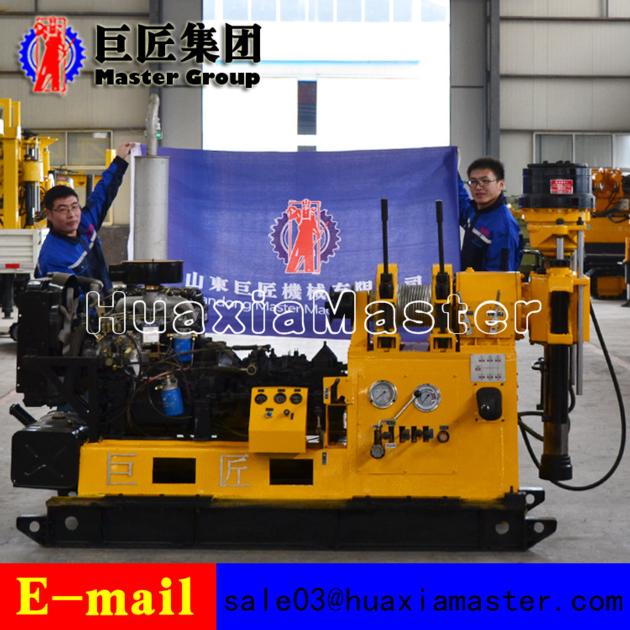

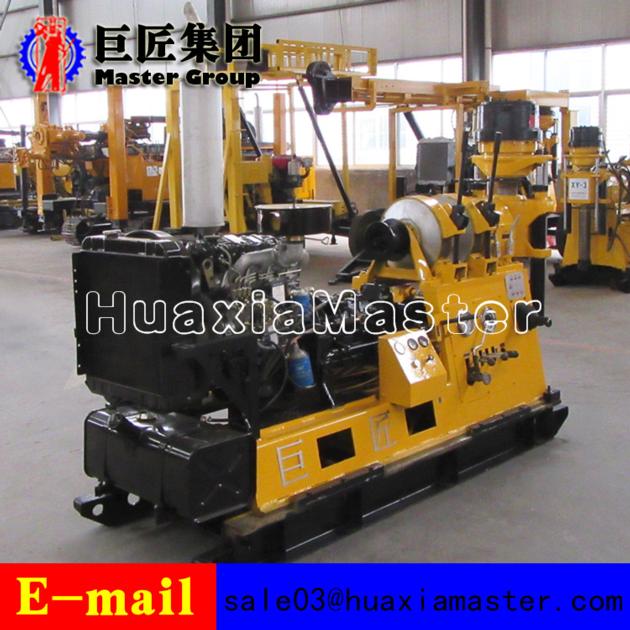

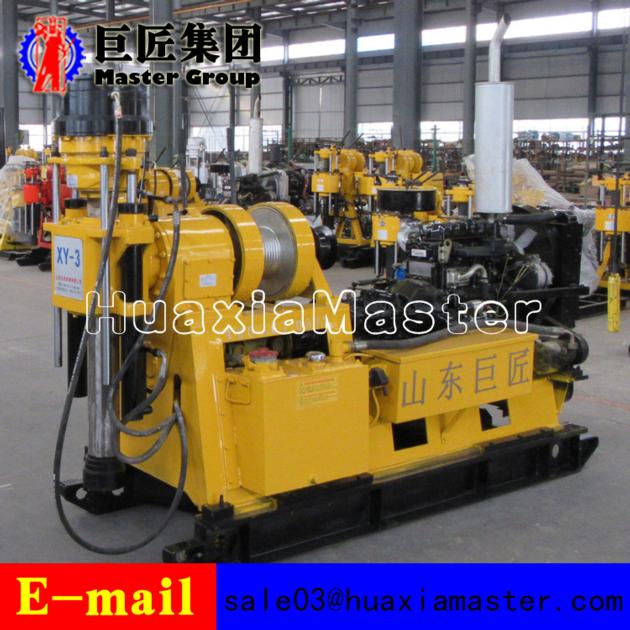

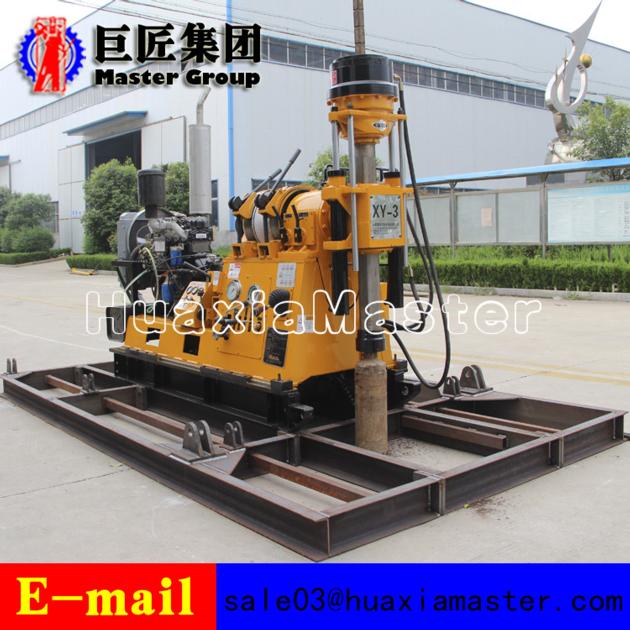

In Stock Hydraulic XY-3 Water Well Drilling Rig For Sale
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xy-3 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
Drilling depth 600m
Borehole diameter 300-75mm Maximum open hole diameter 300mm End hole diameter 75mm Drilling pipe diameter 60 Drilling angle 90®-65® Spindle Rotating speed 30-1050r/min Rotating stroke 29-137r/min Stroke 60mm Inner diameter 96mm Lifting force 6000kg Winch Max.single line lifting speed 0.5-1.9m/s Wire rope diameter 12.5mm Max.single line lifting force 4000kg Roll length 50m Mud pump Type horizontal three cylinder BW-250 Displacement 250L/min Work pressure 80kgcm° Water inlet pipe diameter 75mm Water outlet pipe diameter 50mm Gear Oil pump Duplex gear oil pump CBF-F63/25 Displacement&pressure 63l/min&20mpa Water outlet pipe diameter 25l/min 20mpa Power Diesel engine 39kw Electric motor 22kw Weight size Weight 1800kg Dimension 2500*900*1800mm |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: hydraulic press drilling machine , water borehole drilling machine, drilling rig water well
1.The features of XY-3 bore well drilling machine
XY-3 water well drilling machine adopts CG140 model auto transmission, with 10 rotation speed series and reasonable speed range, with eight forward rotation gears and two reverse rotation gears, it’s high speed, strong stroke and wide scope of application.
With large torque, strong bearing capacity, it can realize long distance control speed change,and convenient operation.
The power of the installation is large, with two reverse speed, which is convenient to deal with accidents.
Equipped with normally closed hydraulic chuck, operation is flexible and reliable
It can realized the independent operation of the vertical shaft and the hoist
The diameter of the vertical shaft through the hole is large and can be replaced with a large six party active drill rod
