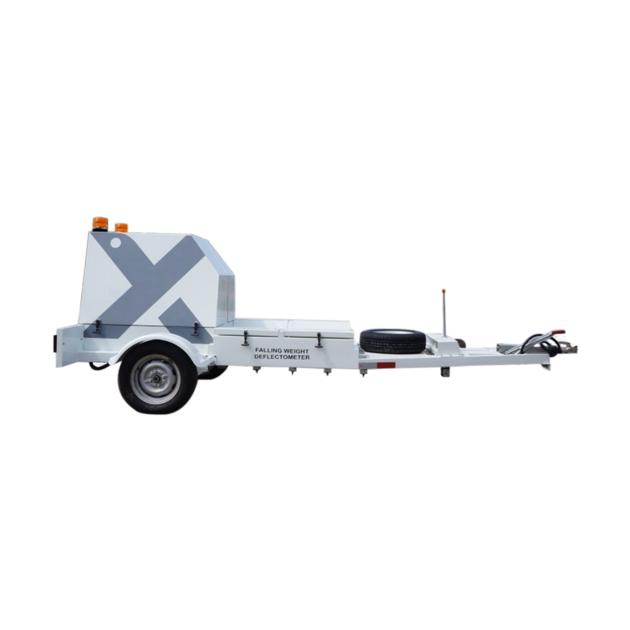

IWINTESTING Fully-automatic Trailer-mounted FWD Falling Weight Deflectometer
| Price: | RMB 349,197.87 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Tianjin Port |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |
Model IWIN-FWD Type Trailer type Hammer lifting hydraulic type Power supply traction device power, DC12V Deflection type magnetoelectric speed sensor Deflection sensor qty 9pcs Min. distance to earth >20cm Deflection range -2500μm~+2500μm Deflection measuring accuracy better than 2% Deflection resolution 0.1μm Capacity 0~250kN Loading accuracy better than 2% Loading plate D300mm OR D450mm(4-side profile) Temp. range -50℃~100℃ Temp. measuring accuracy 0.005 Temp. measuring resolution 0.1℃ Distance sensor accuracy 0.001 Testing time for each point 35s(3 hammer action) |
Packaging & Delivery
| Packaging: | one set in wooden box |
|---|---|
| Delivery/Lead Time: | 7days |
| Production Capacity: |
Product Description

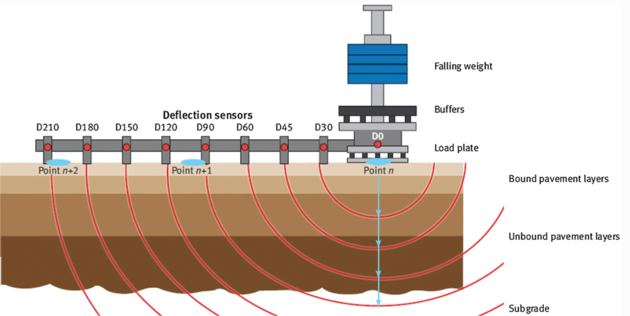

Falling Weight Deflectometer (FWD) is used to measure the vertical deflection response of a surface to an impulse load. Precision load measurement and deflection sensors record the pavement surface characteristic, which is used to calculate pavement proper ties such as Bearing Capacity Layer Thickness E Moduli Expected Surface Life. FWD can also be used in determining the actual material used and in what combination to build the pavement surface. It also identifies voids underneath the surface or how two surfaces, typically concrete slabs, are in contact with each other.FWD is user-friendly with an automatic self-check of results, data is easily transferred to PC via the USB memory key or by a direct connection.
|
