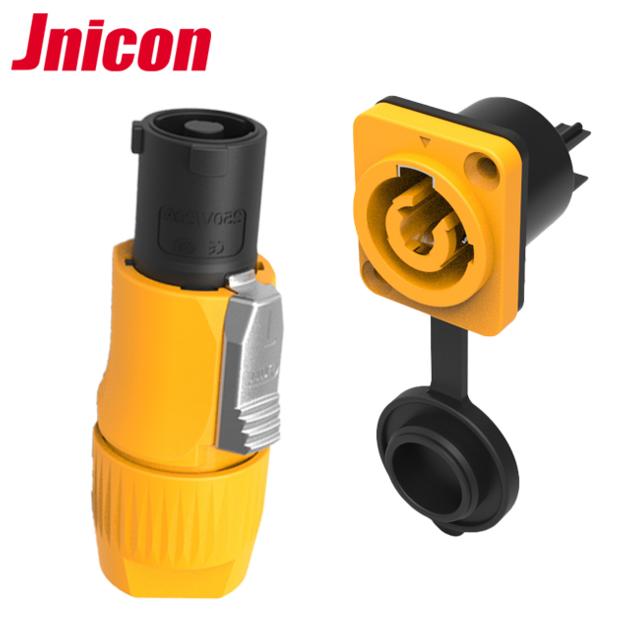

IP44 IP65 Waterproof Data Connector , powerCon Connector Straight & 90 Degree Panel
| Price: | US$ 1 / Pair |
|---|---|
| Minimum Order: | |
| Payment Terms: | Bank, Paypal, Alibaba, Moneygram, LC |
| Port of Export: |
Product Details
| Model No.: | powercon, Rj45, USB | Brand Name: | Jnicon |
|---|
| Certification: | CE, CQC, UL, AWG, ISO |
|---|---|
| Specification: |
Datasheet of Connector Name Signal Panel Mount Connector Number of contacts 8Pin Resistance <60mΩ ( Male Connector + Single RJ45 Ethernet ) IP Rating IP44 / IP65 IP Rating IP44 / IP65 Cable Specification 0.15mm-0.2mm2 Diameter φ5.5mm - φ7mm Temperature -25℃ - 80℃ Application of Connector Usually people call waterproof data connector as RJ45 waterproof connector , material include metal and plastic , anti -fire , waterproof and dust-proof . it wildly use in LED screen indoor or outdoor due to the good quality . Usually there are 2sets signal plug and socket , and 2 sets male and female powercon connector in a 500 x 500 cabinet led screen . You can calculate the quantity according to your led screen box . Technical Parameters HDMI Insulation Structure 500 MΩ at 500VDC Operating Temperature -40®C ~ +105®C IP Class IP67 (1m / 30min) Mold Material PA66 Contact/Terminal Material Gold Plated Brass |
Packaging & Delivery
| Packaging: | Customized |
|---|---|
| Delivery/Lead Time: | Upon discussion |
| Production Capacity: | 100K/week |
Product Description
Description of Product

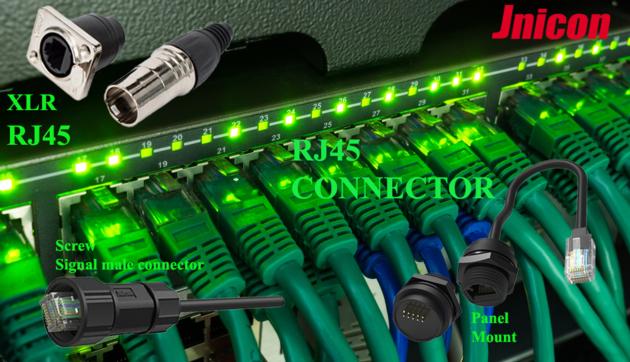

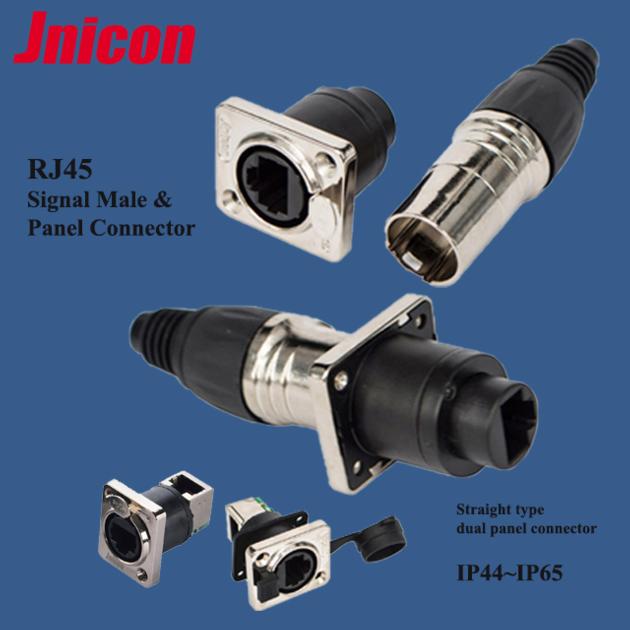

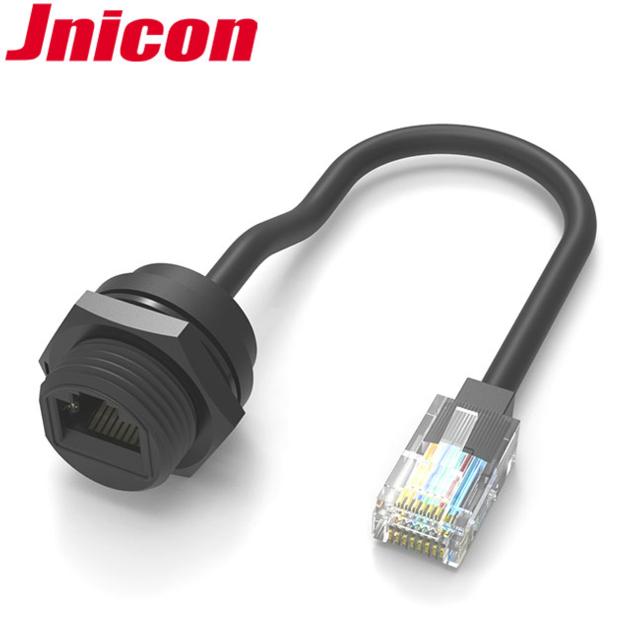

Name of good : waterproof connector / signal waterproof connector / 8p8c dust - proof waterproof connector / PCB signal panel connector
There are 2 parts of connector : male and female connector / plug and socket connector .
Protection class : IP65 for outdoor environment , even wet environment for a long time
Shell , insulating parts / shell / housing : PA66 / metal and plastic / high-performance engineering plastic
Flammability : UL94 - V0 / anti - fire
Connector type : plug and unplug / quick lock
Mechanical of Waterproof Data Connector
IP rating : IP44 & IP65 . IP44 for indoor environment , IP65 for outdoor environment
Cable specification : 0.15mm-0.2mm2
Diameter / cable OD : φ5.5mm - φ7mm
Operating temperature : -25℃ - 80℃
Description of M25 Waterproof Hdmi Connector
Gold-plated connectors, bare copper conductors, and foil-and-braid shielding for strength and reliable connectivity
Meets the latest HDMI standards (4K Video at 60 Hz, 2160p, 48 bit/px color depth) that supports bandwidth up to 18Gbps and backwards compatible with earlier versions
Connects Blu-ray players, Fire TV, Apple TV, PS4, PS3, XBox one, Xbox 360, computers and other HDMI-enabled devices to TVs, displays, A/V receivers and more
Widely used for the belowed application:
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery
|
