IEEE member Ethernet NIC Intel 82599ES 2 port SFP+ 10Gbps Network Adapter Card

IEEE member Ethernet NIC Intel 82599ES 2 port SFP+ 10Gbps Network Adapter Card


Based on Intel¬ 82599ES Ethernet Controller Dual-Port PCIe fiber optical Network Card

1. Brief

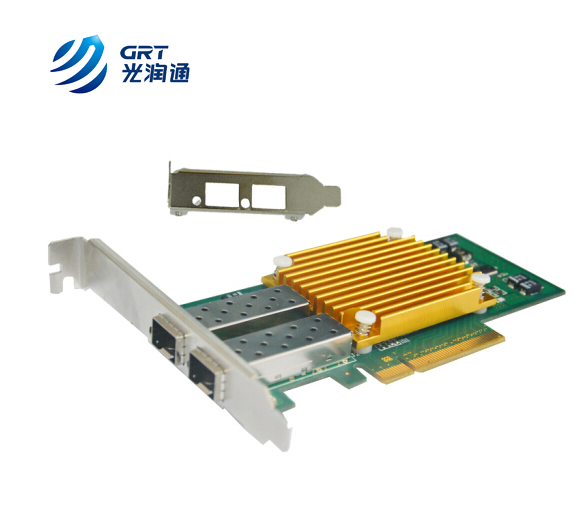

F1002E Fiber Optic Network Adapter is based on Intel¬ 82599ES Ethernet Controller with dual port. This product represents a new step in the development of the 10Gb Gigabit network for enterprise and data centers.It has pushed performance to a new level by unifying the industry's leading enhancements in the network environment for the virtualization and Internet microcomputer system interface (iSCSI).The new adapter family also integrates new power management technologies such as high energy efficiency Ethernet (EEE) and remote direct memory access (DMAC).

2. Specifications

Model No. F1002E v3.0
Ethernet Controller Intel¬ 82599ES 10Gb Ethernet Controller
Connector Type SFP+
Bus Type
Max. Bus Rate
PCI Express* 2.0
8 × 5 GT/s channel
Port Dual Port
End Bracket Full height or low profile(2U or 1U)
Smart Uninstall Yes
Intel ¬ Virtualization Technology(Intel¬ VT) Integrated built-in function support: Quality of Service(QoS), Traffic Management, Flexible Port Partition, Virtual Machine Device Queues(VMDq), PCI-SIG* SR-IOV support
Ethernet Storage iSCSI,FCoE, NFS
Performance Optimization
UDP/TCP/IP Checksum Offload
UDP/TCP Transmit Segmentation Offload(TSO)
SCTP Receive and Transmit Checksum Offload
Operating Temperature 0®C —70®C
Rated Power 5.6W
