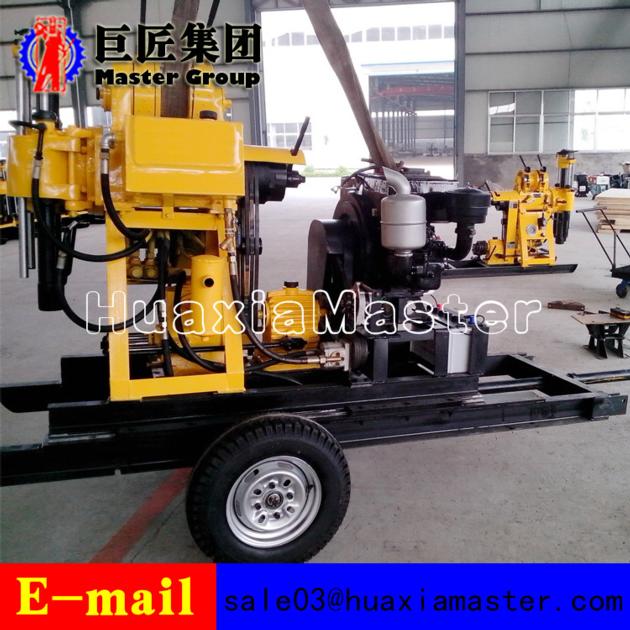

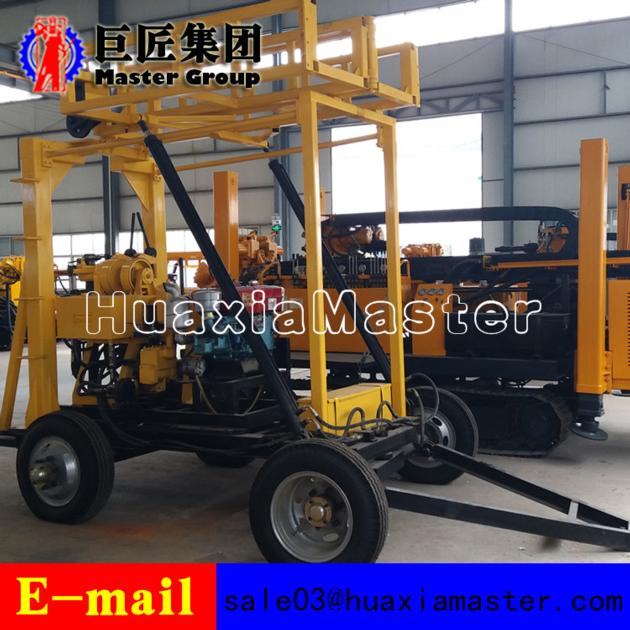

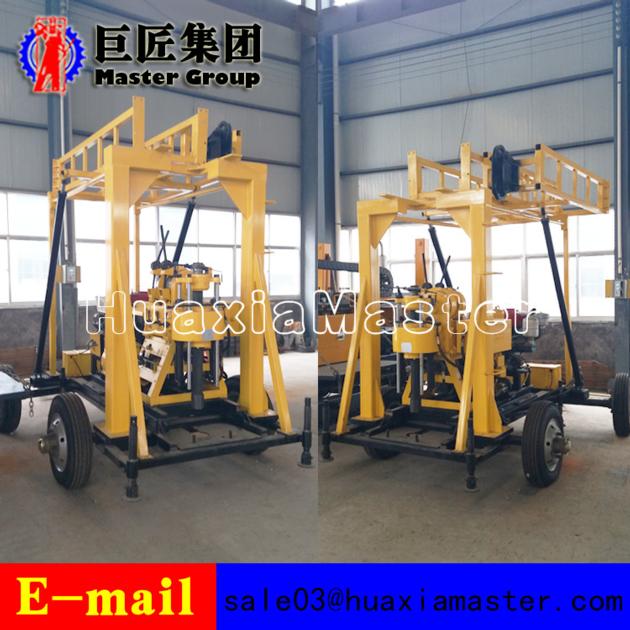

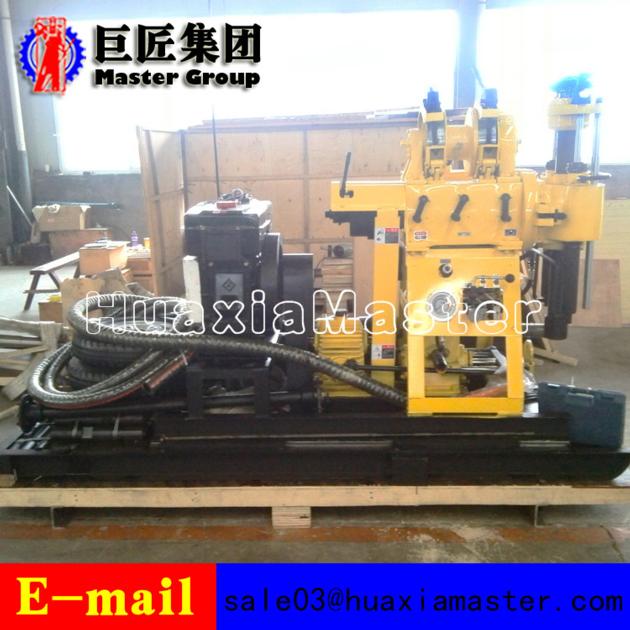

Hydraulic XYX-200 Wheeled Water Well Drilling Rig For Sale
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xyx-200 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
XYX-200 water well drilling rig Drilling hole depth 200m Maximum opening hole diameter 300mm End hole diameter 75mm Drilling pipe diameter 60mm Drilling angel 90®-75® Rig weight (without power) 1300kg Triangular belt B950×4 B1700×3 Active moving distance 300mm Power diesel engine/ motor 20hp/16.2kw Vertical spindle Rotation speed 64 128 287 557 r/min Stroke 450mm Windlass Maximum lifting power of a single rope 2400kg Lifting speed of a single rope 0.41/ 0.82/ 1.64m/s Wire rope diameter 13mm Wire rope capacity 35m Band-type break diameter 260mm Band-type break belt width 70mm Mud pump Model horizontal single cylinder double action Maximum displacement diesel engine 170L/min Matching motor 150L/min Maximum pressure 3mpa Work pressure 1.5mpa Water inlet pipe diameter 40mm Water outlet pipe diameter 30mm Triangular belt B1728mm Model CBT—F—314 Triangular belt B1100× 1 |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
keyword:water well drilling rig trailer mounted, walking water well drilling rig 1.The features of XYX-200 water well drilling rig
It has oil pressure feed mechanism to improve drilling efficiency.

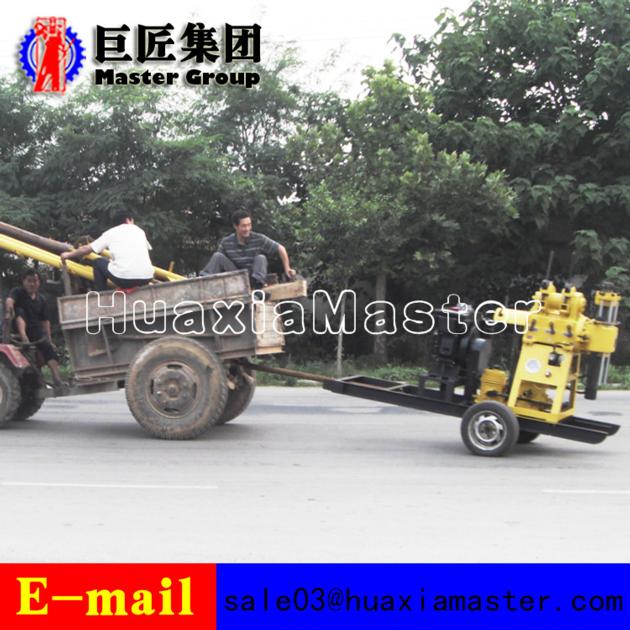

Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.
Pressure gauge display the condition of the bottom of the drill hole.
The machine is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working is high efficiency, convenient operation, safe and reliable.
