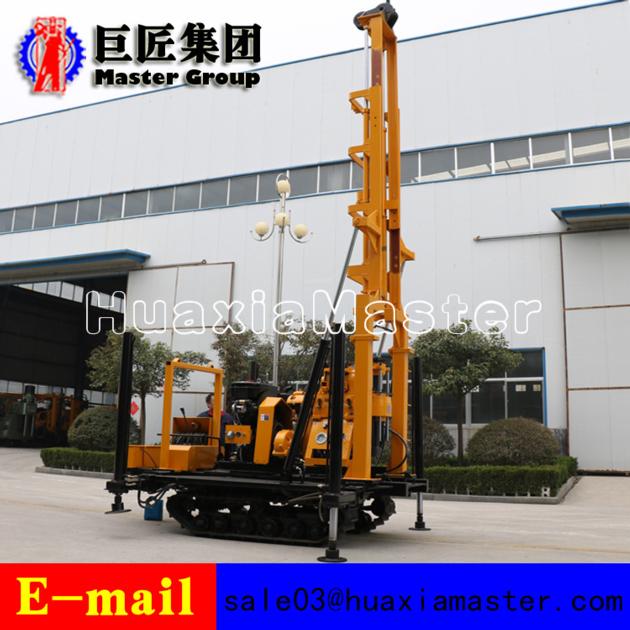

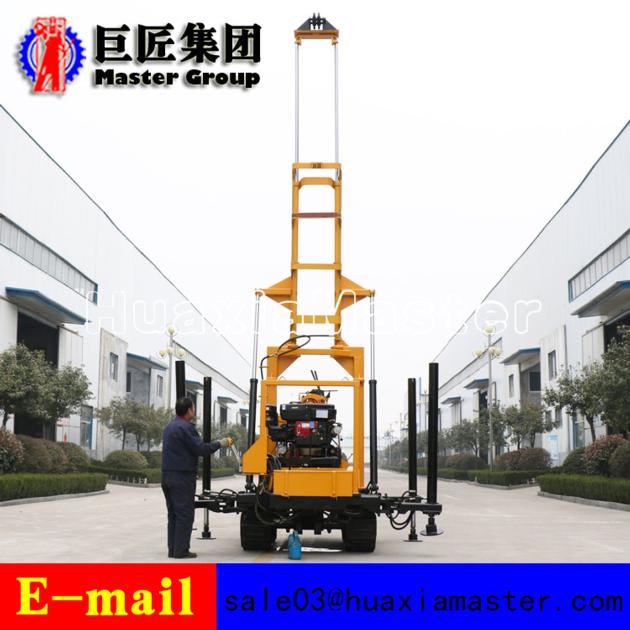

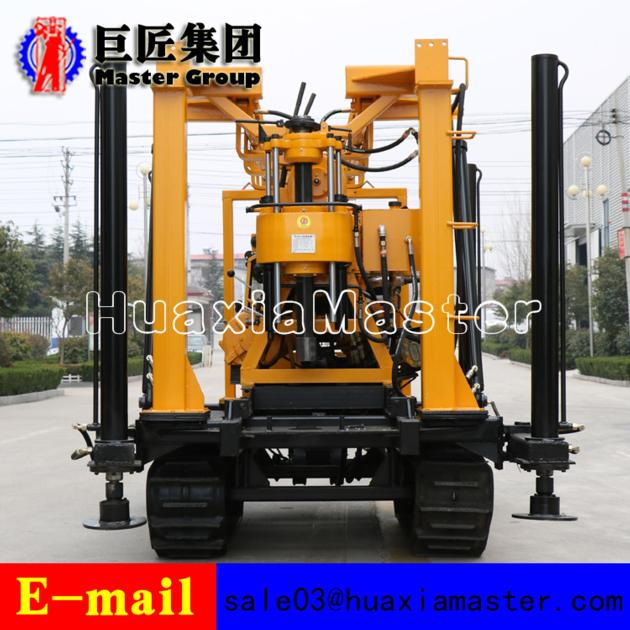

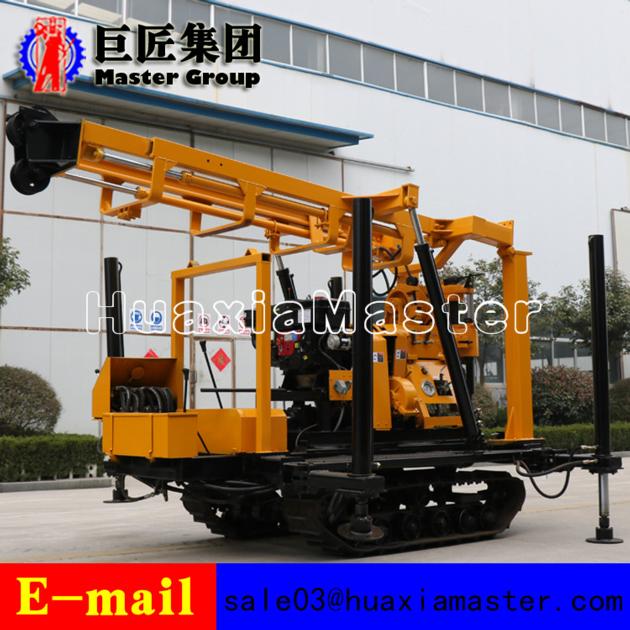

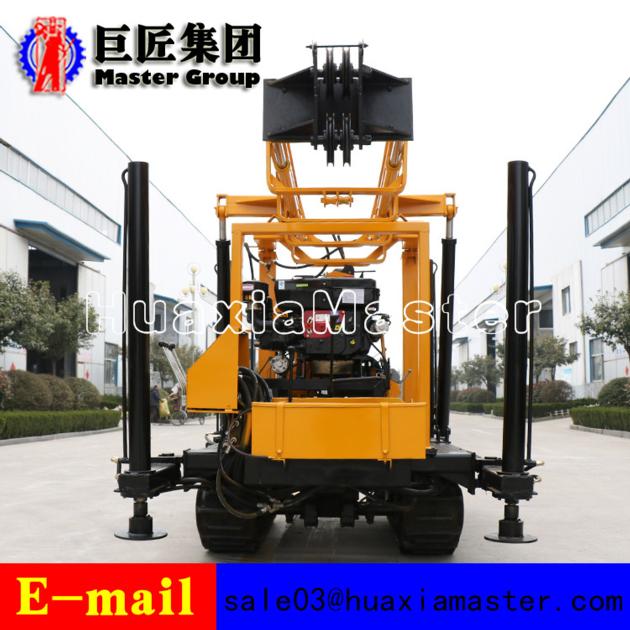

Hydraulic XYD-200 Crawler Water Well Drilling Rig For Sale
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xyd-200 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
XYD-200 drilling rig Drilling depth 200m Maximum opening hole diameter 75-300mm End hole diameter 75mm Active drilling pipe 53/59*4200mm Drilling pipe diameter 50/60mm Drilling angle 90®-75® Matched power (diesel engine) 16.2kw 2200r/min Weight/dimension 3000kg, 3800*1950*2700 Spindle Spindle speed 64/128/287/557r/min Spindle stroke 450mm Windlass Single rope lifting force 24kn Single rope lifting speed 0.12/0.22/0.49/0.95m/s Drum diameter 140mm Wire rope diameter 13mm Windlass capacity in terms of rope length 35m Drilling Tower Rated load 5t Effective height 6m Tower leg diameter 89mm Mud pump Model BW160 Flow 160l/min Maximum pressure 1.3mpa Reciprocating frequency 165r/min Water inlet pipe diameter 51mm*4.5m High pressure water outlet pipe diameter 32mm*6m |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keyword: crawler drilling rig, big drilling machine, drilling machine 200m 1.The features of XYD-200 water well drilling rig
Drilling rig uses automatic Telescopic drilling rig,it uses two high-strength cylinders to support.There is a group of hydraulic valves to control supination of drill tower so that it saves time and effort, safe and reliable when user operates, the maximum for the user to create benefits.
The chassis uses a rubber belt track so that the weight is light,the cost of life cycle is lower.It can reduce noise of the vehicle walking mechanism,reduce car body’s shake,reduce the oil consumption.It can walk on the pavement of city and not hurt the pavement.
The chassis comes with four high-strength threaded legs(or Hydraulic high leg) the threaded legs installate and adjust is fast and convenient, can be used for work plane leveling.It can make loading and unloading reduce the cost of to improve efficiency.It also can be used as auxiliary support when the track drilling rig is working.
Using 48V electric starting diesel engine reduced the operate's labour intensity greatly.Especially in cold season,when diesel engine start hardly,it will show superiority vastly.
The machine is equipped with BW-160 independent mud pump,the pump flow and pressure are big,the maintenance is convenient,the parts of the machine are convenient to buy all over the country.
