Hydraulic XY-44A water well drilling rig ForSale
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xy-44a | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |

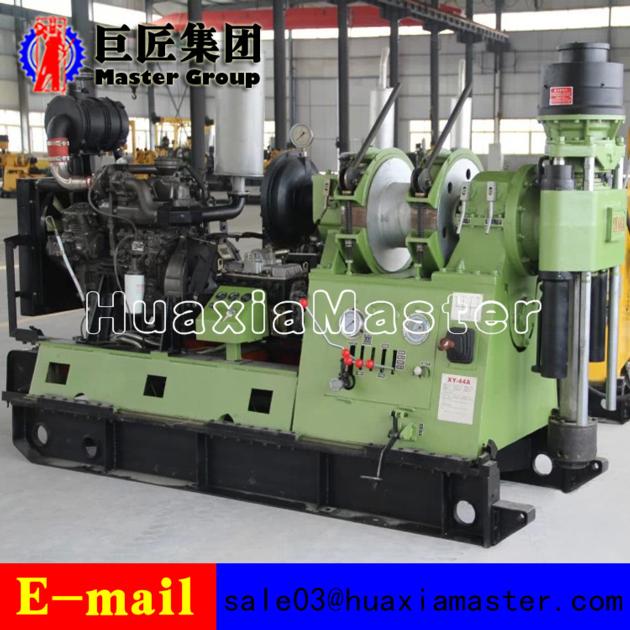

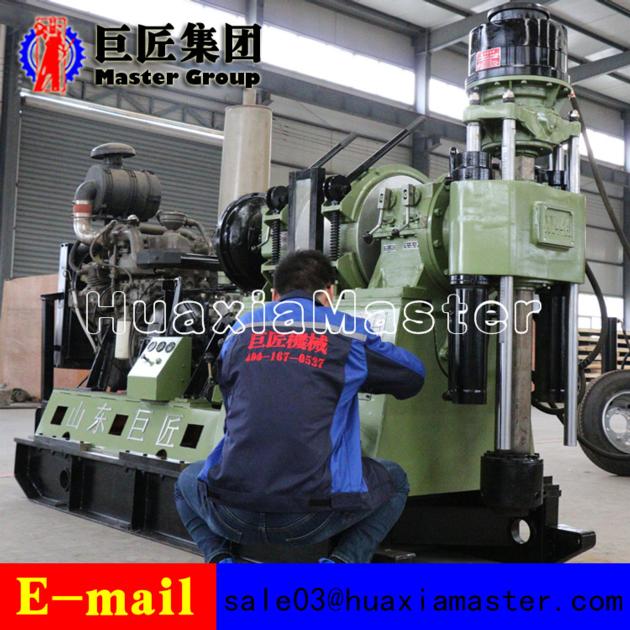

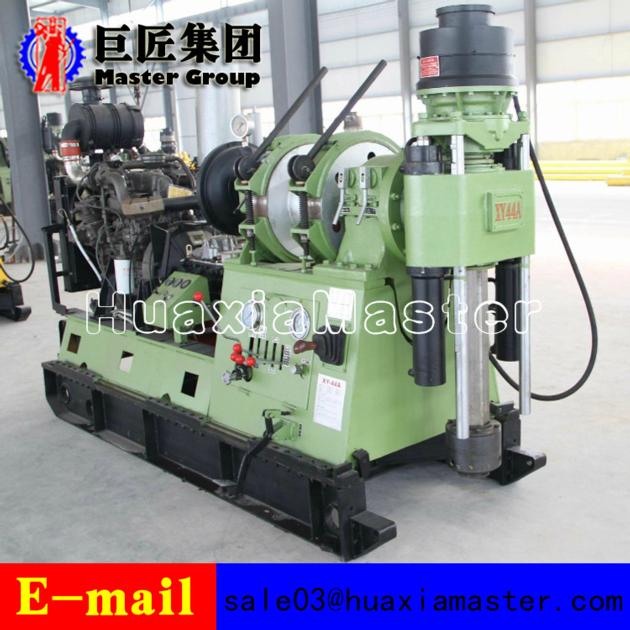

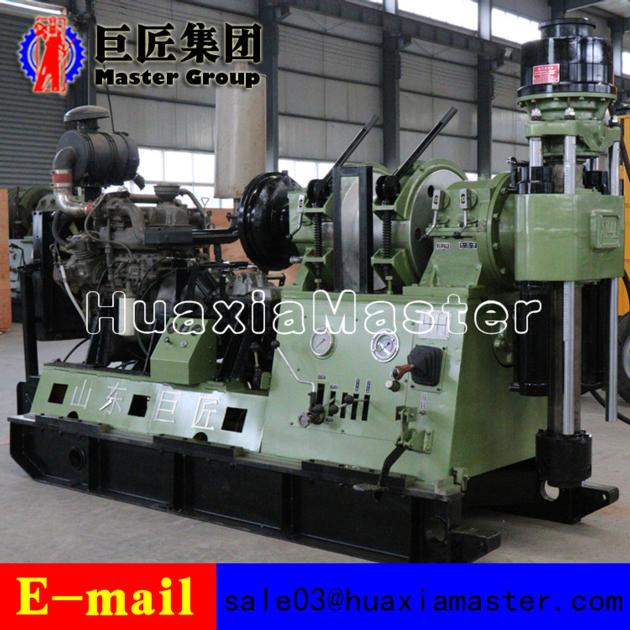

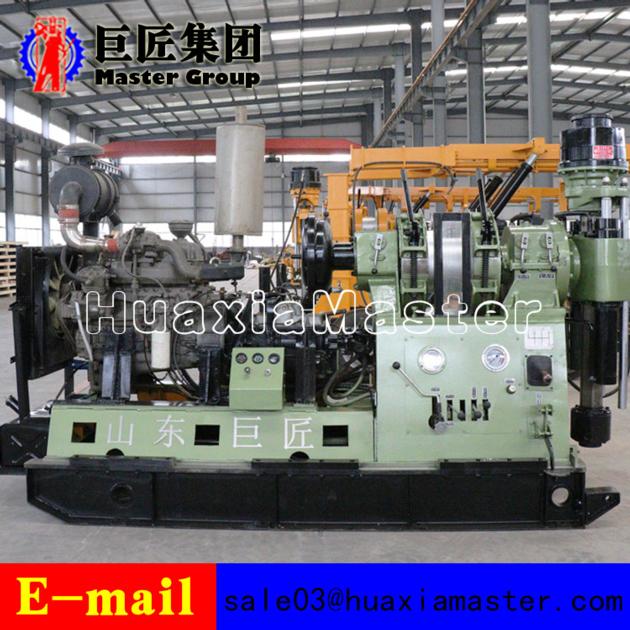

XY-44A water well drilling rig
Drilling depth 600-1400m Max open hole diameter 300mm End hole diameter 75mm Drilling pipe diameter 60mm Drilling angle 90®-65® Drill rig moving stroke 450mm Spindle Rotating speed ( diesel engine) forward 60/97/169/187/276/301/284/487/521/847/1180/ 1490r/min reverse 65 201r/min Rotating speed ( electric motor) forward 50/81/141/155/230/251/320/406/434/706/984/1247r/min reverse 54 167r/min Stroke 600mm Maximum pressure 90kn Spindle inner diameter 96mm Lifting power 120kn Windlass Maximum.lifting power of a single rope 45kn Maximum lifting speed of a single rope 0-45m/s Wire rope diameter 17.5-18.5mm Windlass capacity In terms of wire rope length 90-110m Drum diameter 140mm Wire rope diameter 6mm Wire rope length 450m Mud pump Type BW-250 Displacement 250 l/min Work pressure 80kg/cm° Water inlet pipe diameter 75 mm Water outlet pipe diameter 50 mm Power Diesel engine YC4E135-1 100KW Electric engine Y225S-4 37KW |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: big drilling machine, borehole drilling machine,well drilling rig
1.The brief introductions of XY-44A water well drilling rig
XY-44A water well drilling rig is a multi-purpose spindle diamond drilling rig.its suitable for high-speed medium and deep borehole drilling in complex rock formation. Core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.
2. Applications of XY-44 water well drilling rig
Made in China water well,field irrigation well, engineering water well,precipitation well and so on; core drilling, engineering geology exploration, hydrology as well as large diameter foundation piles construction.
