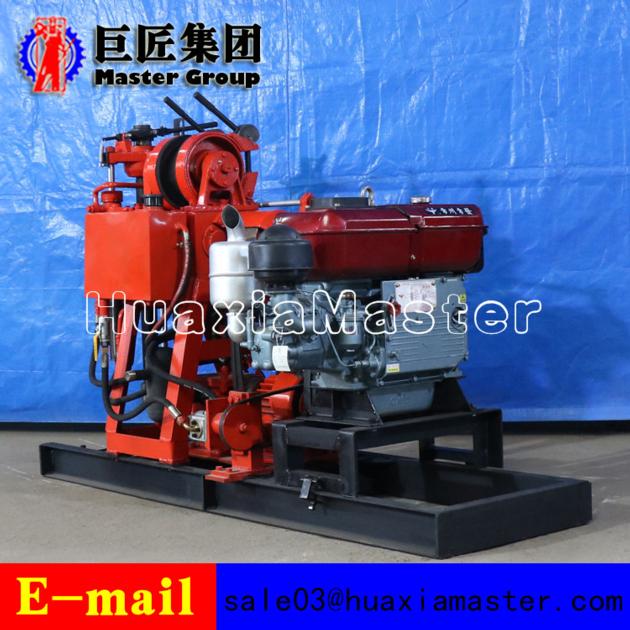

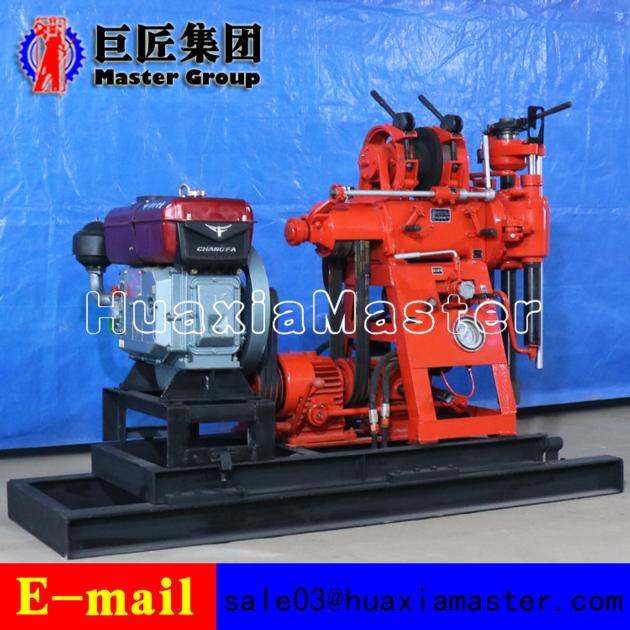

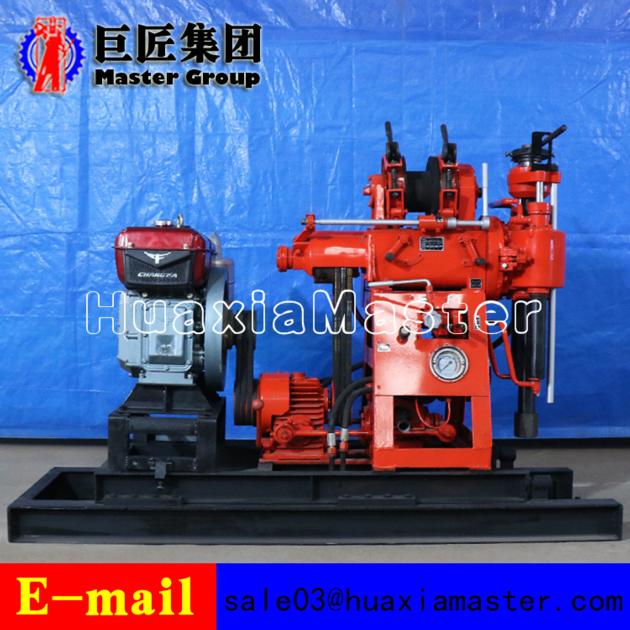

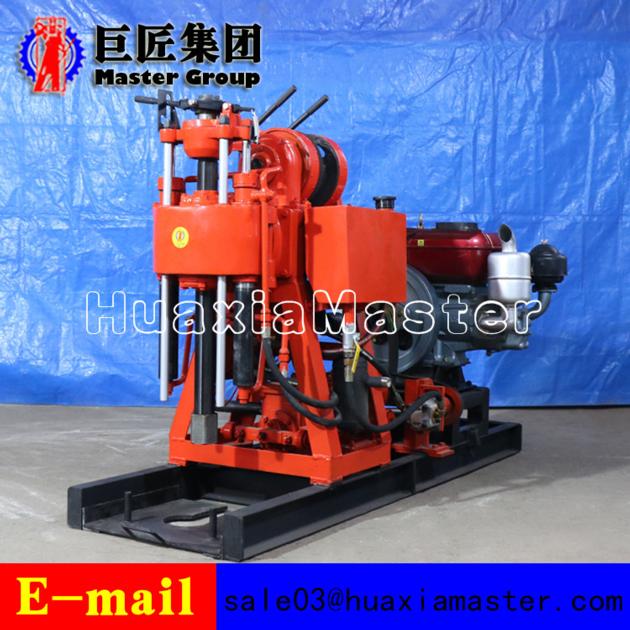

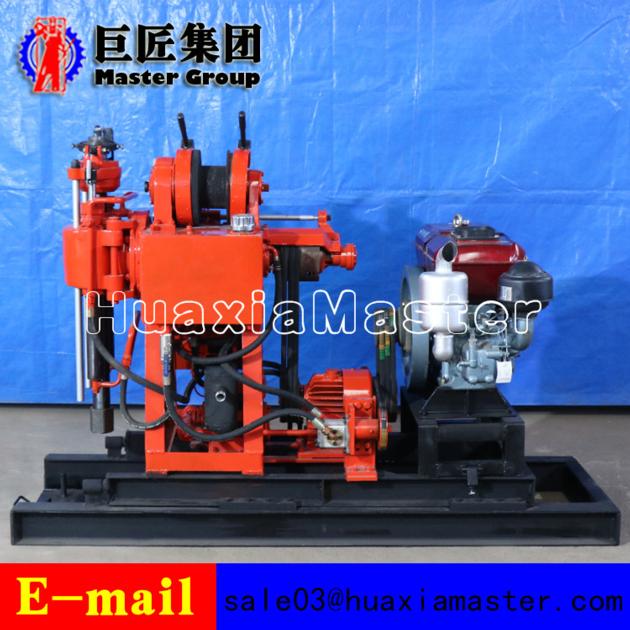

Hydraulic XY-100 Water Well Drilling Rig For Sale
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xy-100 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
Drilling depth 110
Maximum open hole diameter 220mm End hole diameter 75mm Drilling pipe diameter 50mm/42mm Drilling angle 90 Drilling rig weight (exclude diesel engine) 610kg Dimension 2.1*0.9*1.3m Spindle Rotating speed 130/300/480/730/830/1045 r/min Stroke 450mm Winch Maximum lifting force 1600kg Lifting speed 1.06/0.67/0.32 m/s Wire-rope diameter 13mm Roll capacity 50m Mud pump Type Horizontal single cylinder double acting Displacement (with diesel engine/electric motor) 170l/min Max. pressure 1.5mpa Work pressure 0.7mpa Power Diesel engine S1100 Electric motor Y160M-4 10KW |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: geological exploration drilling machine, well drilling machine, core drilling machine
1.The applications of XY-100 water well drilling rig
XY-100 water well drilling rig is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.
Shandong Master Machinery Group Co.,Ltd.
Sales Manager: Kevin
Mobile Phone:0086-18865479507
Mail: *
WeChat: 18865479507
QQ: 256618593
TEL: 0086-537-3860909
Skype: 8618865479607
Whatspp: 008618865479507
Website: *
|
