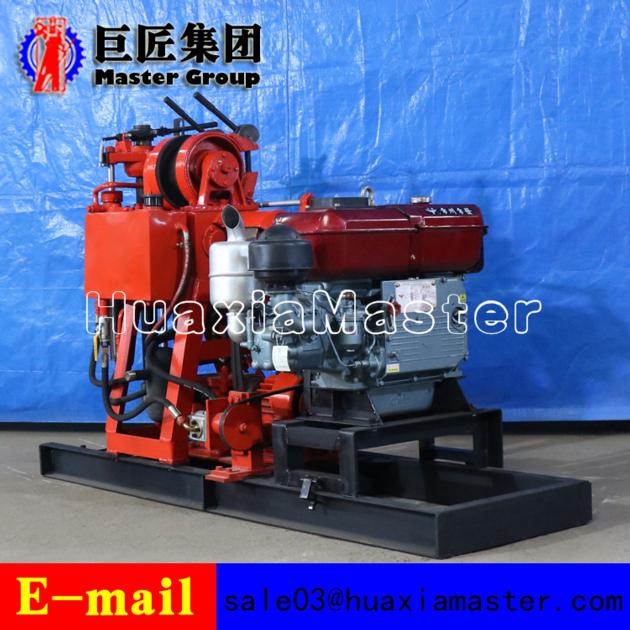

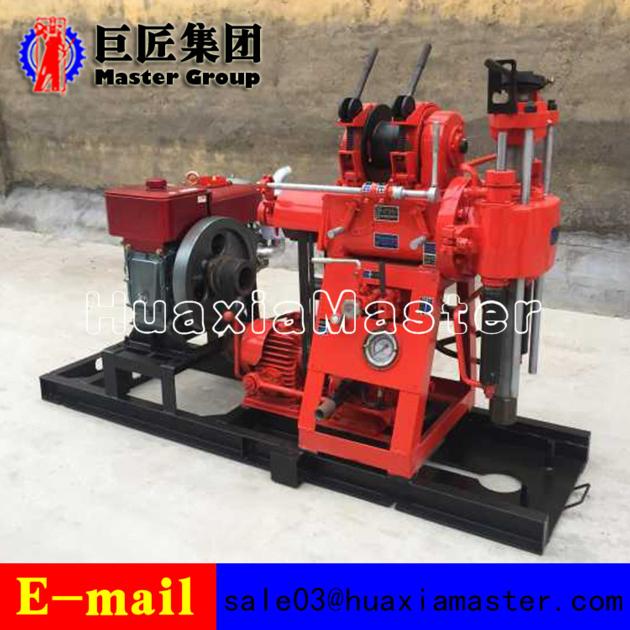

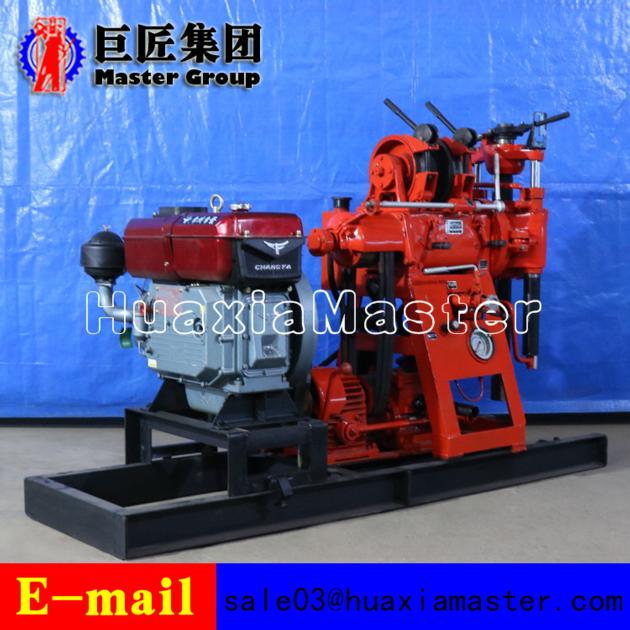

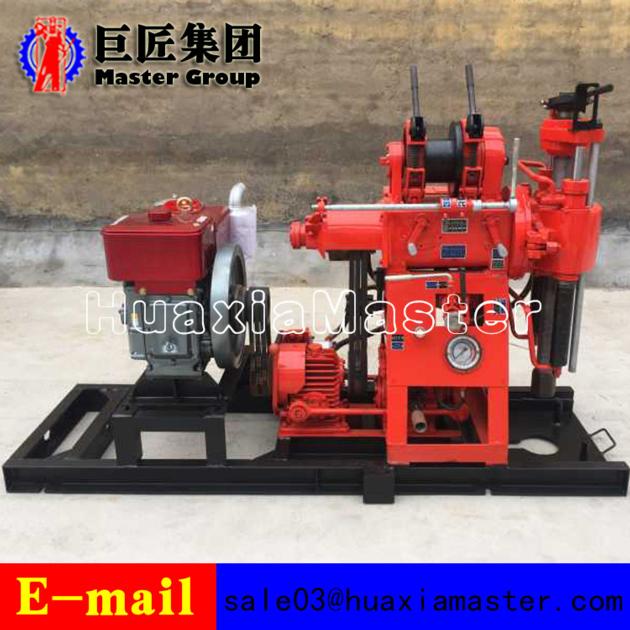

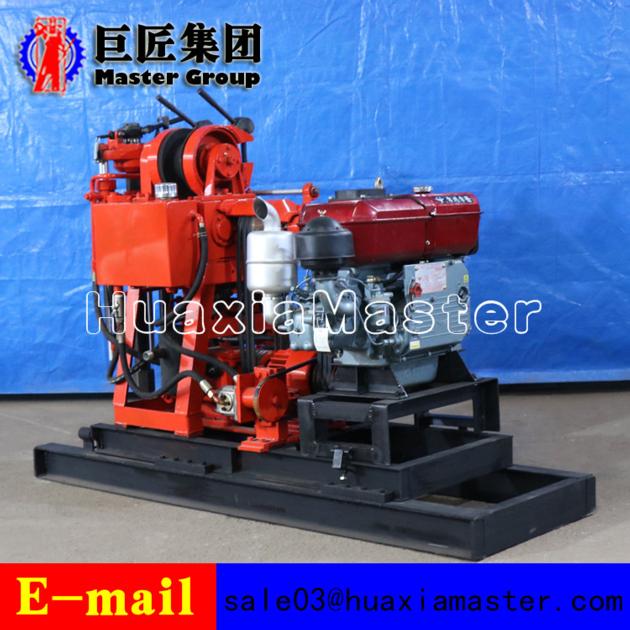

Hydraulic XY-1 Water Well Drilling Rig For Sale
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xy-1 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
Drilling depth 110 m Maximum open hole diameter 220mm End hole diameter 75mm Drilling pipe diameter 50mm 42mm Drilling angle 90 Drilling rig weight (exclude diesel engine) 610kg External dimensions 2.1*0.9*1.3m Spindle Spindle speed 130/300/480/730/830/1045 r/min Spindle stroke 450mm Windlass Lifting power (single rope) 1600kg Lifting speed (single rope) 1.06/0.67/0.32 m/s Wire-rope diameter 13mm Windlass capacity in terms of rope length 35m Brake belts width 50mm Mud pump Type Horizontal single cylinder double acting Displacement (diesel engine/electric motor) 170L/min Maximum pressure 1.5mpa Working pressure 0.7mpa Power Diesel engine S1100 Electric motor Y160M-4 10KW |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords:water well drilling rig, core drilling machinexy-1, borehole drilling machine 1.The applications of XY-1 water well drilling rig
Made in China water well,field irrigation well, engineering water well,precipitation
well and so on;engineering geographical prospecting of railway,hydro-power, transportation, bridge, dam foundation and buildings, as well as rock core geological and physical survey drilling.
