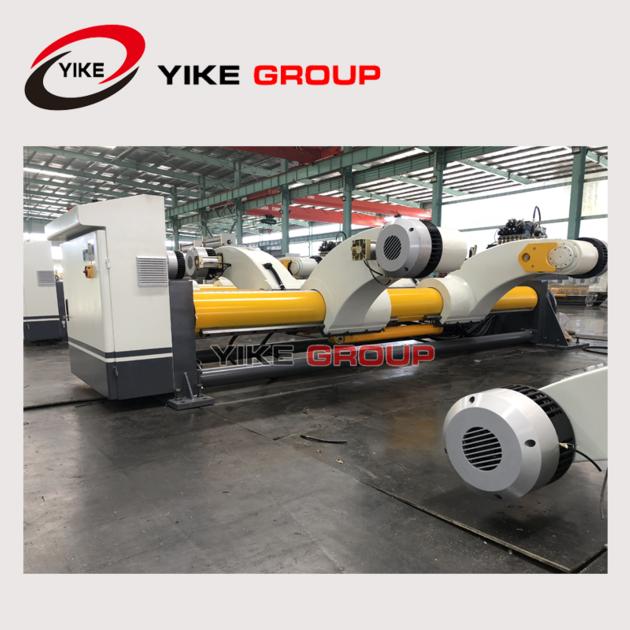

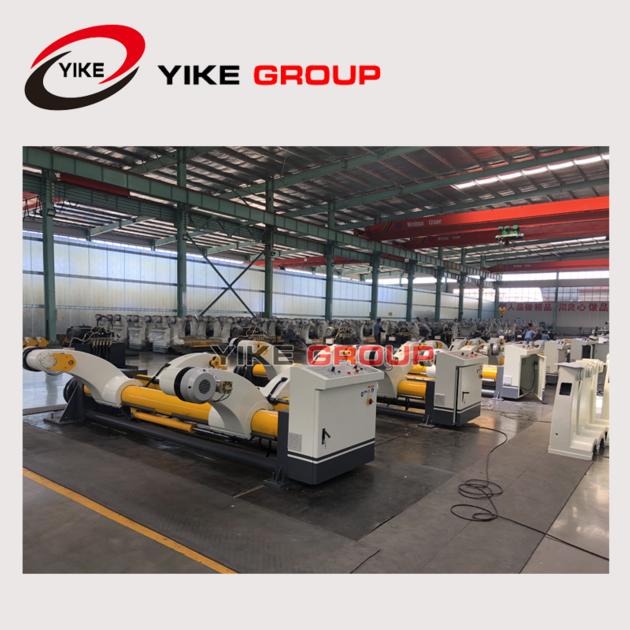

Hydraulic Mill Roll Stand

Hydraulic mill roll stand Specification

● Symmetrical structure can install two rolls of paper at the same time and continually change paper, paper roller clamp, lift-lower, loosen, movement, contraposition, translation etc.

● Equipment was made of HT200-wide casting.

● Maximum loading of one side arm 1500-2000kg

● Each stand with two set track and trolley for carry paper.

● Pneumatic braking

● Electrical components are controlled centralized(domestic brank)

● One set main motor power of hydraulic mill roll stand is 2kw, each arm power 1.5*4kw



YIKE GROUP Hydraulic mill roll stand Advantage

Hydraulic mill roll stand characteristic

● Professional manufacturer

● Economic cost

● Durable working

● Fast delivery

● Good after service





I、Structural features：

1.Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others，the lifting of the paper adopts hydraulic drive.

2.Brake adjustable adopts multipoint braking system.

3.Each paper rack is equipped with two paper carts that can be served simultaneously from both sides.

II、Technical parameter

1、Paper clip range maximum : 1800mm minimum : 1000mm

2、Folder diameter maximum : 1500mm minimum : 350mm

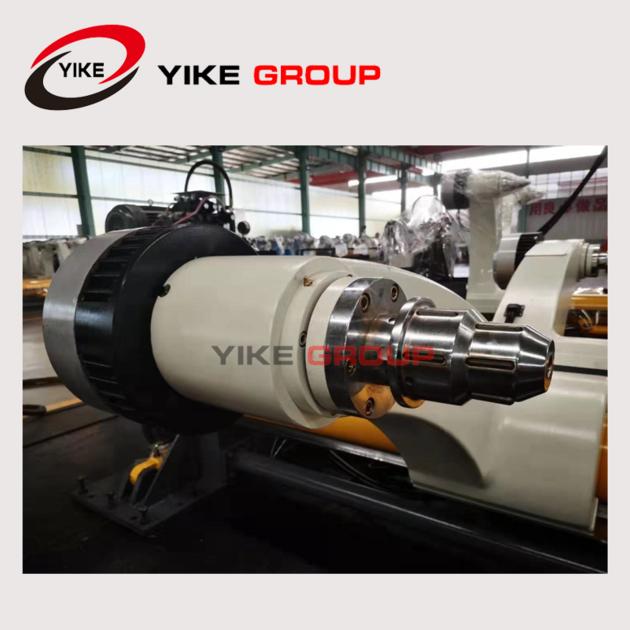

3、Main shaft diameter of paper holder：￠240mm

4、Gas source work pressure（Mpa）：0.4---0.8Mpa

III、Hydraulic system parameters

1、Work pressure（Mpa）:16---18Mpa

2、Lifting hydraulic cylinder：￠100×440mm

3、Clamping hydraulic cylinder：￠63×1300m

4、Hydraulic station motor power：3KW --380V -- 50Hz

Solenoid valve voltage：220V 50 Hz
