Huawei rectifier module R4850N1
| Price: | US$ 88 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | ShenZhen |
Product Details
| Model No.: | R4850N1 | Brand Name: | Huawei |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Huawei rectifier module R4850N1
Input Voltage 85~300VAC Input mode 220VAC single-phase (or 110VAC dual live lines) Maximum input current ≤19.5A Frequency 45~65Hz Rated: 50Hz/60Hz |
Packaging & Delivery
| Packaging: | 1 pc/ctn |
|---|---|
| Delivery/Lead Time: | 6 |
| Production Capacity: | 666 |
Product Description

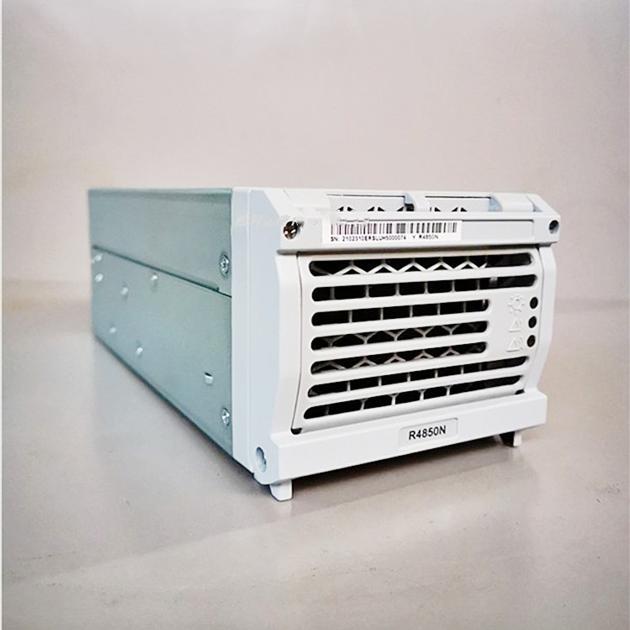

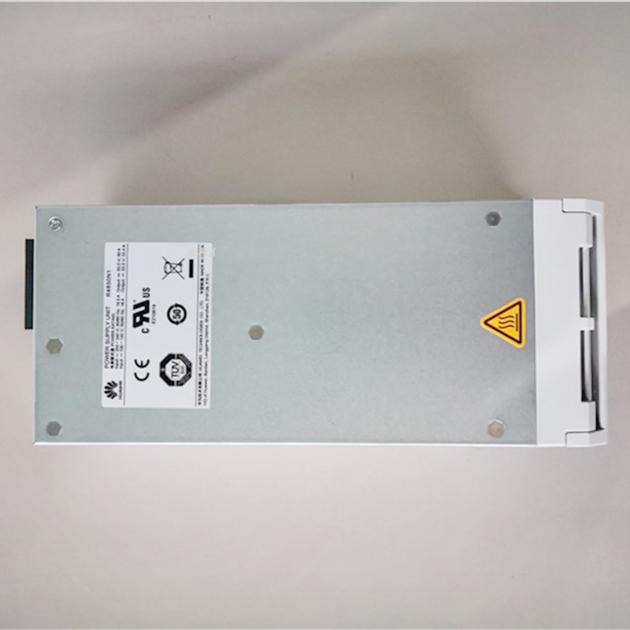

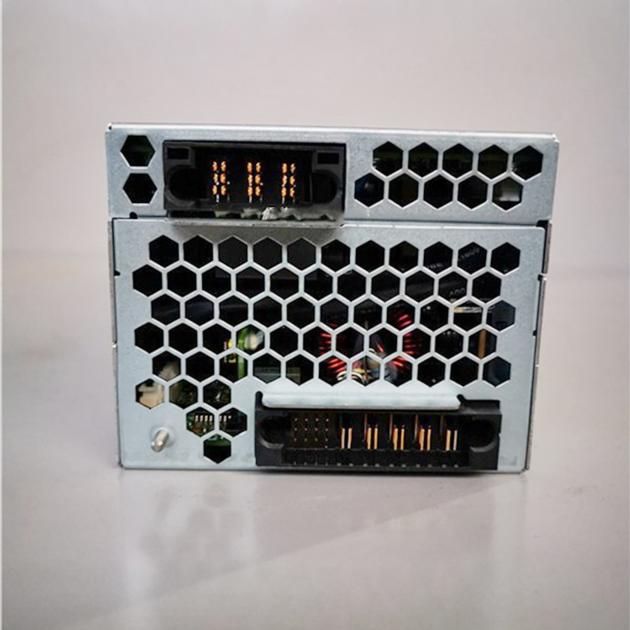

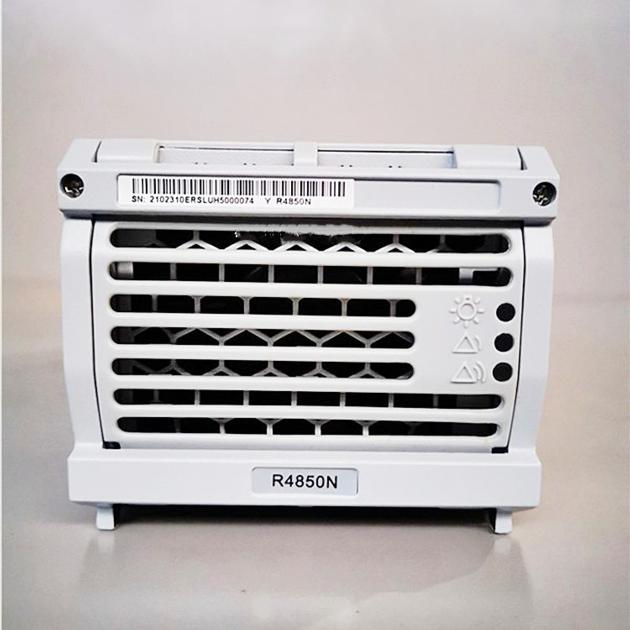

Huawei rectifier module R4850N1
Huawei Communication Base Station Power Supply Unit R4850n1
The R4850N1 is a digital rectifier that converts the 85~300VAC to 53.5 VDC and possesses the characteristics of high efficiency, high power density, walk-in start, hot-plug, complete protection, and low noise. The rectifier adopts the latest power monitoring technology, implements the function of monitoring the states of loads and the rectifier status in real-time. The output voltage of the rectifier can be adjusted through the host.
Output voltage 42~58VDC, default value: 53.5VDC
Output power 2900W(176~300VAC)
Others
Dimension 88.9(H)×103(W)×243(D)mm
Weight ≤2.8kg
Cooling Forced air cooling
Environmental Specifications
Operating temperature -40ºC~+75ºC(non-derating under 50ºC)
Storage temperature -40ºC~+70ºC
Operating humidity 5%~95%(non-condensing)
Altitude ≤4000m(If the altitude is within the range of 3000m to 4000m, the maximum operating temperature decreases by 1ºC as the altitude increases by 200m.)
|
