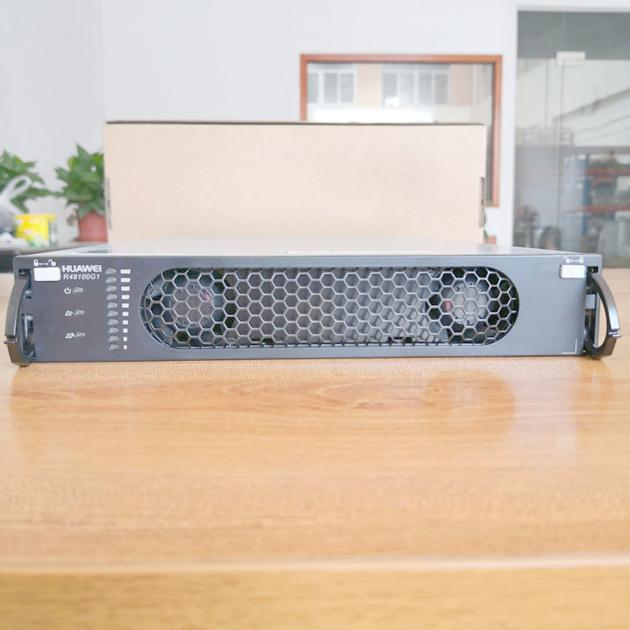

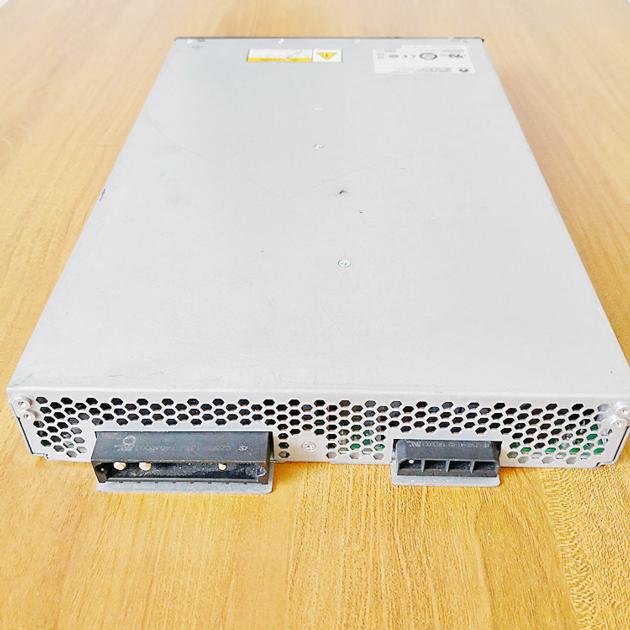

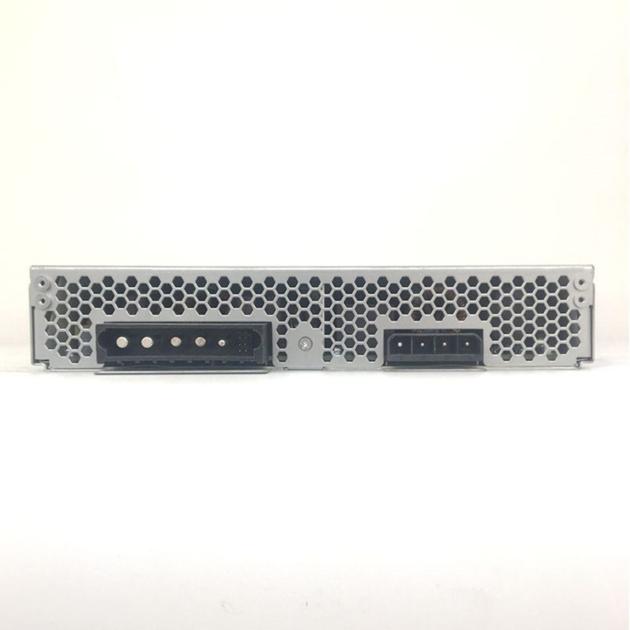

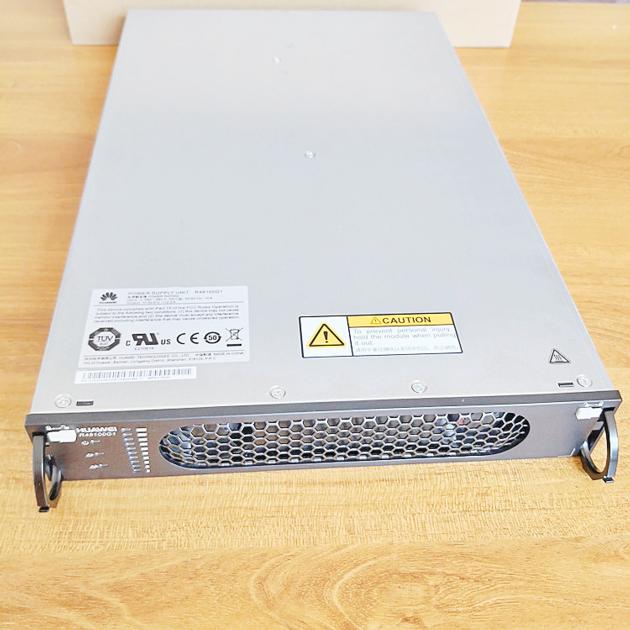

Huawei rectifier module R48100G1

Huawei rectifier module R48100G1

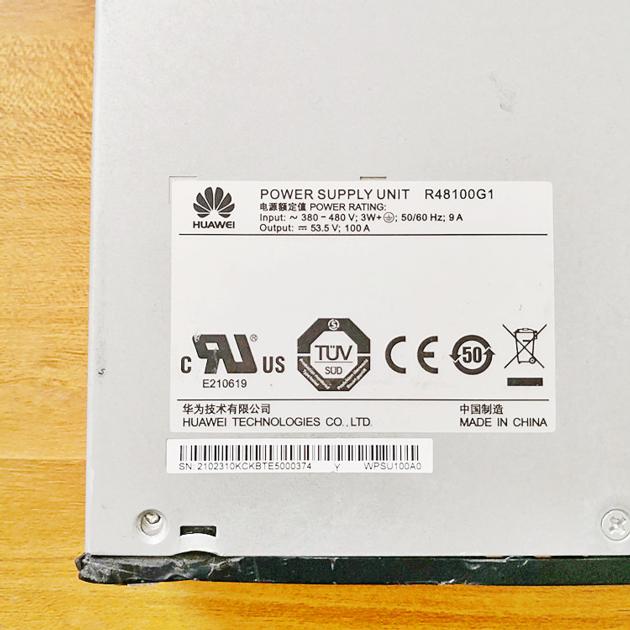

Huawei R48100G1 Rectifier Module is a digital control 3-phase rectifier with the maximum output power being 6000W. It converts 260~530VAC input voltage to 53.5VDC output voltage. The output voltage can be adjusted by the monitoring module. It has the advantages of soft start, perfect input and output protection, low noise, and parallel connection. The new power monitoring technology is adopted to realize real-time monitoring of the rectifier module and load and realize the function of adjusting the output voltage through the background.
Huawei R48100G1 Rectifier Module Product Feature
Fully digital control
Support smart meter
Meet RoHS requirements
Support LED display alarm
Support hot-swap function
Total harmonic distortion (THD)≤5%
Wide input voltage range to 260~530Vac
Wide operating temperature range -40~+75℃
Support CAN bus communication function
Support voltage and current adjustment function
Efficiency is greater than 96%, significant energy saving
Passed TUV, CE, UL certification and obtained CB certificate

Huawei R48100G1 Rectifier Module and More Related Models
Part Number Input Voltage Output Voltage Output Power Efficiency Operating Temperature
R4805G1 85-300Vac 42-58Vdc 270W 94 % -40C to +75C
R4815G1 85-300Vac 42-58Vdc 870W 96 % -40C to +75C
R4815N1 85-300Vac 42-58Vdc 1000W 94 % -40C to +75C
R4830G1 85-300Vac 42-58Vdc 1600W 96 % -40C to +75C
R4830G2 85-300Vac 42-58Vdc 2000W 96 % -40C to +75C
R4830N2 85-300Vac 42-58Vdc 1605W 94 % -40C to +75C
R4850G1 85-300Vac 42-58Vdc 3000W 96 % -40C to +75C
R4850G2 85-300Vac 42-58Vdc 3000W 96 % -40C to +75C
R4850N1 85-300Vac 42-58Vdc 2900W 92 % -40C to +75C
R4850N2 85-300Vac 42-58Vdc 3000W 94 % -40C to +75C
R48100G1 260-530Vac 42-58Vdc 6000W 96 % -40C to +75C
R33640G1 260-530Vac 300-400Vdc 15kW 97% -40C to +75C
R50030G1 260-456Vac 300-500Vdc 15kW 95.8% -30C to +65C
