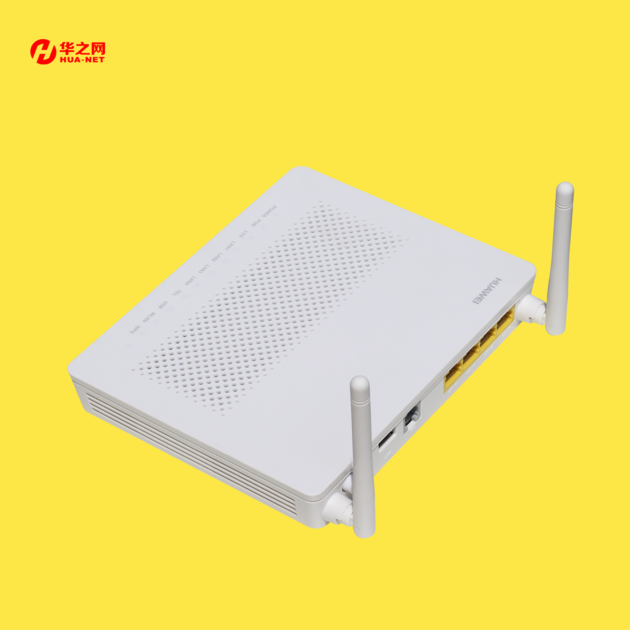

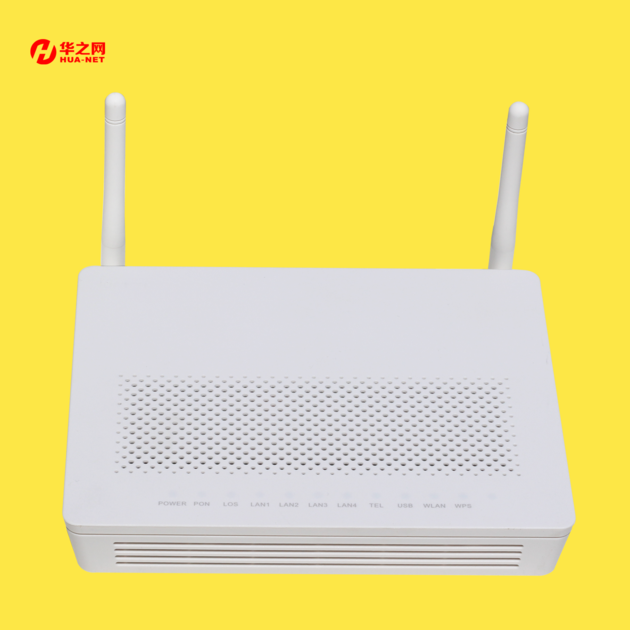

Huawei GPON ONU HG8546M 4FE+Voice+WIFI+USB GPON ONU/ONT
| Price: | US$ 21 / Piece |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | T/T,Western Union,Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | HG8546M | Brand Name: | Huawei |
|---|
| Certification: | CE,RoHs, FCC |
|---|---|
| Specification: | The EchoLife HG8546M, an optical network terminal (ONT), is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The H8546M provides 1* POTS ports, 4* FE auto-adapting Ethernet ports, and 2* Wi-Fi port. The H8546M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the H8546M provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment. |
Packaging & Delivery
| Packaging: | As huawei original carton |
|---|---|
| Delivery/Lead Time: | within 5 days |
| Production Capacity: | 5000pcs/Mon |
Product Description
Applications:
Data services
Voice services
Video services
Monitoring service
FTTH / FTTB / FTTO / FTTP
Performance Specification:
GPON features
Class B+ optical module.
Security authentication mode: SN, password or SN+ password.
Upstream/downstream FEC.
Voice features
SIP and H.248 protocols.
Media stream and signaling stream separation.
Multicast features
IGMP V2&V3 snooping/IGMP proxy.
Wi-Fi features
802.11b/g/n, certified by the Wi-Fi Alliance.
Routing features
NAT function.
Internet, IPTV and VoIP services are automatically bound to ONT ports.
Virtual server, port trigger, DMZ, and DDNS.
Maintenance features
Local management using Web and remote management using TR069 and OMCI.
Optical power monitoring.
802.1ag Ethernet OAM.
Loop-line test of POTS ports, call emulation and PPPoE dialup emulation.
Reliability features
Dual systems for software protection.
Type B protection and rogue ONT detection.
Lithium battery backup and backup battery monitoring.
Green energy-saving features
Dynamic power consumption adjustment.
With a backup battery, the guaranteed services can be selected flexibly.
Specifications
Dimensions(W x D x H)268 mm *213 mm *34 mm
Port:1POTS + 4FE + 2WiFi+USB
Average power consumption13.5 W
Operating environment Temperature: 0~+40
Humidity: 5%-95%, non-condensing
Power supply Adapter input: 100V-240 V AC, 50-60Hz;
Adapter output: 12V, 1 A
Weight About 440g (including the power adapter)
Package Dimension:
Here is package box dimension of 4FE+POTS+2WIFI GPON ONT for your reference.
30PCS for one carton. Huawei original package.
|
