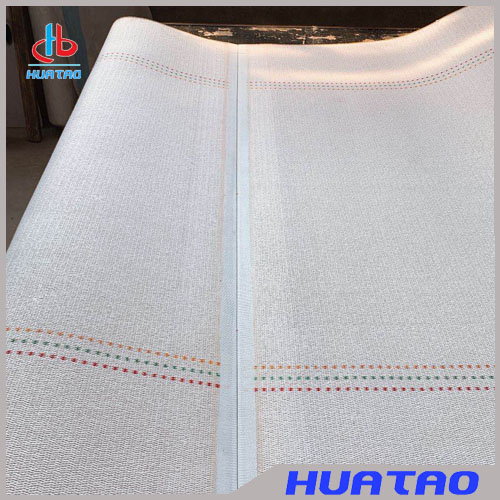

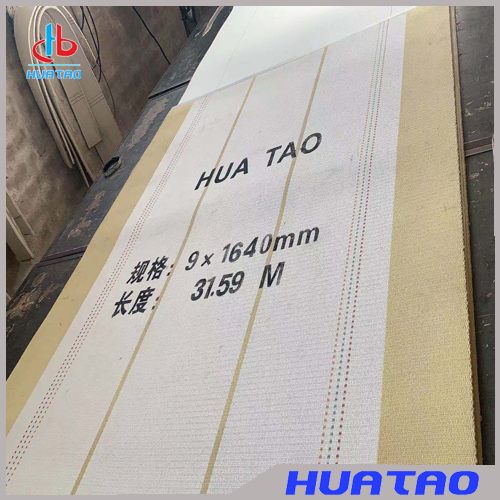

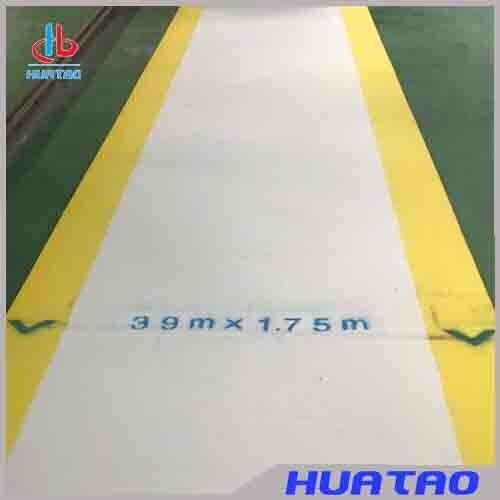

Huatao Corrugator Belt
| Price: | US$ 100 / Square Meter |
|---|---|
| Minimum Order: | 1 Square Meter |
| Payment Terms: | TT/LC/Weatern Union/Paypal |
| Port of Export: | Beijing Shanghai Tianjin |
Product Details
| Model No.: | HT001 | Brand Name: | Huatao |
|---|
| Certification: | |
|---|---|
| Specification: |
Product High Speed Corrugator Belt
Thickness 9mm Width range 1400mm - 3200mm Length 80 meters Heat-resistance 240ºC (the kevlar edge upto 350ºC) Tensile strength 70Mpa Coefficient of friction ≥ 0.40³´µ Weight per unit (7.5¯0.3)kg/m2 Air-permeability 40mm water Column 2.0m±/m2/min Seam Hot JAW lacing/Clipper with rubber coated Edge 100mm -400mm inwoven aramid edge reinforcement (kevlar) Suitable position Top belt,Bottom belt,Upper belt ,Lower belt |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | within 30 days |
| Production Capacity: | 10000 Sq Meter / Month |
Product Description
Huatao Group - Corrugator Belt & Spare Parts
www ( dot ) htwirebelt ( dot ) com
maple ( at ) huataogroup ( dot ) com
Corrugator belts Inwoven Aramid Edge is a consistent development based on the proven woven high speed corrugator belt range. Also is ideal for corrugating systems with high production speed, even load systems and frequently changing paper widths.
Corrugator belts Inwoven Aramid Edge -Features
Suitable as top belt with high speed (above 150 m/min) production
Heat and super tear resistance
Inwoven Aramid edge to reinforce the belts, reduce wear substantially and ensure a long lifetime.
Particularly for frequent changes of board width
Mostly used for all Corrugating Production Lines.
Corrugator belts Inwoven Aramid Edge- Specification
Product Corrugator Belt Inwoven Aramid Edge
Thickness 8mm-10mm
Width range 1000mm - 3200mm
Length 80 meters
Heat-resistance 240℃ (the kevlar edge upto 350℃)
Tensile strength 70Mpa
Coefficient of friction ≥ 0.40³´µ
Weight per unit (7.5¯0.3)kg/㎡
Air-permeability 40mm water Column 2.0m±/㎡ min

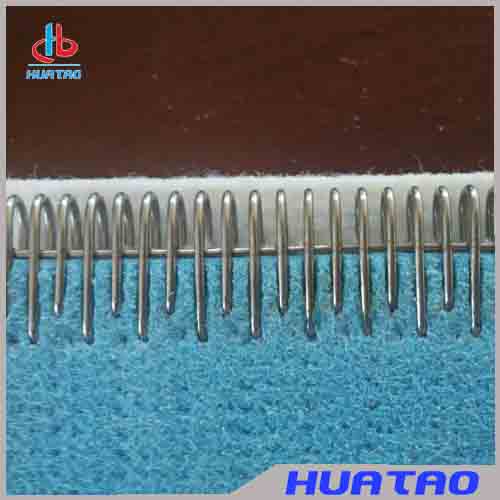

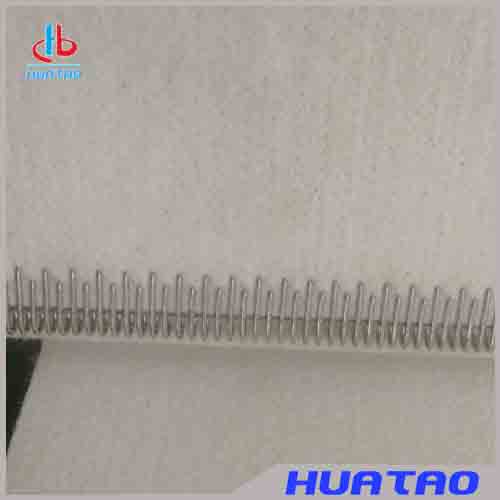

Seam Hot JAW lacing/Clipper with rubber coated
Edge 100mm or 200mm inwoven aramid edge reinforcement (kevlar)
Suitable position Top belt
Lifetime 50-70 million meter
Used on all corrugators high tearing resistance
Long life time running High abrasion resistance
Moisture absorption Heat resistance Low noise
Corrugator Belts with Silicone Coating Technical Parameters
|
