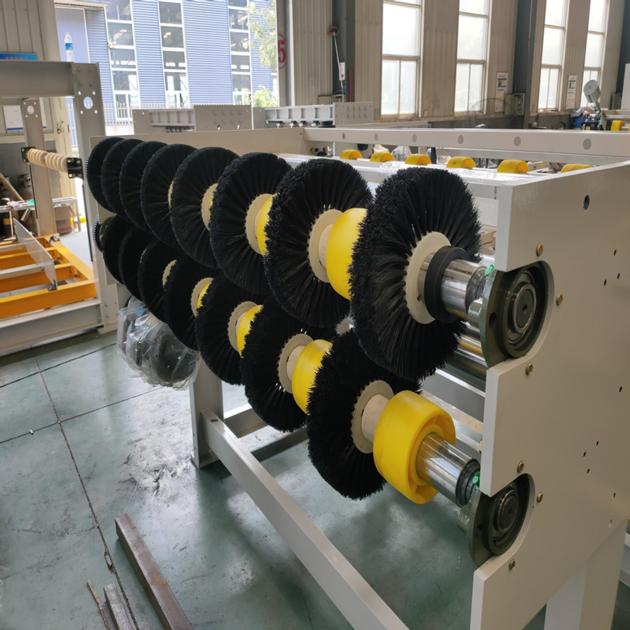

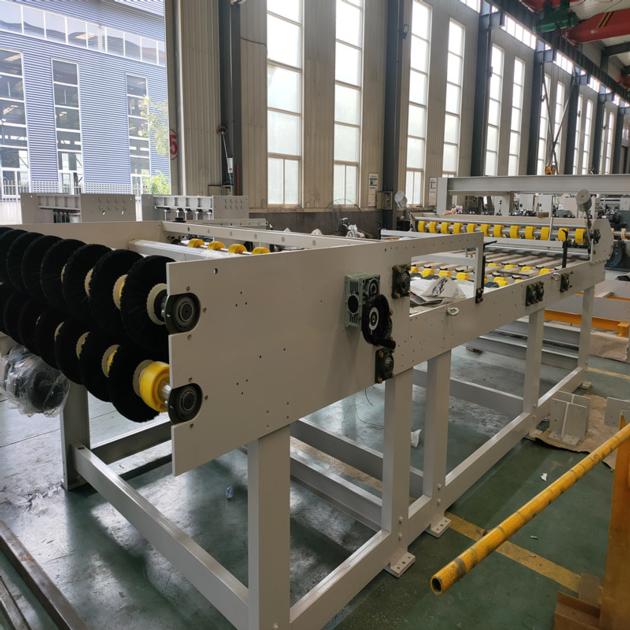

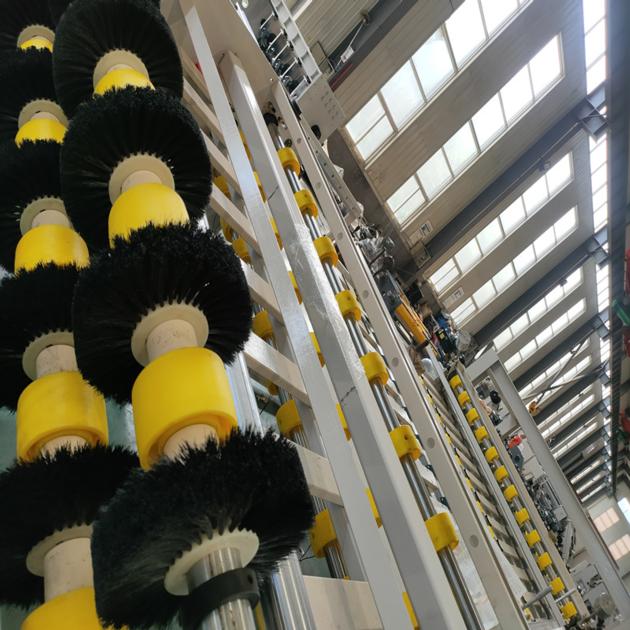

Huatao Automatic Stacker

huatao group - corrugator belt & spare parts
htwirebelt ( dot ) com
maple ( at ) huataogroup ( dot ) com
Automatic Stacker available breadth: 1400-2200mm

Specification:

Frequency conversion motor auto down stacker

Applicable to be production line whose max speed is 180m/min

Max sheet length: 3500mm, max stacking height: 1500mm

Connected with production management system, it can read order and change order, which make the orders apart correct and fast. it also can work by itself

Stacking of multi orders

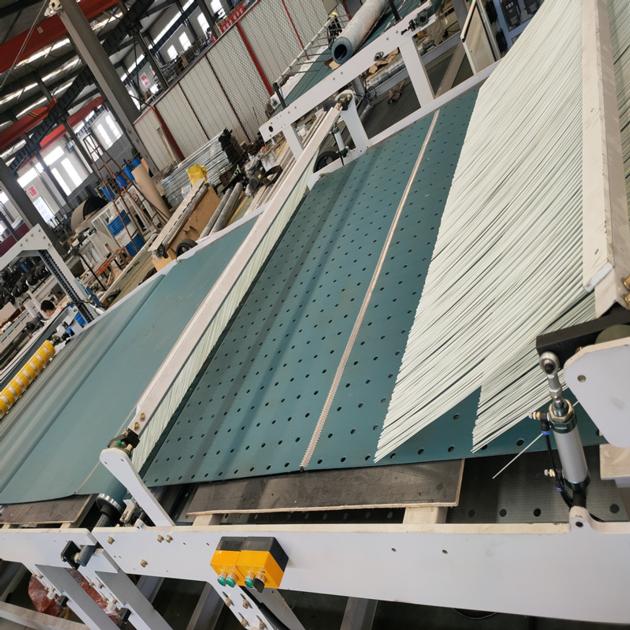

Conveyer belt was separated to be 4 sections, driven by ac frequency conversion motor, running synchronized with the production line, it brings the suitable stack proportion according to the sheet length, which make paper board stack in good order

Transducer control the frequency conversion motor to drive the roller running，speed up and down stably, board come out easily，hard to be overturn

Transducer control the brake motor to drive the elevator，with counterbalance，speed up and down stably, speed counterchanges reasonably, make stacking more free and get rid of the paper board crease, improved the life of machine

Rolls forms close, and lift with elevator, to reduce the waste

Gross power: 30kw
WIDTH（MM） DIMENSION (L X W X H)（MM） WEIGHT（T） GROSS POWER（KW）
1400 17000×2400×3200 9 24
1600 17000×2600×3200 10 24
1800 17000×2800×3200 11 24
2000 17000×3000×3200 12 24
2200 17000×3200×3200 13 24
