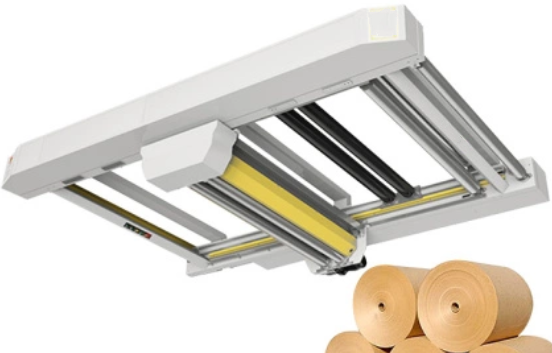

Huatao Auto Splicer For Corrugated Cardboard Production Line

huatao group - corrugator belt & spare parts
htwirebelt ( dot ) com
maple ( at ) huataogroup ( dot ) com
Product Description
The Auto Splicer functions as a central element for smooth, continuous operation, fast and helps to increase production output and saving production cost during the corrugated cardboard production process.

Auto Corrugated Plant Automatic Splicer Function:
1. No paper tail connecting, reduce the loss of the base paper
(the overlap of the base paper about 40mm width).
2. When the paper truck remove, automatically transferred
out,vacuum-adsorbed, easy to operate, and fully automatictension control, paper-connecting zero error.
3. All adopt PLC automatic control.
4. When the buffer wheel pull for the first time, it's easy to pull
and aligned automatically.
5. Collecting paper controlled by cylinder, will not cause the broken tile and blistering problem.

Design speed: Model 300-280 m/min(Flute liner)250m/min(Top liner)
Model 400-380 m/min(Flute liner)250m/min(Top liner)
Paper Connection: overlap connecting
Design width: the maximum paper width can reach 2550mm
Weight of the original paper: 50g/m2~350g/m2
Paper reaction completion time: about 1 second
Gas source: a minimum of 0.6MPa dry clean air source
Power demand: power supply:380V, 50Hz, 20A control power:12V,24V
Paper frame brake: pneumatic brake/ magnetic powder brake
