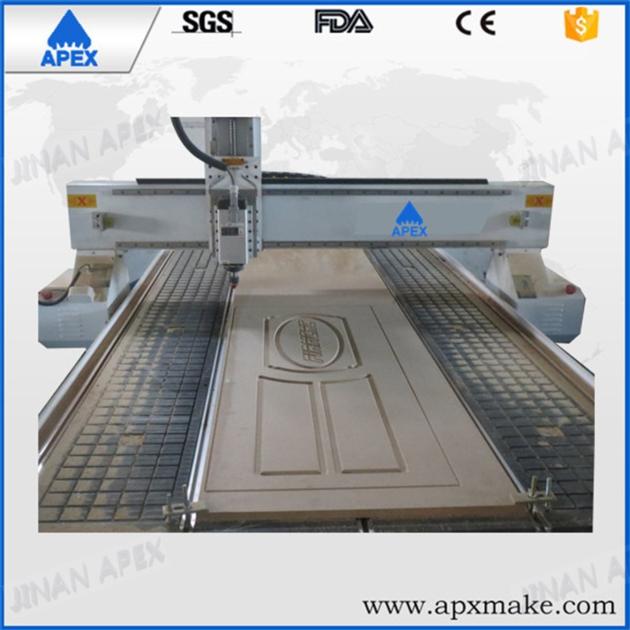

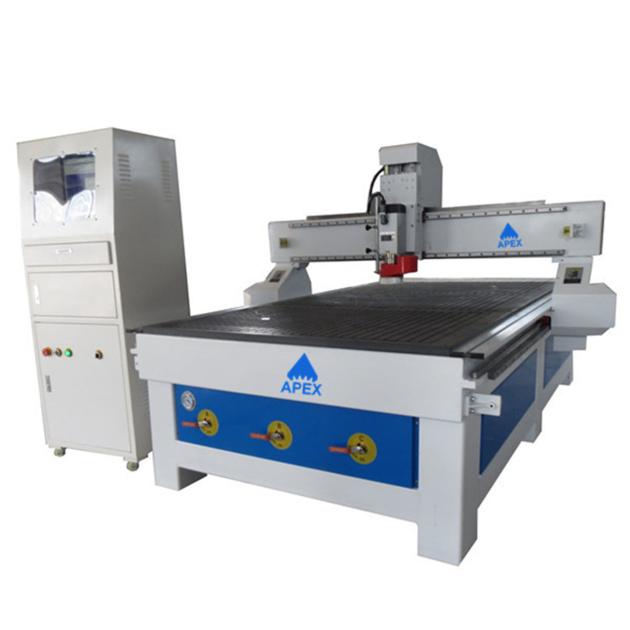

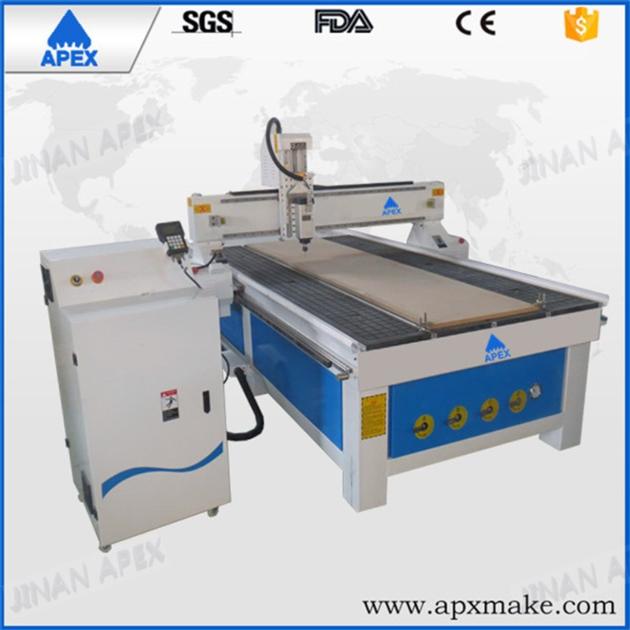

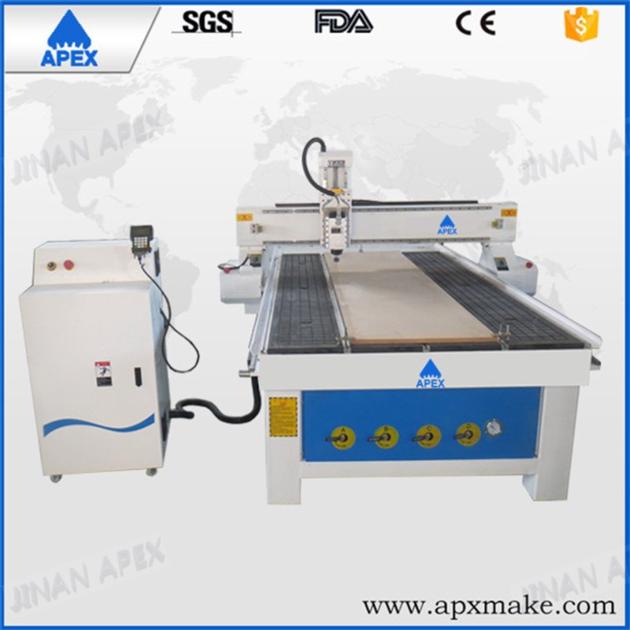

Hot sale woodworking cnc router engraver and cutter machine APEX-1325
| Price: | US$ 8000 / Set |
|---|---|
| Minimum Order: | 1Sets |
| Payment Terms: | T/T,PAYPAL |
| Port of Export: |
Product Details
| Model No.: | APEX-1325 | Brand Name: | APEX |
|---|
| Certification: | CE,FDA,SGS |
|---|---|
| Specification: |
Quick Details:
Condition:New CNC or Not:CNC Place of Origin:Shandong, China (Mainland) Brand Name:APEX Model Number:APEX-1325 Voltage:220V/380V Power(W):4.5KW HSD Italy air cooling spindle Dimension(L*W*H):1300*2500*200mm Weight:2000kg Certification:CE ISO Warranty:2 Years After-sales Service Provided:Engineers available to service machinery overseas. Control system:Nc-studio Spindle:4.5kw ITALY HSD Air Cooling Spindle Spindle power:4.5kw Air Cooling Software:Ucancam / ArtCam/TYPE3 Motor:Japan Yaskawa Servo Motor Transmission:Taiwan TBI Ball Screw Working area:1300*2500mm Inverter:Taiwan Delta Inverter Application:Wood working |
Packaging & Delivery
| Packaging: | Standard export cases |
|---|---|
| Delivery/Lead Time: | 20 days after payment |
| Production Capacity: | cnc router |
Product Description
Product Description:
Features :
1. High frequency ATC HSD 9.0kw spindle
2. High stable servo motors and drivers
3. Japan shimpo reducer coupled directly to servo motors
4. Pneumatic material alignment stop
5. 4-zone double-layer vacuum tables with 84 vacuum holes
6. Hand-held pulse generator with rotary hand wheel controls the axis selected
7. Open architecture works with all industry and standard CAD/CAM softwarer
Technical Parameters:
Product name CNC engraving cnc router machine 1325
Model APEX-1325
Engraving area (W*L*thickness)(mm) 1300*2500*200mm
Motor Driver Japan Yaskawa servo motor
Transmission System Taiwan TBI ball screw transmission

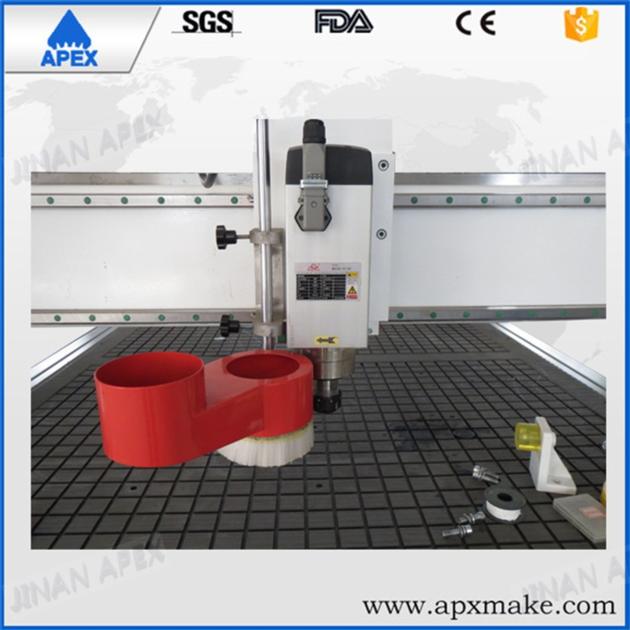

Spindle Power 4.5KW air cooling spindle
Spindle Rotate(rpm) 0~24000rpm
Machine Structure Industry square tube structure
Max air move speed 25000mm/min
Max working speed 12000mm/min
Working Voltage AC380V/50 60Hz AC220/50 60hz
Machine Net Weight 1500kg
Support Format G Code
Range of Application Woodworking relief engrave ,Cutting
Our Services:
*Two years warranty for the whole machine.
*Teach video and detailed manual sent with the machine.
*24 hours online support.
*Professional technical support
*Free design and guide for customer
*Free software update
*We can supply the new machine parts or fix the old one.
