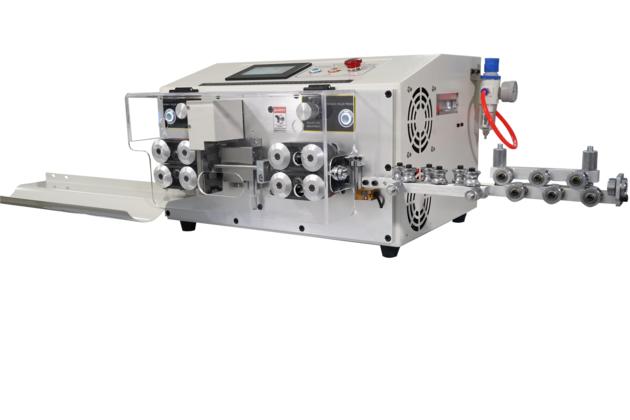

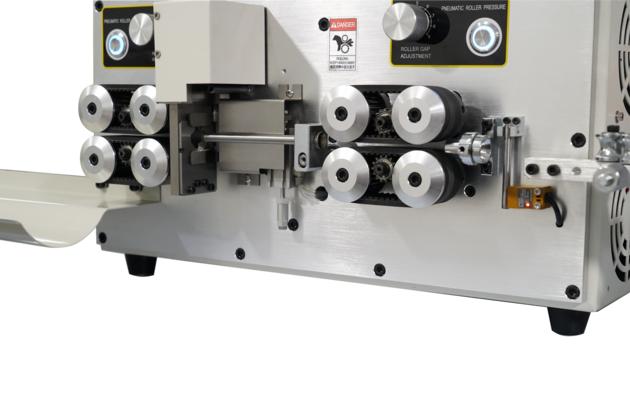

High speed round sheath inner and outer double layer peeling machine
| Price: | US$ 1025 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: |
Product Details
| Model No.: | HL-YHT3 | Brand Name: | Hilong |
|---|
| Certification: | |
|---|---|
| Specification: | (With forward and reverse straightener)(Disconnection device and protective cover are optional) |
Packaging & Delivery
| Packaging: | CASE |
|---|---|
| Delivery/Lead Time: | 7 |
| Production Capacity: |
Product Description
Product link:https://*/product-detail/High-speed-round-sheath-inner-and_1600971148837.html?spm=a2747.manage.0.0.a36171d2ZeL8rh Weight：38KG
Electrical connection: 110V/220V 50HZ/60HZ
Power：300W
Operation interface: 4.3 inch Chinese and English switching touch screen display
Machine dimension: 450*420*335mm
Wire cross section: ￠2-7mm (Round sheath wire)
Number of wire cores that can be processed: 2 cores, 3 cores, 4 cores
Air pressure: 0.8Mpa
Max conduit inside diameter: ￠9mm
Length accuracy： ¯ 0.2mm
Wire length range：Max 9999mm
Outer wire strip length：Front end:1- 150; rear end:1- 150mm
Blade material: high-speed steel
Transport speed: (L=200MM piece/hour） 2000-3000 pieces
Driving mode: four-wheel drive (silent hybrid stepper motor, 0. 1mm forward per step)
Our service.
----Purchase Guidance
If not sure which one is your best choice within the budget, please provide the details or samples to us. We will provide the best solutions and machines.
----After Sale Services
Dongguan Hilong Machinery Equipment Co., ltd provides life long support after sale including operation guidance, parts repalcement and maintainance support. Just feel free to contact us.
----Technology counsultion
Any question about wires, cables, machinery, even the production line please feel free to contact us. We can provide reasonable budget and suggestions.
----OEM Services
We provide OEM services, customary packing, and specified packing.
|
