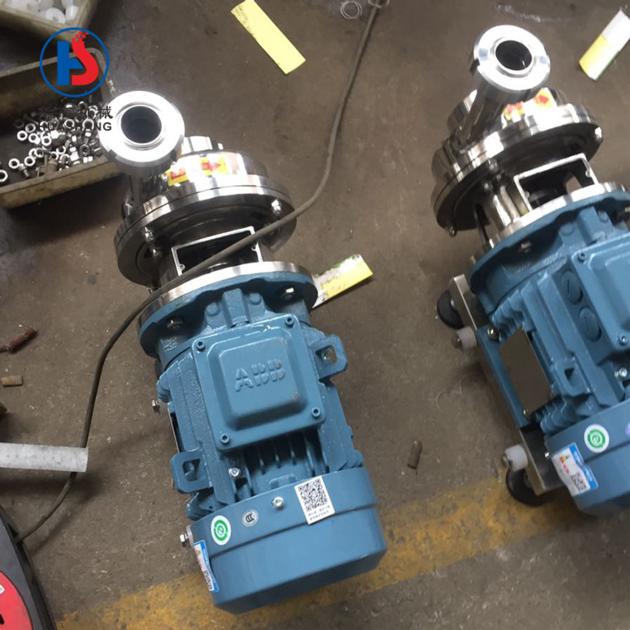

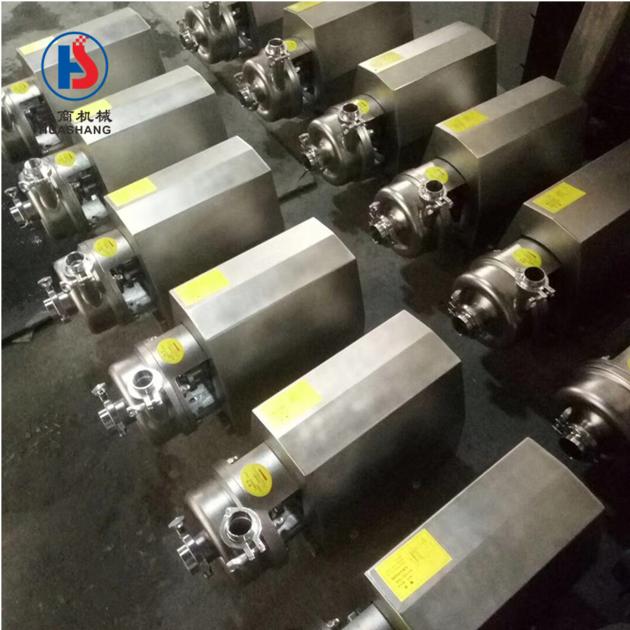

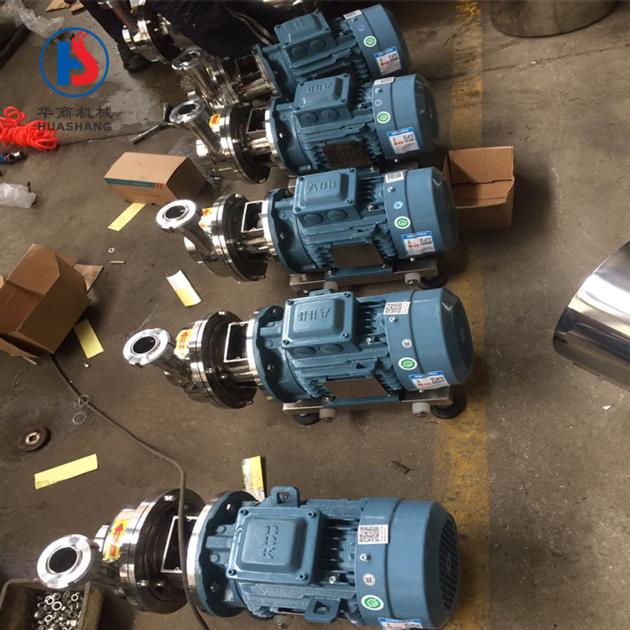

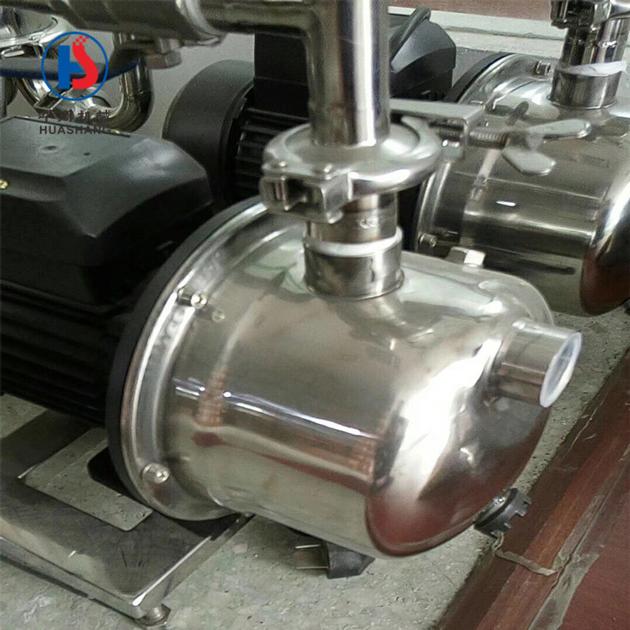

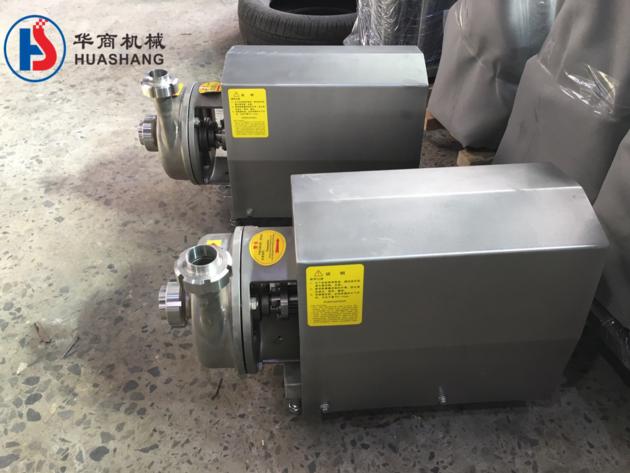

High quality SS304 and SS316 Stainless Steel High Viscosity Sanitary Rotor Pump
| Price: | US$ 320 |
|---|---|
| Minimum Order: | 1set |
| Payment Terms: | T/T |
| Port of Export: | Ningbo/Shanghai/Guangdong |
Product Details
| Model No.: | 300-50000L/H | Brand Name: | Huashang |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Application Scope
1. Dairy products: yogurt, cream, ice cream, cheese and whey. 2. Beverages: beer, wort, yeast, soft drinks, fruit concentrates, fruit drinks. 3. Food: tomato sauce, vegetable paste, seasoning, sweeteners, yeast paste, salad, meat emulsion, edible oil. 4. Candy: syrup, cream stuffing, fruit puree, fruit filling, pudding, jam, jelly, chocolate. 5. Cosmetics: creams and lotions, hair gels, hair dyes, essential oils. 6. Drugs: Pill, extract, emulsion, paste. 7. Chemicals: fats, solvents, resins and polymers, dyes. Advantages (1) Steady delivery without pulsation, little vibration and noise (2) Outstanding self-priming ability. (3) The pump can deliver the varied corrosion mediums if the proper material of parts selected. In addition, the working temperature can reach 200 ®C. (4) The same rotary direction of internal rotor and outside rotor results in little wear and long operation life. (5) The pump's flow capacity can be changed through adjusting the speed. (6) It's specially suited to deliver high visc medium. |
Packaging & Delivery
| Packaging: | Wooden box package |
|---|---|
| Delivery/Lead Time: | 30days |
| Production Capacity: | 10000sets per year |
Product Description
Rotor pump is also named colloid pump, three-lobe pump, sole pump, etc. When the 2 simultaneous reverse rotating rotors (with 2-4 gears) revolve, it produces suction force at the inlet (vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revolve in the sequence of a-b-c-d. When it revolves to position a, only housing | is filled with medium, when it revolves to position b, housing B encloses medium, and finally it goes to position d, then housing A,B and || are interlinked and the medium is transported to the outlet. As this process is repeated, medium (material) is transported continuously. sanitary stainless steel rotor pump.
Special Structure
1. Butterfly rotor pump: with butterfly rotor, it is superior to other rotor pump when transferring material with high viscosity and larger powder and effectively transports extremely stiff material.
2. Singe butterfly curved rotor pump (powder rotor pump): this pump series are specially design to transport material with larger powder. Its unique shape and curve makes it more outstanding compared to other pumps in delivering material with larger powders. It effectively prevents powders from clashing, which is the top choice of pumps transferring material with powders.
3. Widely used to deliver: various special material, stiff material, mixture with different specific gravity, corrosive material and material with larger power.Capacity / per centrum rotate, range speed, corresponding discharge
|
