High pressure micro electric dc brushless circulation dc mini water pump 12 Volt
Price: | US$ 32 |
---|---|
Minimum Order: | 1 |
Payment Terms: | VISA,TT,LC,DA,WESTERN VNION,MONEYGRAM.PAYPAL |
Port of Export: | Shanghai, Shenzhen |
Product Details
Model No.: | TC-C01 | Brand Name: | TOPSFLO |
---|
Certification: | ROHS,UL,CE,REACH |
---|---|
Specification: |
Specification: Model Product Code Max Water Flow (L/Min) Rated Voltage(DC) Rated Current (A) Max Water Head(M) Rated Power(W) Speed (RPM) C01 TL-C01-A12-1706 17 12VDC 2.0 6 24 4950 TL-C01-B12-1606 16 12VDC 2.0 6 24 4950 TL-C01-C12-1706 17 12VDC 2.0 6 24 4950 TL-C01-D12-1606 16 12VDC 2.0 6 24 4950 TL-C01-A12-2008 20 12VDC 2.8 8 33.6 5750 TL-C01-B12-1908 19 12VDC 3 8 36 5750 TL-C01-C12-2008 20 12VDC 2.8 8 33.6 5750 TL-C01-D12-1908 19 12VDC 3 8 36 5750 TL-C01-A24-1908 19 24VDC 1.33 8 31.92 5750 TL-C01-B24-1808 18 24VDC 1.33 8 31.92 5750 TL-C01-C24-1908 19 24VDC 1.33 8 31.92 5750 TL-C01-D24-1808 18 24VDC 1.33 8 31.92 5530 TL-C01-A24-2411 24 24VDC 2 11 48 6400 TL-C01-B24-2211 22 24VDC 2 11 48 6400 TL-C01-C24-2411 24 24VDC 2 11 48 6400 TL-C01-D24-2211 22 24VDC 2 11 48 6400 (customized functions) 1.PWM, 0~5V speed control, 2.Submersible 3.Solar panel driven directly 4.FG(RPM) signal wire |
Packaging & Delivery
Packaging: | |
---|---|
Delivery/Lead Time: | |
Production Capacity: |
Product Description

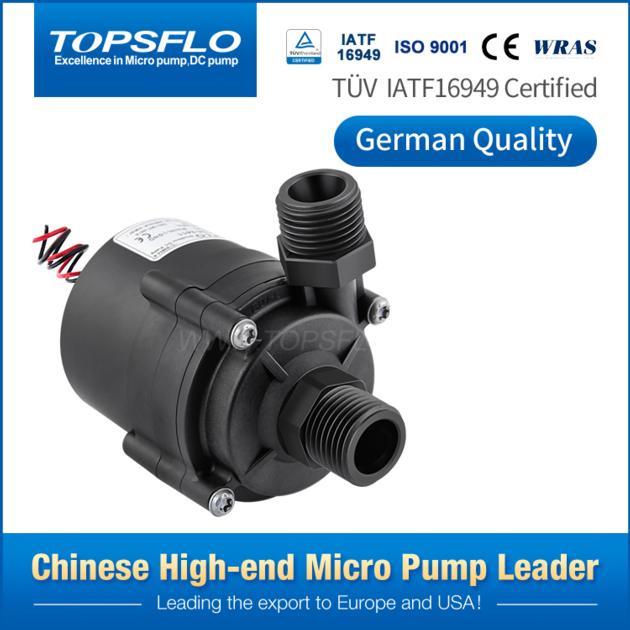

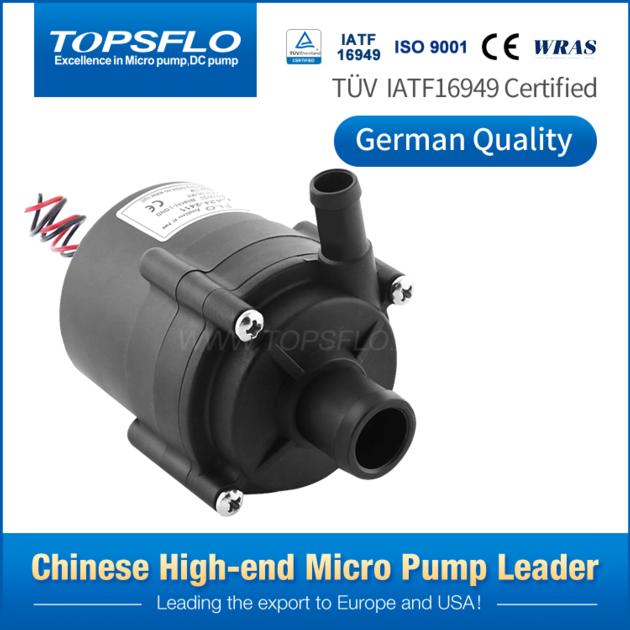

High pressure micro electric dc brushless circulation dc mini water pump 12 Volt Φ Advanced magnetic driving technology for static-seal,without any leakage forever
Φ Heavy duty work,can sustain continuous 24hours work
Φ High efficiency ECM brushless DC motor with long lifetime 20,000hours
Φ 3-phase motor for lower power consumption and lower fever
Φ Durable permanent magnetic rotor/impeller and fine ceramic shaft
Φ Specializing closed-type impeller for lower water loss bring higher efficiency
Φ High precision one-time injection magnetic rotor for stable lower vibration
Φ High temperature materials for liquid temperature ≥100®C
Φ Low or no maintenance
Φ Food grade materials
Φ Imported Japan XYRON PPE material, certificated by WRAS .
Specification:
Model Product Code Max Water Flow (L/Min) Rated Voltage(DC) Rated Current (A) Max Water Head(M) Rated Power(W) Speed
(RPM)
C01 TL-C01-A12-1706 17 12VDC 2.0 6 24 4950
TL-C01-B12-1606 16 12VDC 2.0 6 24 4950
TL-C01-C12-1706 17 12VDC 2.0 6 24 4950
TL-C01-D12-1606 16 12VDC 2.0 6 24 4950
TL-C01-A12-2008 20 12VDC 2.8 8 33.6 5750
TL-C01-B12-1908 19 12VDC 3 8 36 5750
TL-C01-C12-2008 20 12VDC 2.8 8 33.6 5750
TL-C01-D12-1908 19 12VDC 3 8 36 5750
TL-C01-A24-1908 19 24VDC 1.33 8 31.92 5750
TL-C01-B24-1808 18 24VDC 1.33 8 31.92 5750
TL-C01-C24-1908 19 24VDC 1.33 8 31.92 5750
TL-C01-D24-1808 18 24VDC 1.33 8 31.92 5530
TL-C01-A24-2411 24 24VDC 2 11 48 6400
TL-C01-B24-2211 22 24VDC 2 11 48 6400
TL-C01-C24-2411 24 24VDC 2 11 48 6400
TL-C01-D24-2211 22 24VDC 2 11 48 6400
(customized functions)
1.PWM, 0~5V speed control,
2.Submersible
3.Solar panel driven directly
4.FG(RPM) signal wire
Motor High performance 3-phase motor
12V Highest operating voltage 18V
12V Starting voltage 6V
24V Highest operating voltage 28V
24V Starting voltage 12V
Working rated Continuous
Noise ≤45dB(A) from 1M Distance
Life length 20000H
Coil Insulation class Class F
Liquid temperature 0~105ºC
Media Water, antifreeze,other
Power Supply DC power supply, battery, solar powered
Remarks Can't dry-running, not Self-priming
The technical parameters above is only for your reference, for more details , please feel free to contact us.
water pump (3).jpg
1. Liquid transfer general purpose pumping 2. Hot water circulating system
3. Electronics Cooling Water Circulation Chiller Systems
4. Liquid filling and transfer in food, beverage processing, vending machines
5. Instant electric water heater, electric shower.
6. Circulating systems for homes, RV's and boats
7. Cleaning equipment, purification and water treatment.
8. Irrigation solar pump, swimming pool circulation 9. Electric cars: radiators, heaters
10.Medical machine cooling
Packaging & Shipping
Delivery time
1.The stock samples can be sent to you within 3-5 days by international express after received
2.The batch order can be shipped to you in about 20-40days after order confirmation (by air or by sea)
