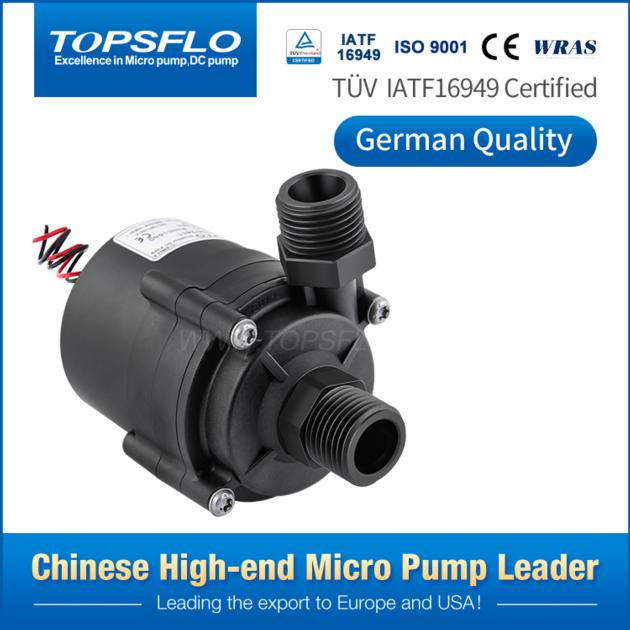

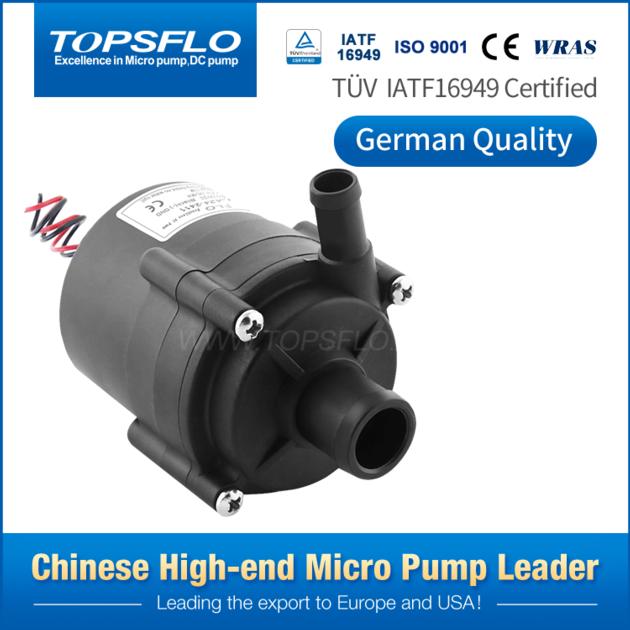

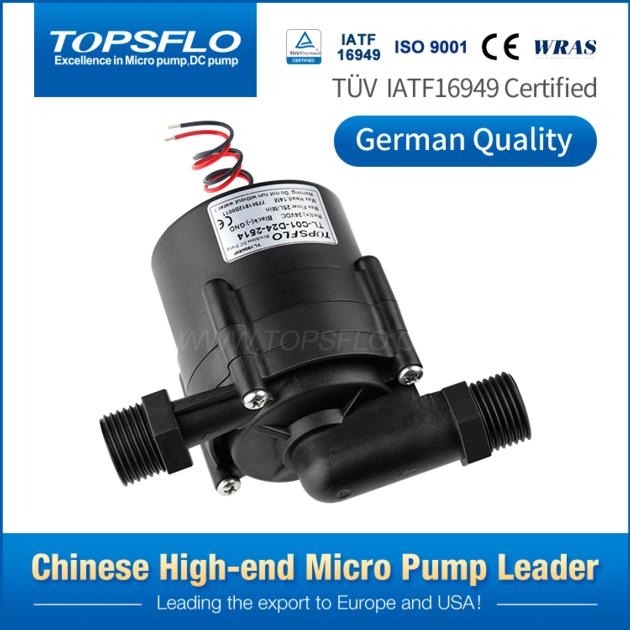

High pressure micro 12V 24V dc brushless hot water booster shower heater pump

High pressure micro 12V 24V dc brushless hot water booster shower heater pump



Remarks:
- We are high-end Brushless DC pumps manufacturer. Can provide customized services
- If you are interested in our products, pls feel free to contact us

Company Information
topsflo contact

Φ Advanced magnetic driving technology for static-seal,without any leakage forever
Φ Heavy duty work,can sustain continuous 24hours work
Φ High efficiency ECM brushless DC motor with long lifetime 20,000hours
Φ 3-phase motor for lower power consumption and lower fever
Φ Durable permanent magnetic rotor/impeller and fine ceramic shaft
Φ Specializing closed-type impeller for lower water loss bring higher efficiency
Φ High precision one-time injection magnetic rotor for stable lower vibration
Φ High temperature materials for liquid temperature ≥100®C
Φ Low or no maintenance
Φ Food grade materials
Φ Imported Japan XYRON PPE material, certificated by WRAS .




Specification:


Model Product Code Max Water Flow (L/Min) Rated Voltage(DC) Rated Current (A) Max Water Head(M) Rated Power(W)
C01 TL-C01-A12-1706 17 12VDC 2.0 6 24
TL-C01-B12-1606 16 12VDC 2.0 6 24
TL-C01-C12-1706 17 12VDC 2.0 6 24
TL-C01-D12-1606 16 12VDC 2.0 6 24
TL-C01-A12-2008 20 12VDC 2.8 8 33.6
TL-C01-B12-1908 19 12VDC 3 8 36
TL-C01-C12-2008 20 12VDC 2.8 8 33.6
TL-C01-D12-1908 19 12VDC 3 8 36
TL-C01-A24-1908 19 24VDC 1.33 8 31.92
TL-C01-B24-1808 18 24VDC 1.33 8 31.92
TL-C01-C24-1908 19 24VDC 1.33 8 31.92
TL-C01-D24-1808 18 24VDC 1.33 8 31.92
TL-C01-A24-2411 24 24VDC 2 11 48
TL-C01-B24-2211 22 24VDC 2 11 48
TL-C01-C24-2411 24 24VDC 2 11 48
TL-C01-D24-2211 22 24VDC 2 11 48

(customized functions)

1.PWM, 0~5V speed control,
2.Submersible
3.Solar panel driven directly
4.FG(RPM) signal wire


Motor High performance 3-phase motor
12V Highest operating voltage 18V
12V Starting voltage 6V
24V Highest operating voltage 28V
24V Starting voltage 12V
Working rated Continuous
Noise ≤45dB(A) from 1M Distance
Life length 20000H
Coil Insulation class Class F
Liquid temperature 0~105ºC
Media Water, antifreeze,other
Power Supply DC power supply, battery, solar powered
Remarks Can't dry-running, not Self-priming
The technical parameters above is only for your reference, for more details , please feel free to contact us.


Application:

1. Liquid transfer general purpose pumping

2. Instant electric water heater, electric shower.
3. Electronics Cooling Water Circulation Chiller Systems
4. Heating system,Gas boiler
5. Hot /cooling water circulating system

6. Boosting applications
7. HVAC system

8.Medical machine cooling


Packaging & Shipping
Delivery time

1.The stock samples can be sent to you within 3-5 days by international express after received
2.The batch order can be shipped to you in about 20-40days after order confirmation (by air or by sea)
