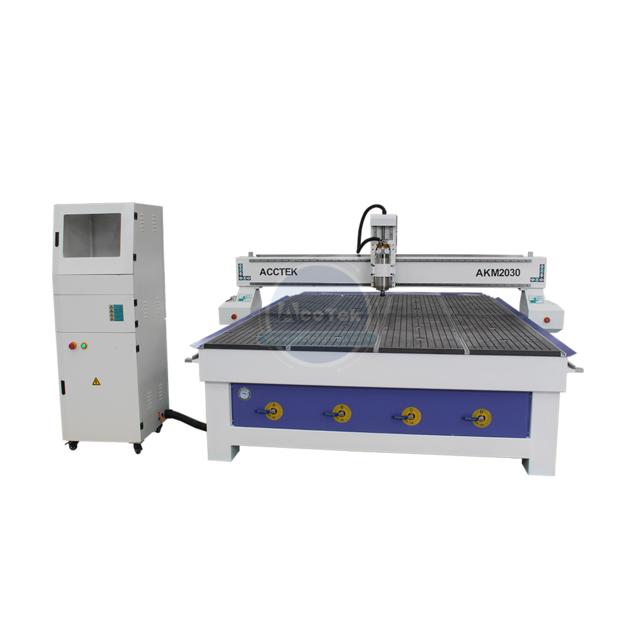

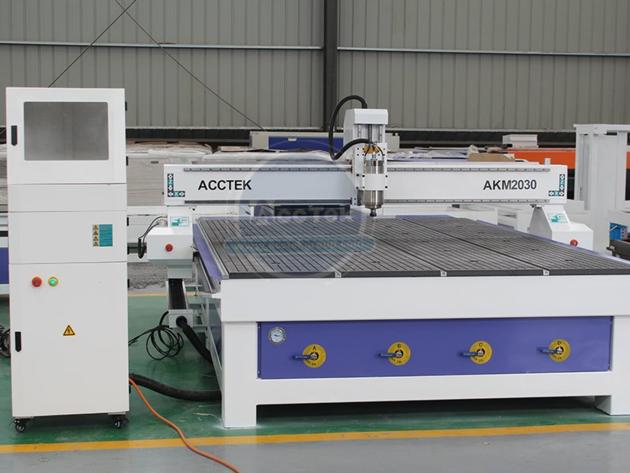

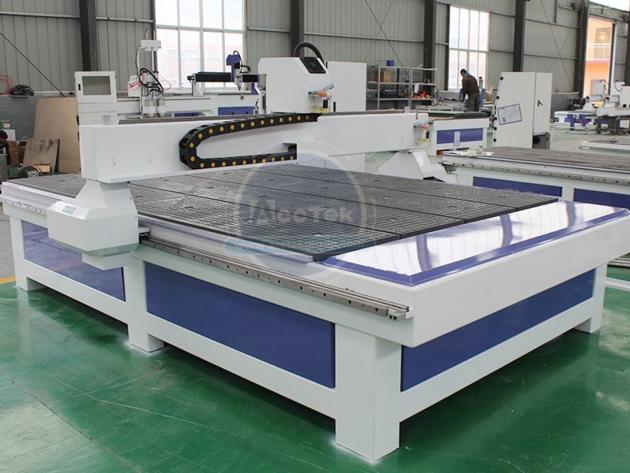

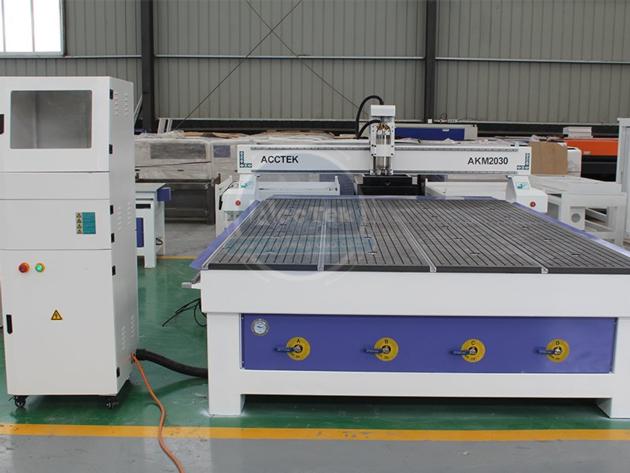

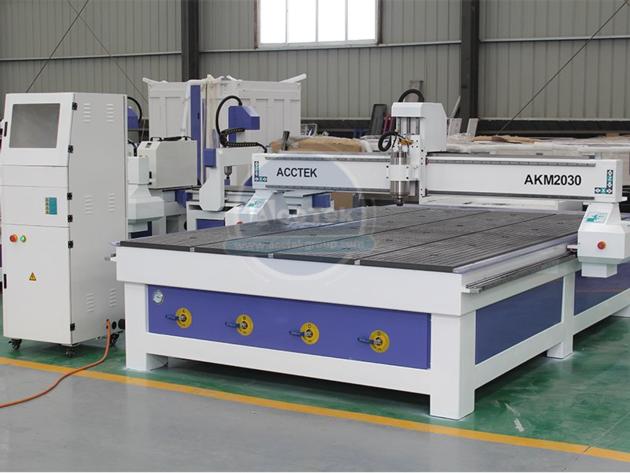

High precision woodworking cnc machine wood router

Main configuration of wood cnc router 2030.

# Heavy duty structure, high atability
# Working area: 2000*3000*200mm
# 3.0kw changsheng water cooling spindle
# Mach3 control system with USB interface
# NEMA34 stepper motors and Leadshine M860 drivers
# XY by gear, Z by Taiwan TBI ball screw
# Taiwan high accuracy PMI 20mm linear square guide rails
# PVC T-slot table with aluminum profile
# Shanghai Fuling inverter
# Filter
# Tool sensor
# Water pump
# 1 set woodworking bits and 1 sets advertising bits
# Controller cabinet
# 2 sets manual oil alubrication device
# Standard tools box for installation and maintence
# Manual book and 8GB flash disk for manual instruction
# ArtCam and Type3 software for the machine



Machine features of wood cnc router 2030.

(1) The vacuum pump holds tightly the carving materials which makes operating more reliable an convenient.

(2) Leading rack rotation with high speed and strength.air speed can be 50m/min,when working in wave board also can be 25m/min.

(3) Our software is compatible with type3/artcam/castmate/weitai and so on .

(4) Advanced USB connection with DSP operating system,fast &smooth processing,our routers can completely work off-line.

(5) The whole welding structure is shaped through tempeing treatment,making it solid and long lasting.
