High amplitude vibrating screen for high humidity material

High amplitude vibrating screen for high humidity material
Applications of High amplitude vibrating screen for high humidity material:
1. High amplitude vibrating screen for high humidity material is to solve the wet viscous material depth screening equipment, especially for less than 10mm wet sticky coal screening.

2. High amplitude vibrating screen for high humidity material is mainly used for coal (particle size grading), power (CFB boiler fine particle screening), metallurgy (particle size grading) and other industries.

3. Dry sieving of fine grained wet adhesive materials.

4.Widely used in anthracite, paper chip, incinerator slag, bauxite, phosphate magnesium ore, sintered ore and other materials.

Overview of High amplitude vibrating screen for high humidity material:

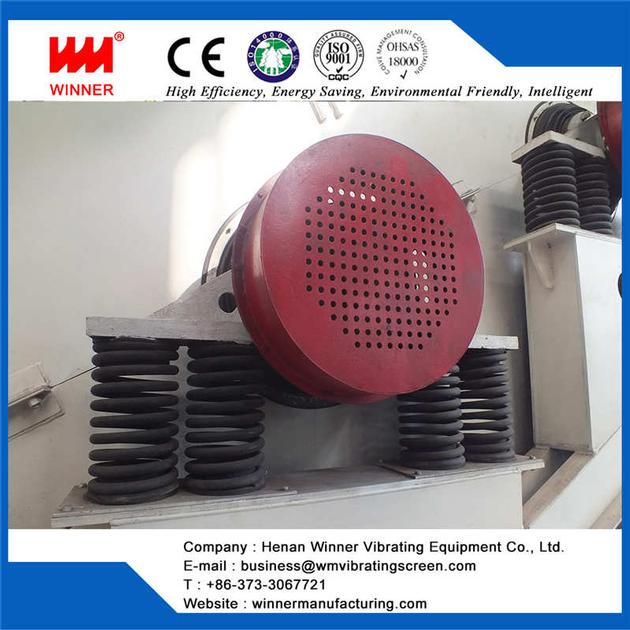

1. High amplitude vibrating screen for high humidity material is composed of sealing cover, screen box, sieve plate, dust removing mouth, exciter, soft connecting device and damping spring.

2. High amplitude vibrating screen for high humidity material is the use of large amplitude, large vibration intensity, low vibration frequency and self-cleaning screen surface to complete wet viscous material screening process.

3. High amplitude vibrating screen for high humidity material is not an integral part of the vibration, the screen machine side panels, roof, base is a fixed part, only the sieve plate and exciter assembly to participate in vibration.

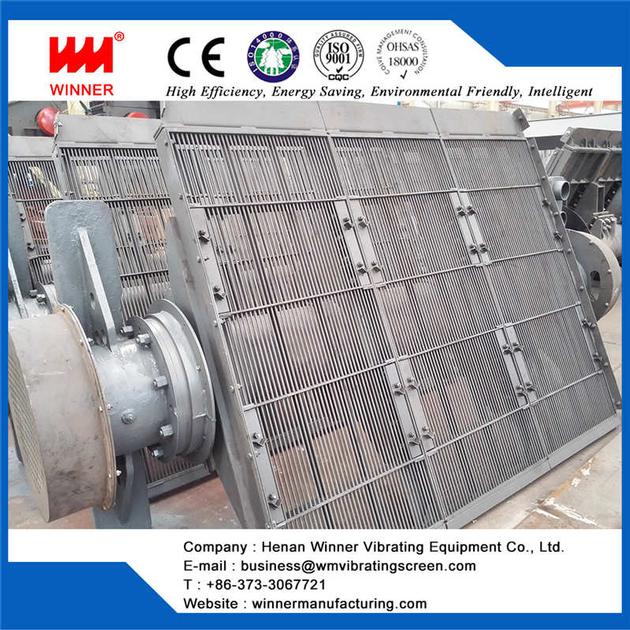

4. High amplitude vibrating screen for high humidity material is a special steel bar and frame composition, the bars were arranged vertically, the whole screen in the vibration, at the same time each bar there is also an active gap, and do secondary vibration, to maximize the elimination of wet sticky raw coal on the screen of the bonding problem.

Features of High amplitude vibrating screen for high humidity material:
1. High amplitude vibrating screen for high humidity material used in coal-fired power plants, are generally made of closed structure, so that dust cannot be leaked, to respond to environmental requirements.

2. High amplitude vibrating screen for high humidity material with the sieve body without vibration and sieve plate vibration process characteristics, with higher amplitude, lower dynamic load advantages.

3. High amplitude vibrating screen for high humidity material with fewer moving parts, vibration quality is small, so its power can be reduced to a minimum. Compared with the traditional screen machine, can reduce the power more than doubled.

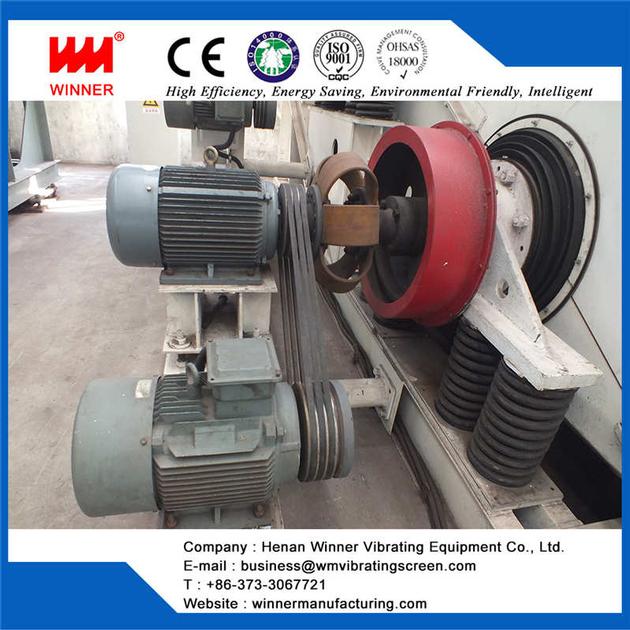

4. High amplitude vibrating screen for high humidity material is generally used 1-6 sets of motor drive, each motor starting time interval of 6-8 seconds. Sieve machine without material more conducive to observation and maintenance.

5. High amplitude vibrating screen for high humidity material with modular, standardized components, so that the overall rapid replacement, greatly reducing on-line maintenance time.

6. Exciter end and the connection parts are equipped with protective devices, safe operation.

7. Better to solve the problem of screen plugging, high screening efficiency.

Technical parameter table of High amplitude vibrating screen for high humidity material:
Model Sieve mesh(mm) Power KW Feeding size(mm) Capacity t/h Size (mm)
GFS-X-600 30-50 1*11 <300 600 2910*3464*2050
GFS-X-800 30-50 1*11 <300 800 2910*3664*2050
GFS-X-1000 30-50 2*11 <300 1000 4318*3664*3200
GFS-X-1500 30-50 2*11 <300 1500 4318*3864*3200
GFS-X-2000 30-50 3*11 <300 2000 5410*4085*4050
GFS-X-2500 30-50 3*11 <300 2500 5410*4085*4050
