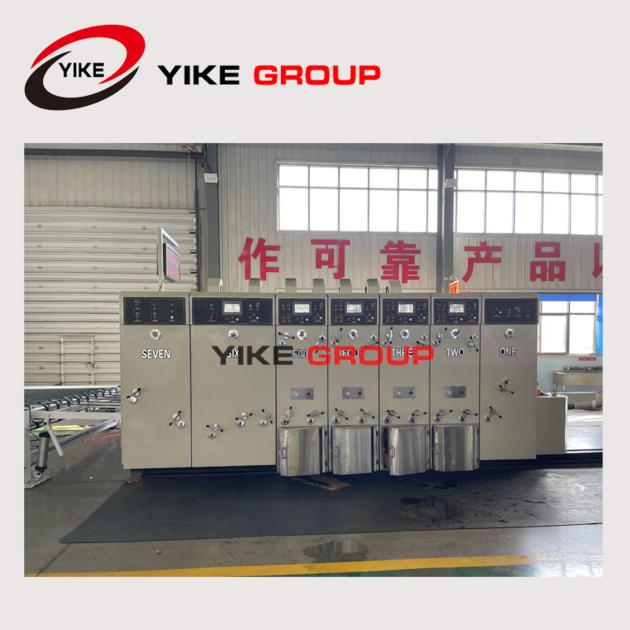

High Speed Flexo Printer Slotter Die Cutter Machine

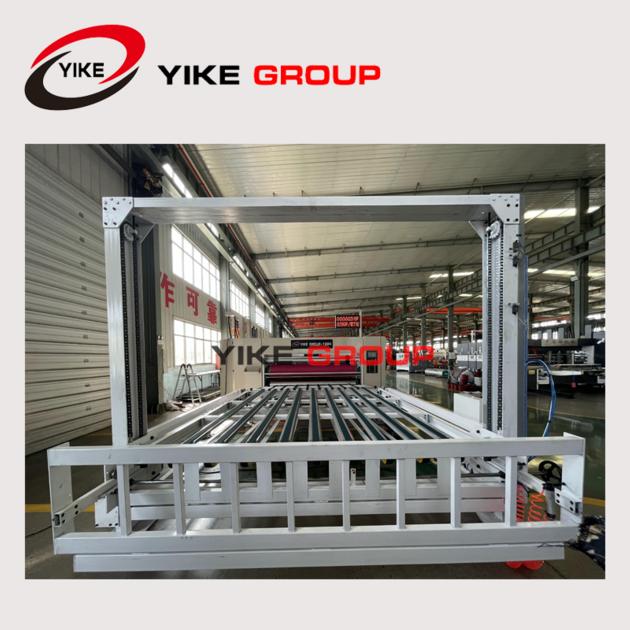

Lead-edge Feeding System
Lead-edge suction feeding system, easy operation, high accuracy，（adopts lead feeder system).
7.5KW high pressure centrifugal fans, according to the cardboard
warping degree of frequency control pressure, to ensure warp
cardboard or thin cardboard high-speed accurate transmission.
Printer Unit

►Printing Roller
With printing plate, outer diameter φ420mm
High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
Roller horizontal direction and circumferential direction with datum line, convenient for align plate
Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

Slotting Unit (Option)


Single-axle double-knife slotter, use Internal tooth structure adjutment the height of box, So that oil does not easily contaminated cartons
The first pressure line round, after preloading cardboard not easily crush
The above press round Urethane appearance package, will not damage the cardboard
The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise
Slotting phase and box height, computer and electric digital control
Preload, creasing gap adjustment adopt computer and electric digital control


 Die-cutting Unit

Rubber roller mechanical spiral commutation 40mm move about horizontal structure
Die-cutter phase, computer and electric digital control
Horizontal phase, computer and electric digital control, range ¬5mm
Rubber roller and die roller gap use computer and electric digital control
