High Quality Sanitary Butterfly Valves
| Price: | US$ 100 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Lake Forest |
Product Details
| Model No.: | AV-1 | Brand Name: | Adamant valves |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
Reference No. : AV-1MC-P

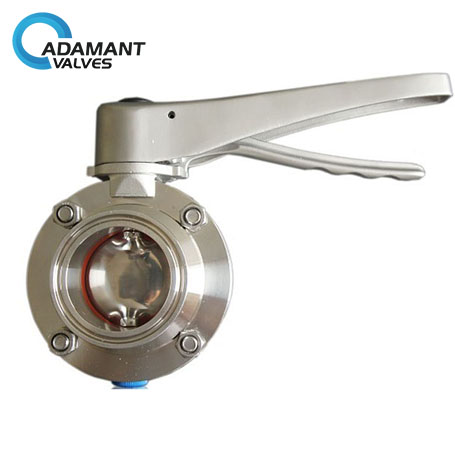

Sizes available: 1/2" to 12" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12") DN15 - DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300) Material: Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request. Max. working pressure: 145psi (10bar) for DN25/1"-DN100/4"; 116psi (8bar) for DN125/5"-DN150/6"; 73psi (5bar) for DN200/8"-DN300/12". Temperature range: 14 ~ 248®F (-10 ~ 120®C) with EPDM seat, -58 ~ 356®F (-50 ~ +180®C) with VMQ (Silicone) seat. Operation: 4-position pull handle as the product photo shows End connections: tri-clamp / tri-clamp. Surface treatment: Ra 16 ~ 32³´µin (0.4 ~ 0.8³´µm), Ra 32³´µin is the default. |
Packaging & Delivery
| Packaging: | in box |
|---|---|
| Delivery/Lead Time: | within 2 weeks |
| Production Capacity: | 1000 pieces |
Product Description
Metal seal sanitary butterfly valve seal as the smaller elasticity, generally used eccentric structure, especially with three-dimensional eccentric structure is ideal. Metal seal sanitary valve was originally used for high-pressure steam pipe, the price is more expensive, it is not easy to damage the sealing surface in operation.
|
