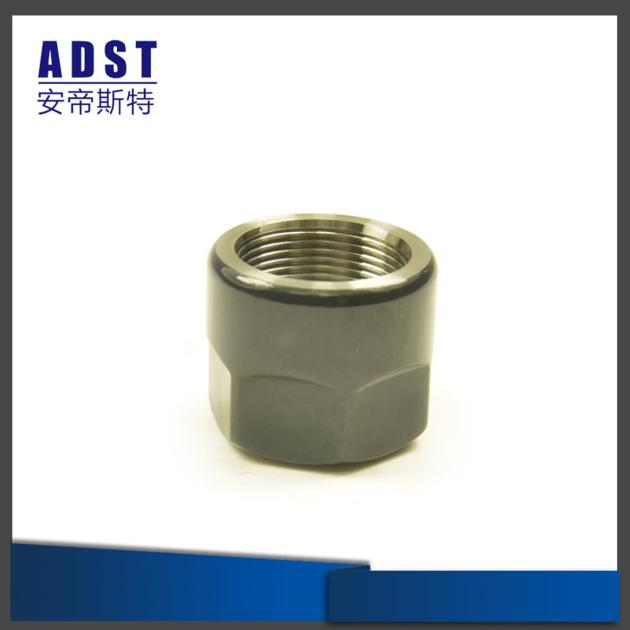

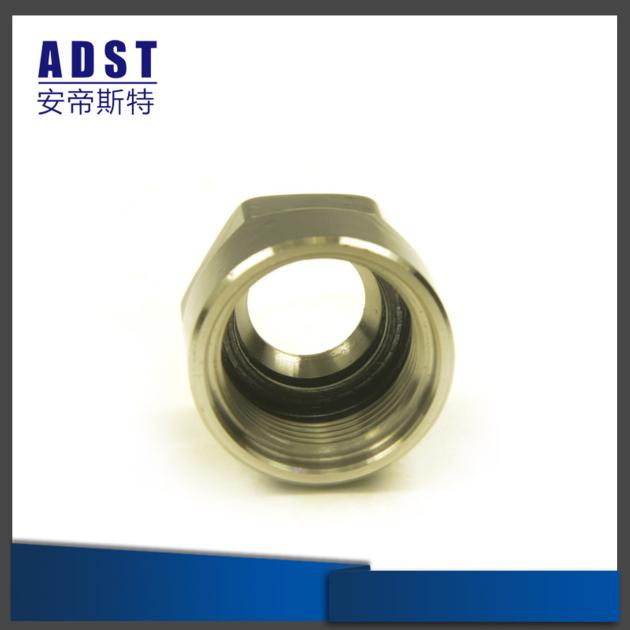

High Quality Er Nut Fastener Nail CNC Machine Tool
| Price: | US$ 3 / Kit |
|---|---|
| Minimum Order: | 10 |
| Payment Terms: | PAYPAL |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | BT-SK | Brand Name: | ADST |
|---|
| Certification: | iso |
|---|---|
| Specification: |
Assembling Collet
Insert groove of the collet into eccentric ring of the clamping nut at the mark on the bottom of the nut. Push collet in the direction of the arrow until it clicks in. Insert tool. Screw nut with collet onto tool holder. Removing Collet After the nut is unscrewed from the toolholder, press on the face of the collet while simultaneously pushing sideways on the back of the collet opposite the mark until it disengages from the clamping nut. |
Packaging & Delivery
| Packaging: | 1PCS/PLASTIC BOX |
|---|---|
| Delivery/Lead Time: | 15DAYS |
| Production Capacity: | 50000 PCS/YEAR |
Product Description

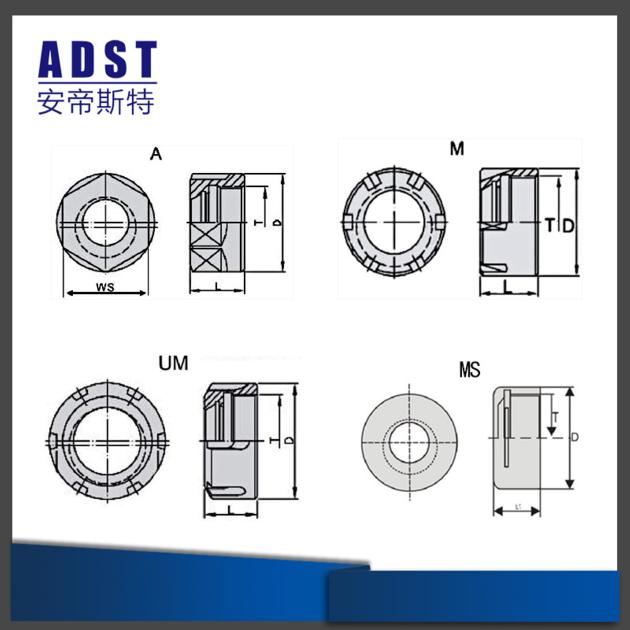

Model Specification D H Edge length Thread
ER8 A 13 12 12 M10*0.75
M 12 12
M10*0.75
UMA 13 13
M10*0.75
ER11 A 19 12.5 17 M14*0.75
A 19 13.7 17 M15*1.0
A (7.5 lengthen) 19 14 17 M14*0.75
A (9 long) 19 16 17 M14*0.75
B 19 12.5 17 M13*0.75
M 16 12
M13*0.75
M 19 12
M14*0.75
UM 17.5 12
M14*0.75
D(Square) 16 12 14 M13*0.75
ER16 A 28 19 25 M22*1.5
M 22 18
M19*1.0
B 25 20 23 M20*1.0
B (thin) 25 19 22 M19*1.0
B (thick) 28 19 25 M19*1.0
MS 22 18
M19*1.0
ER20 A 34 20.5 30 M25*1.5
A (lengthen) 34 24 30 M25*1.5
B(out diameter 27) 27 23 24 M24*1.0
B 34 21 30 M24*1.0
M 28 19
M24*1.0
UM 34 21
M25*1.5

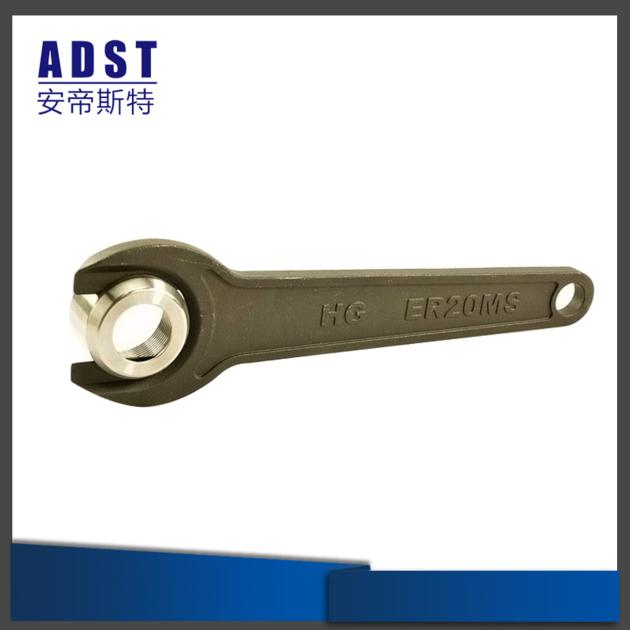

MS 28 19
M24*1.0
ER25 A 42 22 38 M32*1.5
M 35 20
M30*1.0
UM(chute) 42 22
M32*1.5
UM(Straight slot) 42 22
M32*1.5

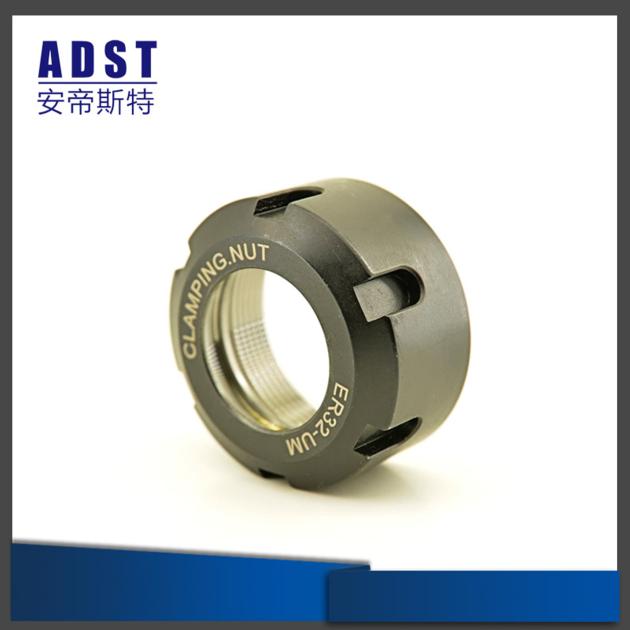

ER32 UM(Straight slot) 50 24.4
M40*1.5
UM(chute) 50 24.5
M40*1.5
ER40 UM(Straight slot) 63 28
M50*1.5
UM(chute) 63 28
M50*1.5
Product detail display:
Chacacterristic:
- with friction bearing for higher clamping force
- with sealing disk for coolant through tools
- High speed clamping nut (for high rpm)
- Externally threaded clamping nut for floating chucks
- Protection Against Corrosion With a special treatment of the surface for longer life.
- Rounded thread start prevents damaging of collets on tool changes.
|
