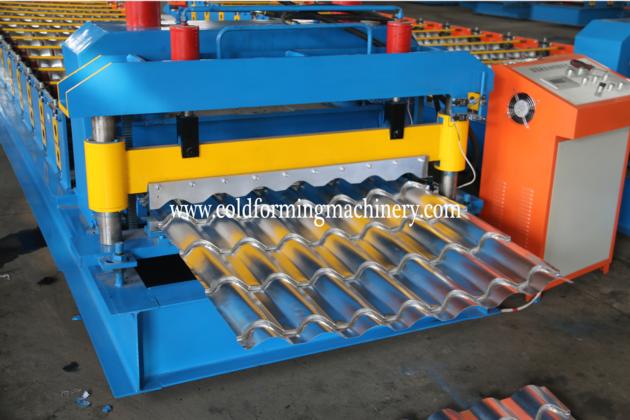

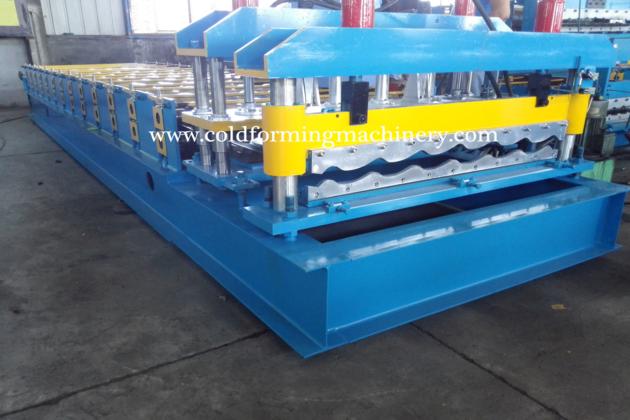

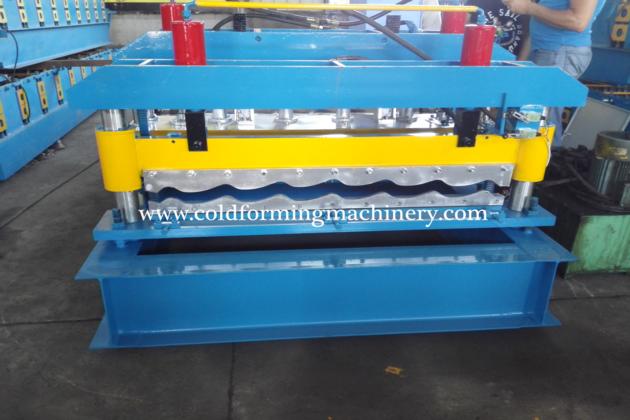

High Accuracy PPGI Glazed Tile Roll Forming Machine
| Price: | US$ 9000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | L/C, D/P and others |
| Port of Export: | Tianjin port |
Product Details
| Model No.: | new | Brand Name: | ZY |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
1.Suitable material colored steel sheet,galvanized steel sheet
2.Installation Dimension (L*W*H): 6.5*1.3*1.4m 3.Production Speed 8m-10m/ min 4.Cutting Model Hydraulic Profile Cutting 5.Length Measurement Encoder 6.Control Style PLC 7.Operation Model Button + Touch Screen 8.Total Power 8kw 9.Voltage 380V 50HZ or at buyer's request 10.Processing Thickness(mm) 0.3-0.8mm |
Packaging & Delivery
| Packaging: | nude or clients'requirement |
|---|---|
| Delivery/Lead Time: | 45 dyas |
| Production Capacity: | 30 |
Product Description

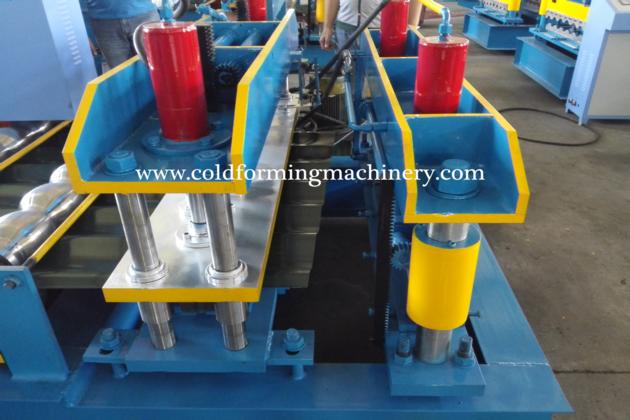

Material of main equipment:

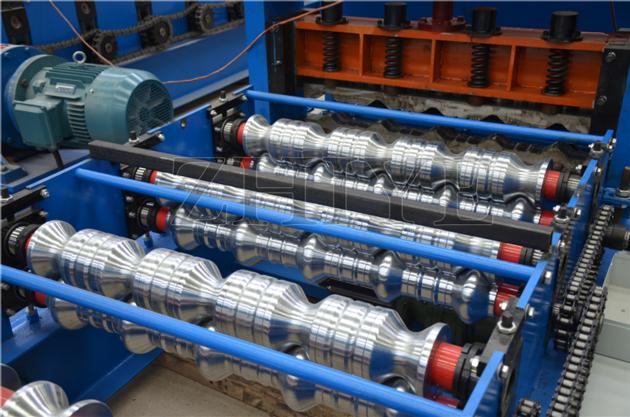

Roller material: high grade No.45 forged steel,plated hard chrome on the surface of roller
with thickness 0.05mm
Active shaft material: high grade No.45 carbon wrought steel at diameter 70mm
Utter blade: Cr12 mould steel with quenched treatment
Frequency converterPLC: computer adopt PLC
Computer operating board adopt OP320A,China
|
