Hexagonal Opening Gabion Mesh

Hexagonal Opening Gabion Mesh

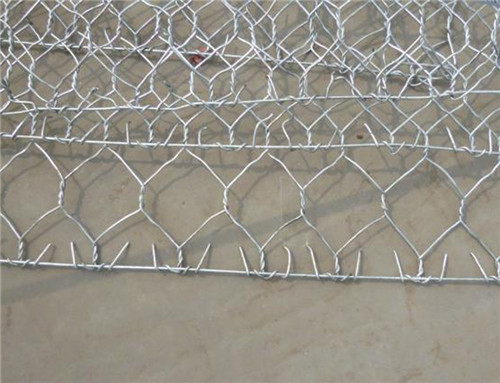

Hexagonal opening gabion mesh, also named triple twist hexagonal wire netting, double twist hexagonal wire mesh, woven by the hot dipped galvanized steel wire, galfan coating steel wire, PVC coated steel wire, after manual folding process, form gabion box at different dimention, used for river bank and scour protection, channel linings for erosion control, and embankment stability.
triple twist heavy hexagonal wire mesh is very well known in the rock fall protection,Coastal Protection,Roads and Pavements,Slope Revetment industry.
SCENE DISPLAY
triple twist hexagonal wire netting specification:
Opening
(mm) Wire Diameter (mm)(Metal Wire) Wire Diameter (PVC Coated)/ Inner/Outside(mm) Strands
60X80 φ2.0-2.8 φ2.0/3.0-2.5/3.5 3
80X100 φ2.0-3.2 φ2.0/3.0-2.8/3.8 3
80X120 φ2.0-3.2 φ2.0/3.0-2.8/3.8 3
100X120 φ2.0-3.4 φ2.0/3.0-2.8/3.8 3
100X150 φ2.0-3.4 φ2.0/3.0-2.8/3.8 3
120X150 φ2.0-4.0 φ2.0/3.0-3.0/4.0 3
hexagonal honeycomb-shaped wire mesh Gabion product specifications
Gabion net Dimensions (m) Grid Model
80X100mm
Long Wide High Galvanized or coated Galvanized or coated
Mesh wire diameter Zinc Weight Mesh wire diameter Zinc Weight
2m 1m 1m 2.7mm >245g/m 3.7mm >245g/m
3m 1m 1m Wire diameter side end Zinc Weight Diameter side end Zinc Weight
4m 1m 1m 3.4mm >265g/m 4.0mm >265g/m
6m 2m 0.5m Tie wire size 2.7mm Tie wire size 3.7mm
