Heavy-Duty Keyboard with Magnetic Stripe Card Reader

Price:	Contact for latest price
Minimum Order:
Payment Terms:	T/T
Port of Export:

Product Details

Model No.:	KB-6868-MSR	Brand Name:	DIGIMORE

Certification:
Specification:	KEYBOARD SPECIFICATION Key Number : 104/105/ 109 Keys (US/ EU/JP) Key Switch : Membrane with 20 million life cycle time Key Force/ Traveling Distance : 50 +/- 7 gm; 4 +/- 0.5 mm Key Caps : Ergonomic keycap design with 5 different height Input Power : 5 VDC, 100mA Interface : USB 1.1 version; (PS/2 mini-DIN, optional) Led Indicator : 4 LEDs, Num Lock, Caps Lock, Scroll Lock, MSR Read/ Write MAGNETIC STRIPE CARD READER SPECIFICATION Number of Tracks : Track 1 & 2 or Track 1, 2 & 3 Compatibility : ISO 7810 and 7811-1 through -6 cards/ Reads AAMVA driver license cards Communications : Decoded track data sent through keyboard communication cable Output Data Formatting : Default card data output format or customized data output format is programmable through PC configuration utility. (please refer to user’s manual) Operating Life : 1,000,000 card swipes Card Speed Range : 3 to 60 IPS (inches per second) Audio Beeper : Indicates error free card data reading Options - Encryption key : Also provide key Injection, Production Injection and TG3 Key Injection OTHERS Environment : Operating Tem. : 0 ~ 50 degrees Celsius (10 ~ 95% RH, 25 degree Celsius) Storage Tem. : -10 ~ 65 degree Celsius (5% ~ 90% RH, 25 degree Celsius) Physical Dimension : 450.17 (L) x 171 (W) x 37.29 (H) Box/ Weight : 500 (L) x 220 (W) x 55 (H) mm / 1.3 Kg (G.W.) Options : Antimicrobial ABS material; compliance with JIS Z2801 standard

Certification:

Specification:

KEYBOARD SPECIFICATION
Key Number : 104/105/ 109 Keys (US/ EU/JP)
Key Switch : Membrane with 20 million life cycle time
Key Force/ Traveling Distance : 50 +/- 7 gm; 4 +/- 0.5 mm
Key Caps : Ergonomic keycap design with 5 different height
Input Power : 5 VDC, 100mA
Interface : USB 1.1 version; (PS/2 mini-DIN, optional)
Led Indicator : 4 LEDs, Num Lock, Caps Lock, Scroll Lock, MSR Read/ Write

MAGNETIC STRIPE CARD READER SPECIFICATION
Number of Tracks : Track 1 & 2 or Track 1, 2 & 3
Compatibility : ISO 7810 and 7811-1 through -6 cards/ Reads AAMVA driver license cards
Communications : Decoded track data sent through keyboard communication cable
Output Data Formatting : Default card data output format or customized data output format is programmable through PC configuration utility. (please refer to user’s manual)
Operating Life : 1,000,000 card swipes
Card Speed Range : 3 to 60 IPS (inches per second)
Audio Beeper : Indicates error free card data reading
Options - Encryption key : Also provide key Injection, Production Injection and TG3 Key Injection

OTHERS
Environment : Operating Tem. : 0 ~ 50 degrees Celsius (10 ~ 95% RH, 25 degree Celsius)
Storage Tem. : -10 ~ 65 degree Celsius (5% ~ 90% RH, 25 degree Celsius)
Physical Dimension : 450.17 (L) x 171 (W) x 37.29 (H)
Box/ Weight : 500 (L) x 220 (W) x 55 (H) mm / 1.3 Kg (G.W.)
Options : Antimicrobial ABS material; compliance with JIS Z2801 standard

Packaging & Delivery

Packaging:	5 pcs/ctn; 1.39 cuft/ctn; 8.5 kgs (G.W.); Carton Size : 51.5 x 30.5 x 25 cm
Delivery/Lead Time:	35~45 days
Production Capacity:

Product Description

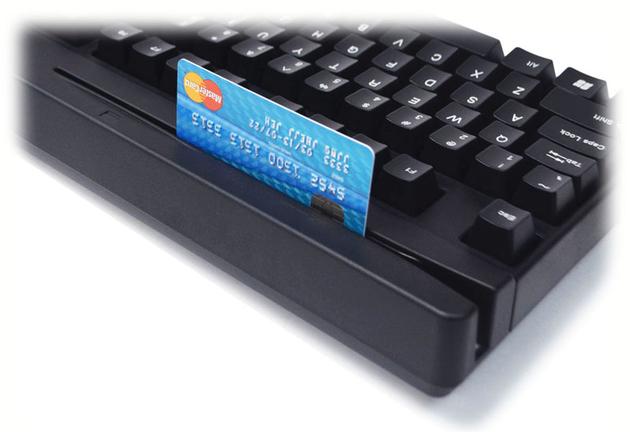

Digimore POS Keyboard, KB-6868-MSR, features an enhanced keyboard layout with a built-in 3 tracks magnetic stripe reader for use in banking Point of Sale application and secure Credit Cards. This full-sized keyboard is designed for any desktop, kiosk, office, or warehouse. Antimicrobial ABS material (option) is also available upon requested.

Heavy-Duty Keyboard with Magnetic Stripe Card Reader

Heavy Duty Keyboard With Magnetic Stripe
