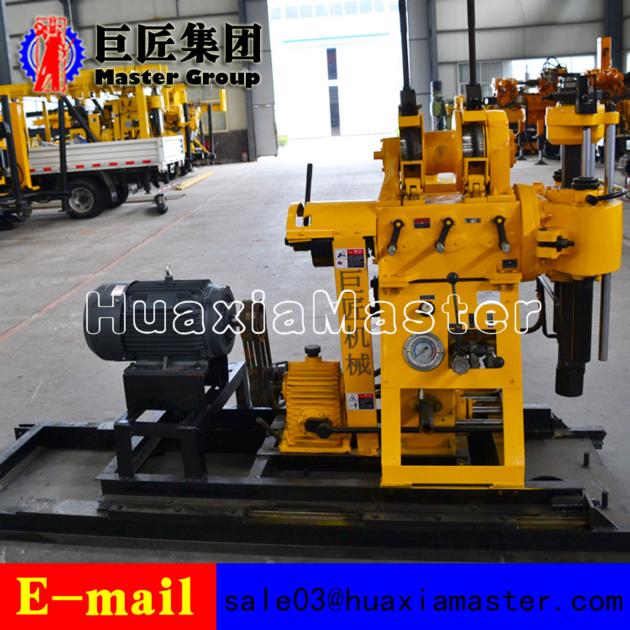

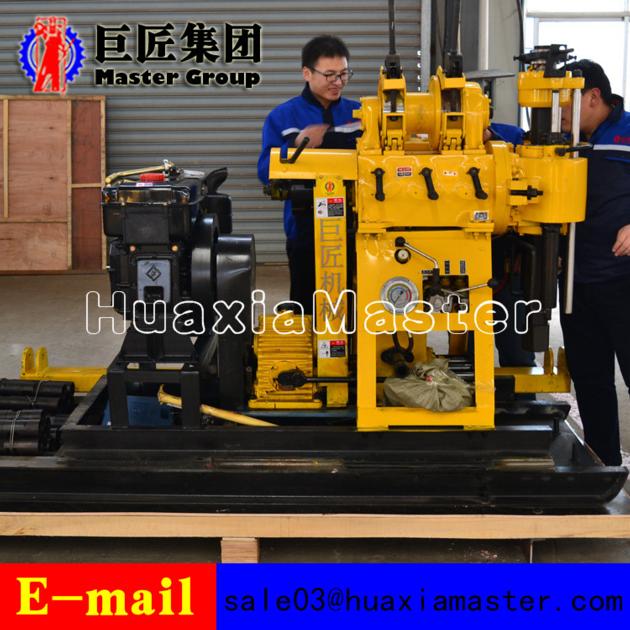

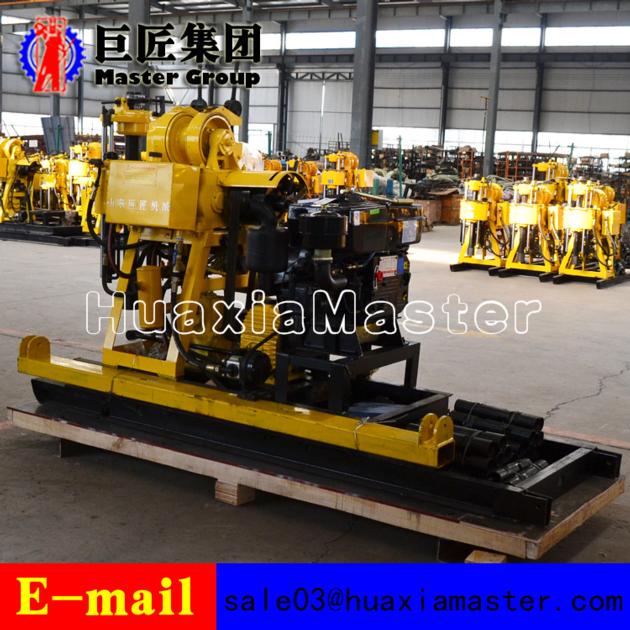

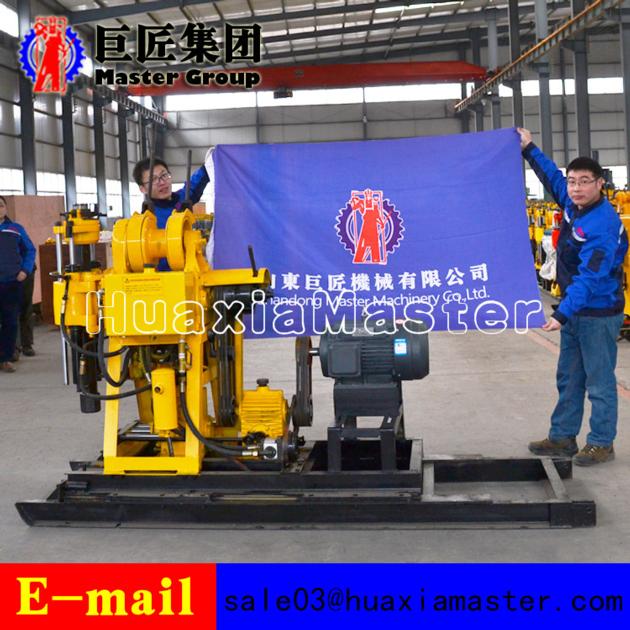

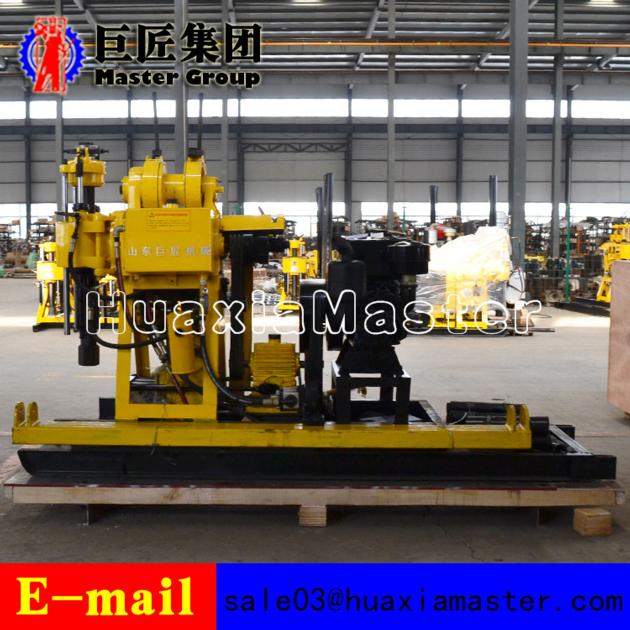

HZ-200YY Hydraulic Water Well Drilling Rig For Sale
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | hz-200yy | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
Maximum open hole diameter 300mm End hole diameter 75mm Drilling pipe diameter 50mm Drilling angle 90® Drilling rig weight (without power) 975kg triangular belt B950 x 4; B1700 x 3 Active move distance 300mm Power diesel engine 20hp electric motor 15kw Spindle Spindle rotating speed 64/128/287/557r/min Spindle stroke 450mm Windlass Maximum lifting power of a single rope 2400kg Lifting speed of a single rope 0.41/0.82/1.64m/s Wire rope diameter 13mm Drum capability 35m Band-type break diameter 260mm Band-type break belt width 70mm Mud pump Model horizontal single-urn twin-action Displacement diesel engine 170l/min electric motor 150l/min Maximum pressure 3mpa Work pressure 1.5mpa Water inlet pipe diameter 40mm Water outlet pipe diameter 30mm Triangular belt B1728mm |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords:hydraulic well drilling machine, hydraulic drilling machine portable water, water borehole drilling machine 1.The applications of HZ-200YY drilling rig
HZ-200YY drilling rig is mainly used for water well,field irrigation well,engineering water well,precipitation well and so on;geological general investigation and exploration,road and tall building foundation exploration, holes in concrete structure,river levees.
2.The features of HZ-200YY drilling rig
The highest speed can reach 1045r/min with 5 gears, improved drill efficiency
Adopted 53 x 59 drilling rod, high rigidity and strong delivery torque
Equipped with national patent technology---taper clutch, make the machine easy to operate and free maintenance.
Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.
