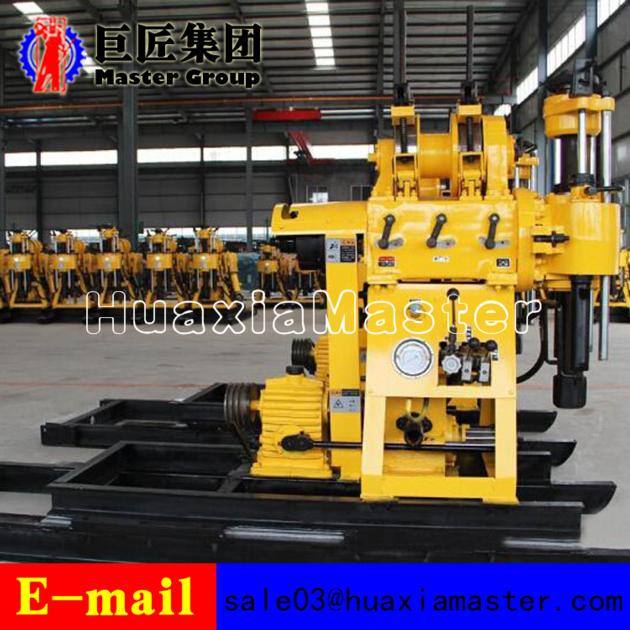

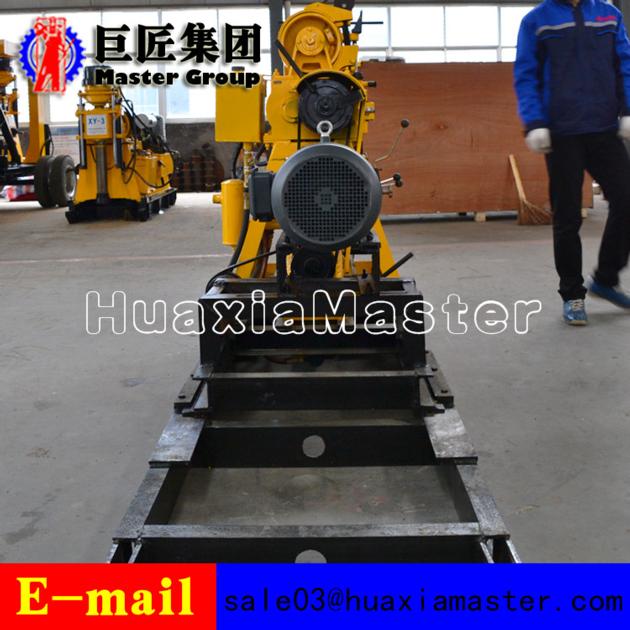

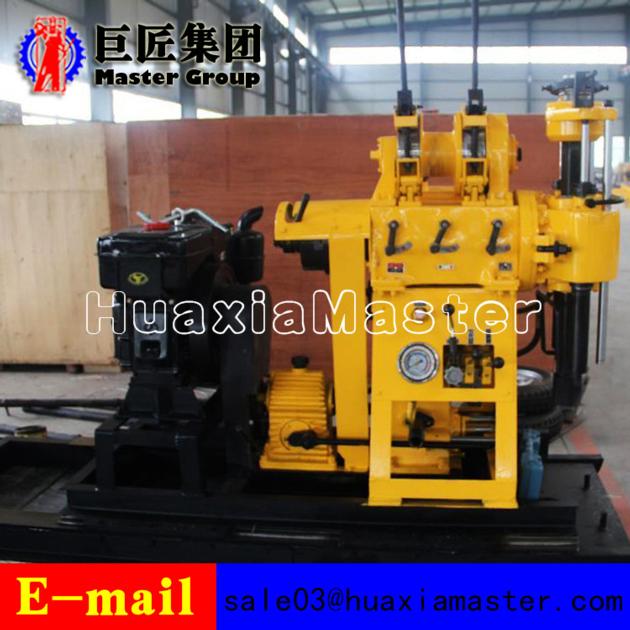

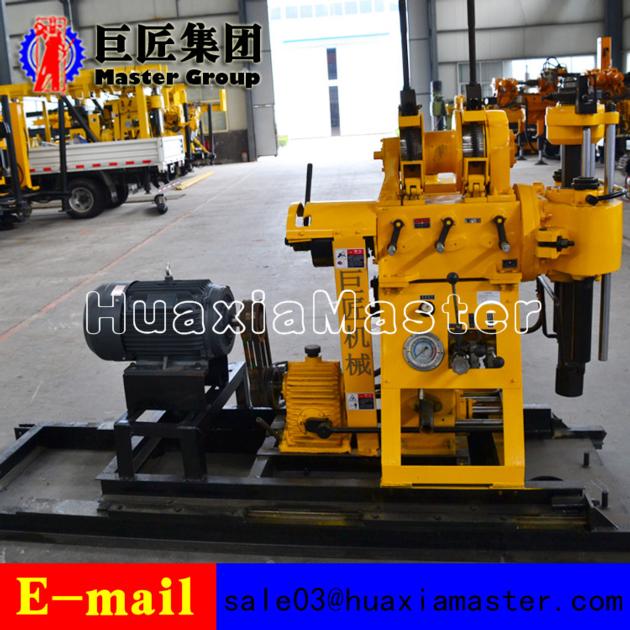

HZ-200YY Hydraulic Rotary Drilling Rig
| Price: | US$ 6000 |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | hz-200yy | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
Max open hole diameter 300mm
End hole diameter 75mm Drill rod diameter 60mm Drilling angle 90 Drill weight (without power) 975kg Triangle conveyer belt B950 * 4; B1700 * 3 Main machine moving distance 300mm Power Diesel engine 22HP Electric motor 15kw Spindle Spindle speed 64/128/287/557r/min Spindle stroke 450mm Hoist Max. lifting capacity 2400kg Single line lifting speed 0.41/0.82/1.64 m/s Wire rope diameter 13mm Wire rope length 35m Reel diameter 140mm Hug floodgate diameter 260mm Hug floodgate belt width 70mm Mud pump Type Horizontal single-urn twin-action Displacement Diesel engine 170L/min Electric motor 150L/min Maximum pressure 3mpa Work pressure 1.5mpa Inlet pipe diameter 40mm Outlet pipe diameter 30mm Triangle conveyer belt B1728mm |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: portable rock drilling machine, bore well drilling machine, water well drilling rig machine
HZ-200YY drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees, civil water wells and ground temperature central air-conditioner.
1. Features of HZ-200YY hydraulic drilling rig
the highest speed can reach 1045r/min with 5 gears, which improves drilling efficiency
adopted 53x59 drilling rod, which has high rigidity and strong delivery torque.
equipped with national patent technology-taper clutch, made the machine easy to operate and free of maintenance.
using large module planetary gear and adding supporting frame, which highly increased hoisting and braking ability of the winch.
vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.
