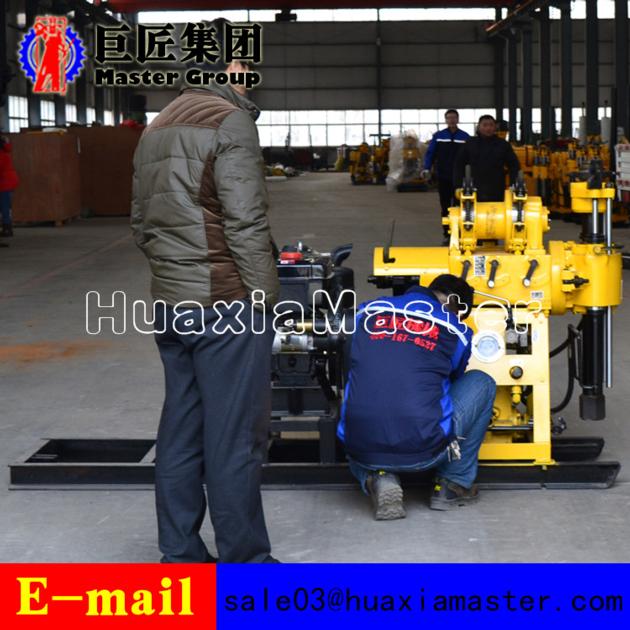

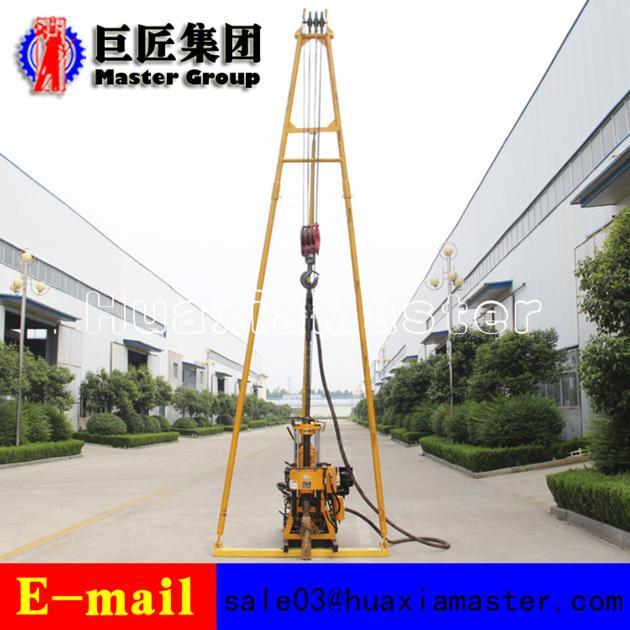

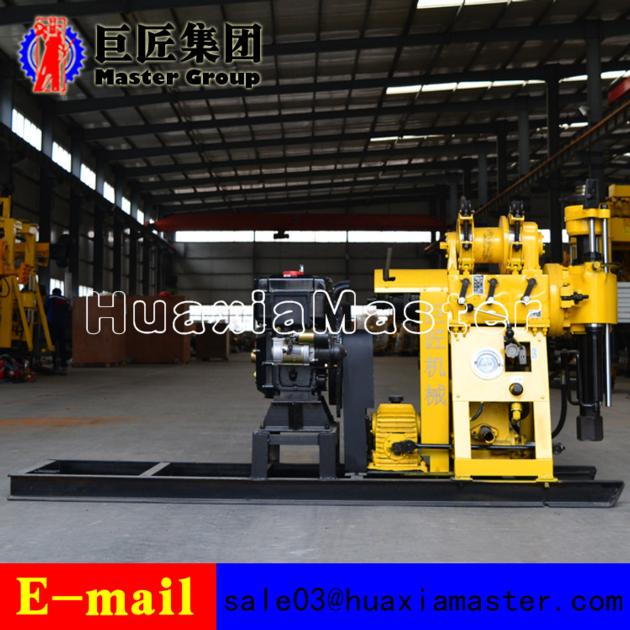

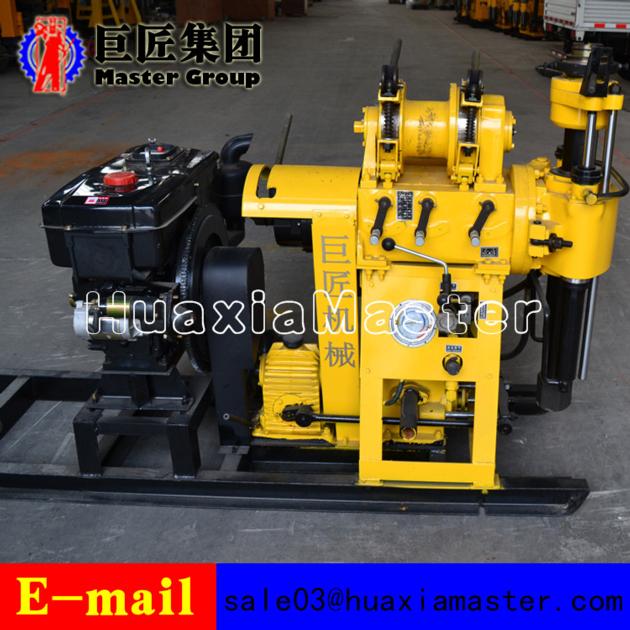

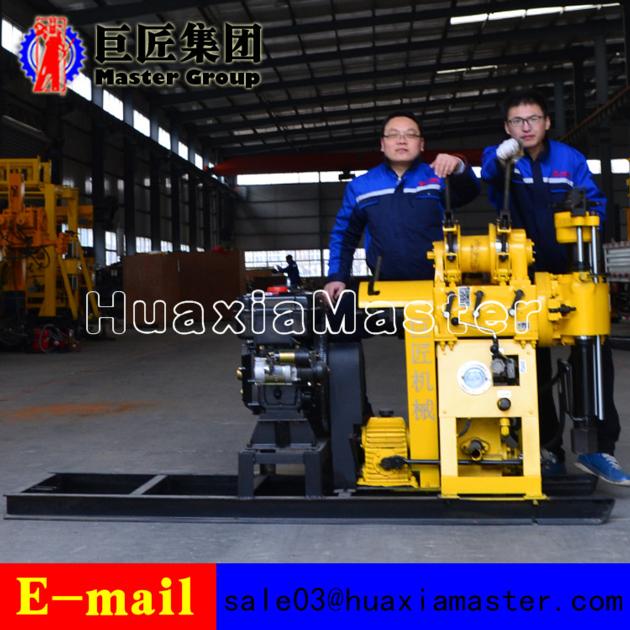

HZ-200Y Hydraulic Water Well Drilling Rig For Sale
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | hz-200y | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
HZ-200Y drilling rig Drilling depth 200m Maximum open hole diameter 300mm End hole diameter 75mm Drill pipe diameter 50mm Drilling angle 90® Drilling rig weight (excluding power) 1100kg Triangular belt B950×4 B1700×3 Active move range 300mm Power Diesel engine 20HP Electric motor 15kw Spindle Spindle rotating speed 64 128 287 557 r/min Spindle stroke 450mm Windlass Maximum lifting power of a single rope 2400kg Maximum lifting speed of a single rope 0.41/0.82 /1.64m/s Wirerope diameter 13mm Drum capacity 35m Band type break diameter 260mm Band type break belt width 70mm Mud pump Model horizontal single-urn twin-action Displacement diesel engine 170L/min electric motor 150L/min Maximum pressure 3mpa Work pressure 1.5mpa Water inlet pipe diameter 40mm Water outlet pipe diameter 30mm Triangular belt B1728mm Mud pump Type CBT—F—314 Triangular belt B1100× 1 |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords:drilling machine water, hydraulic drilling machine, hydraulic drilling machine portable water 1.The applications of HZ-200Y hydraulic water well drilling rig
Made in China water well,field irrigation well, engineering water well,precipitation well and so on; geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting.
2.The features of HZ-200Y hydraulic water well drilling rig
53 x 59 drilling rod adopted, high rigidity and strong delivery torque
The machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance.
For the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
Vertical spidle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
We are the first one to equip mud pump with the flow 160L/min in China .So the features will achieve cost saving, compact structure and portable.
